Overhaul Engine Rebuilding Kit 04-06 Ford Expedition F150 F250 5.4 TRITON

Overhaul Engine Rebuilding Kit 04-06 Ford Expedition F150 F250 5.4 TRITON.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 5L3Z-6268-A, XL3Z-6306-AA, F85Z-6K255-AA, 4L3Z-6M256-AA,
F85Z-6M274-AA, 2L1Z-6K297-AA, 9L3Z-6600-A, 4C3Z-8501-B

Overhaul Engine Rebuilding Kit 04-06 Ford Expedition F150 F250 5.4 TRITON.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
2005-2006 FORD EXPEDITION 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE "5" -
TRITON
2006 FORD F-150 5.4L 330CID V8 FLEX SOHC, (24 VALVE), VIN CODE "V" -
TRITON
2004-2006 FORD F-150 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE "5" -
TRITON
2005-2006 FORD F-250 SUPER DUTY 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE
"5" - TRITON
2005-2006 FORD F-350 SUPER DUTY 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE
"5" - TRITON
2006 LINCOLN MARK LT 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE "5" -
TRITON
2005-2006 LINCOLN NAVIGATOR 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE "5"
- TRITON

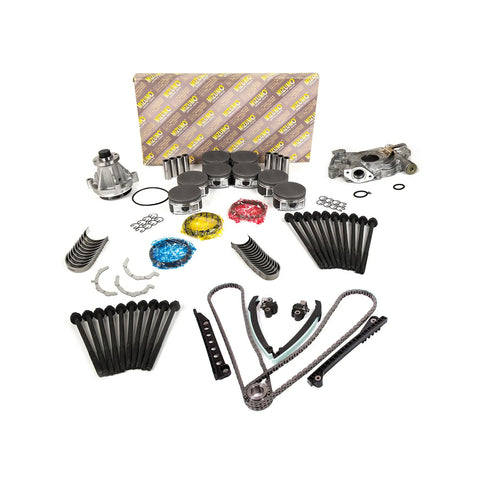

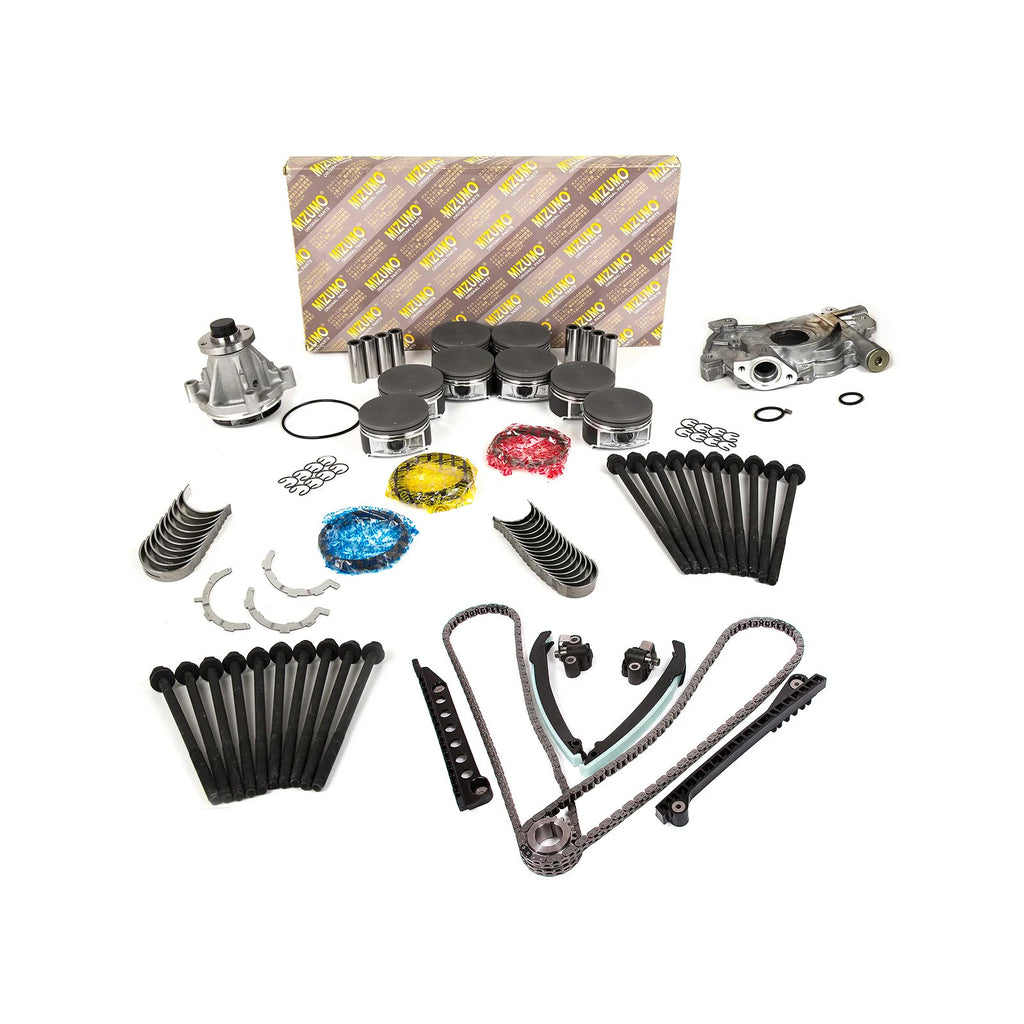

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
20 Cylinder Head Bolts
8 Pistons with Complete Ring Set (see options above for available sizes)
Standard Bore Diameter: 90.20mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
8 Piston Wrist Pins
16 Cir Clips
Main Bearing Set (see options above for available sizes)
Rod Bearing Set (see options above for available sizes)
Thrust Washer
2 Timing Chain (122 links)
1 Double Row Crank Sprocket (21 teeth)
1 Left Tensioner
1 Right Tensioner
1 Left Tensioner Arm
1 Right Tensioner Arm
1 Left Guide Rail
1 Right Guide Rail
2 Cam Gears / Cam Phasers - are not included
1 High Pressue Oil Pump (24.00mm = 15/16" inlet)
1 Water Pump w/ Gasket (M30 small hub)

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS21200](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS21200&LH_TitleDesc=1&submit=)| MM| 90.200| 90.450|
90.700| 90.950| 91.200
IN| 3.551| 3.561| 3.571| 3.581| 3.591
Piston Ring Part| Piston Information
[RS6046](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS6046&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS21200
D.jpg)
Specifications| MM| IN
Cylinder| 8
Bore| 90.200| 3.551
Comp| 30.700| 1.209
| Dist.| 1|
---|---|---
2|
3|
|
---
|
---
Length| 52.000| 2.047
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
Anodized Head| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
13.000| 0.512
Pin Length| 62.000| 2.441
Pin Diameter| 22.000| 0.866
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
