Motorcycle Turbo For Snowmobiles Quads Rhino ATV 100hp 190cc Turbo RHB31 VZ21 compatible for Mini Turbo

  • Sale
  • Regular price £175.00
Tax included. Shipping calculated at checkout.

 More payment options


*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Introduction:

Looking to boost your car's horsepower? Is your car's original turbocharger
not performing well or need replacing? Maxpeedingrods stocks all the best OEM-
quality turbochargers and turbo parts to give your car the power, performance,
and reliability you deserve. Maxpeedingrods aftermarket replacement turbos
provide the perfect solution by delivering a high-quality turbo at a budget-
friendly price.

Application:

Compatible For Small engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm
100HP
Compatible For Suzuki ALTO Works with YA1, F6AT Engine
Compatible for Suzuki ALTO Works with 21R707-0011-G1 Engine

Turbo Model:

RHB31

Turbo Part Number & OEM Number:

VZ21,13900-62D51, 1390062D51, 1390062D50, 13900-62D50,VE110069

Specification:

Engine :YA1, F6AT, compatible For Isuzu 4TNA,21R707-0011-G1 Engine
Cooling Type:Water + Oil
Bearing Type: Journal Bearing / Floating Bearing
Thrust Bearings: 360 Degrees
Horse Power: 23-100HP
Internal-wastegate :15psi
fit for :500 cc to about 1000cc

Compressor wheel
Major Diameter(outlet exducer):37.1mm
Compressor Inducer :24.2 mm

Trim(comp):42.5
Turbine wheel
Major Diameter(inlet inducer):35mm
Turbine Exducer Diameter:26.7mm
Trim(exhaust):58.2
Comp A/R:0.7

Condition: New
Warranty: one year warranty for any manufacturing defect

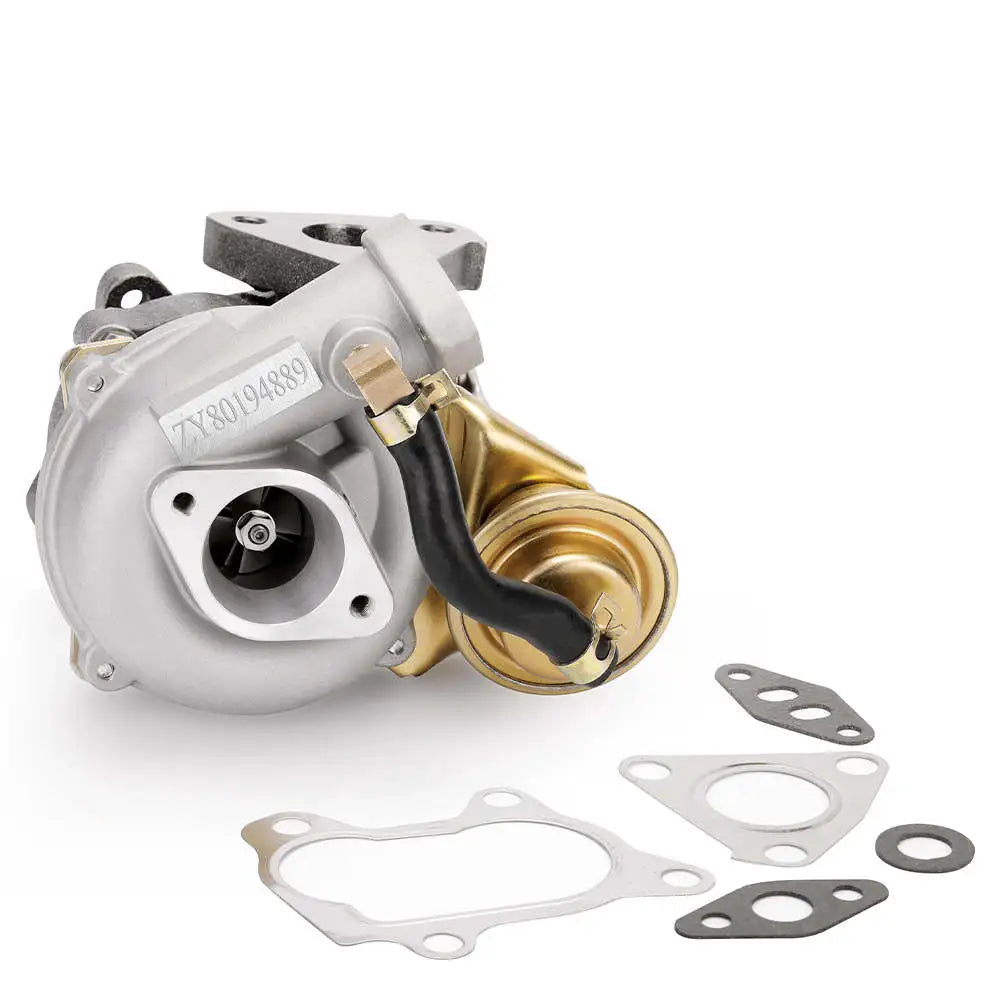

Accessories: You will receive the parts exactly as shown in the picture above

Features

1\. Turbine housing:Ductile iron QT450-10 shell with high-temperature
resistance up to 700 degrees Celsius
2\. Steel Turbine Wheel:Made from the special K418 alloy to achieve high
oxidation resistance and stability under high temperatures up to 900 degrees
Celsius
3\. Compressor housing:ZL104 aluminum with lightweight
4\. Compressor wheel/blades:Cast aluminium with good gas tightness and
corrosion resistance
5\. All necessary gaskets included for ease of installation
6\. 100% balancing Test by TURBOTECHNICS VSR3
This Turbocharger you will receive has been balanced using the VSR machine
technology. Through the comprehensive and high-precision static and dynamic
balance detection technology, and reliability
7\. G3-min-Flow VNT Turbo testing
The G3-min-Flow (Air) was designed and built in the UK by 3 Test Engineers
whom have a combined total of 60 years in the Industry. the machine can
accurately measure the flow through the VGT turbo and verify that it is set to
the OEM factory setting. easily adjust the critical minimum-flow stop to the
correct setting before the turbocharger leaves workshop
8\. Advanced Actuator Tester/Programmer:
electronic actuator diagnostic with G3-rea-master can rewrite memory in
electronic actuators and also allows to modify operation range of the actuator
arm, that includes changing open and close positions of the working angle

Note:

Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the correct one for your engine. If you need assistance finding the correct turbo for your car, please feel free to contact us.
Professional installation is highly recommended (No Instructions are Included)
