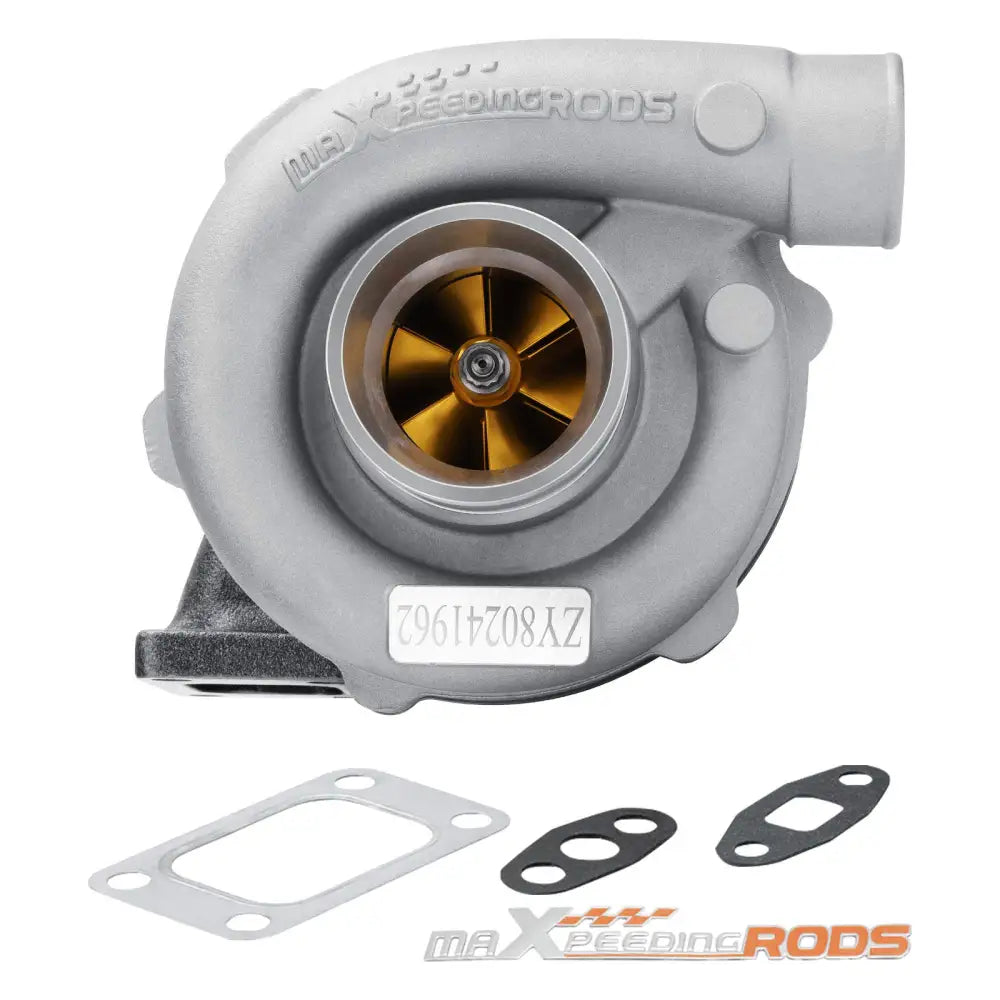

Application
Suitable for daily street use and junior track use.
Compatible For 1.5L to 2.5L any 4/6 cylinder engine
Specification
Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: Without Wastegate
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Turbine Trim: 74.2
Turbine A/R: 0.57
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet: 45mm/87mm
Compressor outlet: 42mm(inside diameter)、52mm(Outer diameter)
Compressor inlet: 68 mm(inside diameter)、77mm(Outer diameter)
Oil Inlet: M121.25
Oil Outlet:2M81.25
Hosepower: Up to 400+HP
Condition: New
Package Size:26x 24x 23 cm
Package Weight: 7250g
Feature
Product Material
1\. Turbine housing :Silicon-Molybdenum - temperature resistant up to 850℃
2\. Steel Turbine Wheel:K419 alloy - high oxidation stability and resistance
up to 1000℃
3\. Compressor housing:ZL104 aluminum with lightweight
4\. Compressor wheel/blades:Aluminum blades-precision machining forging and
light weight design
Product Performance
1\. Cost-effective turbo increase 20-40% power for your car
2\. Excellent high temperature resistance,high efficiency and durability
3\. Rich experience in turbo production and own factory
4\. High-Speed oil seal ring and Precision clearance
Product Certification
TÜV ISO 9001 CERTIFIED
Technology Advantage:
1\. 100% balancing Test by TURBOTECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Forged precision-machined billet aluminum compressor wheels with better boost
response
Note
Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Ensure exhaust outlet are well sealed by welding
Professional installation is highly recommended.
This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Application
Suitable for daily street use and junior track use.
Compatible For 1.5L to 2.5L any 4/6 cylinder engine
Specification
Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: Without Wastegate
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Turbine Trim: 74.2
Turbine A/R: 0.57
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet: 45mm/87mm
Compressor outlet: 42mm(inside diameter)、52mm(Outer diameter)
Compressor inlet: 68 mm(inside diameter)、77mm(Outer diameter)
Oil Inlet: M121.25
Oil Outlet:2M81.25
Hosepower: Up to 400+HP
Condition: New
Package Size:26x 24x 23 cm
Package Weight: 7250g
Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: Without Wastegate
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Turbine Trim: 74.2
Turbine A/R: 0.57
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet: 45mm/87mm
Compressor outlet: 42mm(inside diameter)、52mm(Outer diameter)
Compressor inlet: 68 mm(inside diameter)、77mm(Outer diameter)
Oil Inlet: M121.25
Oil Outlet:2M81.25
Hosepower: Up to 400+HP
Oil Inlet: M121.25
Oil Outlet:2M81.25
Hosepower: Up to 400+HP
Condition: New
Package Size:26x 24x 23 cm
Package Weight: 7250g
Feature
Product Material
1\. Turbine housing :Silicon-Molybdenum - temperature resistant up to 850℃
2\. Steel Turbine Wheel:K419 alloy - high oxidation stability and resistance
up to 1000℃
3\. Compressor housing:ZL104 aluminum with lightweight
4\. Compressor wheel/blades:Aluminum blades-precision machining forging and
light weight design
Product Performance
1\. Cost-effective turbo increase 20-40% power for your car
2\. Excellent high temperature resistance,high efficiency and durability
3\. Rich experience in turbo production and own factory
4\. High-Speed oil seal ring and Precision clearance
Product Certification
TÜV ISO 9001 CERTIFIED
Technology Advantage:
1\. 100% balancing Test by TURBOTECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Product Material
1\. Turbine housing :Silicon-Molybdenum - temperature resistant up to 850℃
2\. Steel Turbine Wheel:K419 alloy - high oxidation stability and resistance
up to 1000℃
3\. Compressor housing:ZL104 aluminum with lightweight
4\. Compressor wheel/blades:Aluminum blades-precision machining forging and
light weight design
Product Performance
1\. Cost-effective turbo increase 20-40% power for your car
2\. Excellent high temperature resistance,high efficiency and durability
3\. Rich experience in turbo production and own factory
4\. High-Speed oil seal ring and Precision clearance
Product Certification
TÜV ISO 9001 CERTIFIED
Technology Advantage:
1\. 100% balancing Test by TURBOTECHNICS VSR3
2\. G3-min-Flow VNT Turbo testing
3\. Advanced Actuator Tester/Programmer
Forged precision-machined billet aluminum compressor wheels with better boost
response
Note
Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Ensure exhaust outlet are well sealed by welding
Professional installation is highly recommended.
This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Ensure exhaust outlet are well sealed by welding
Professional installation is highly recommended.
This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
