Item Specifications
Performance Voltage DC 12V
Rated line pull(single line) 12000LB(5443KG)
Motor 6HP(4.5KW)Series Wound
Gear train 3 Stage Planetary
Gear reduction ratio 265:1
Free Spooling Clutch Sliding ring gear
Wire Rope ?9.5mm ×24m
Drum Diameter/Length ?64mm x224mm
Braking action Automatic in the drum
Fairlead 4-way Roller
Duty Cycle Intermittent
Mounting bolt pattern 114mm*254mm
Remote Control Cable 3m
Wireless Remote Control Optional
Dimensions 530mmX160mmX216mm
G.W/N.W 40/38kg(1PCS)
Feature
12,000LB( single line rated pull )Electric Winch
Product Specifics
Color: Black
Manufacturer Part Number: E11656501CP
Placement on Vehicle: Left,Right,Front,Rear
Manufacturer Warranty: 5 Years
Voltage: 12V
Fitment Type: Direct Replacement
Rated Line Pull: 12000LB(5443KG)
Part Type: Tow Hook
Type: Electric Winch
Motor: 6HP(4.5KW)Series Wound
Modified Item: Yes
Surface Finish: Polished
Mounting Hardware Included: Yes
Gear train: 3 Stage Planetary
Towing Class: 5
Trailer Hitch Type: Front Mount Hitch
Tow Ball Size: Fixed Ball Mount
Receiver Size: 2 in
Material: Stainless Steel
Ball Mount: Fixed Ball Mount
Custom Bundle: No

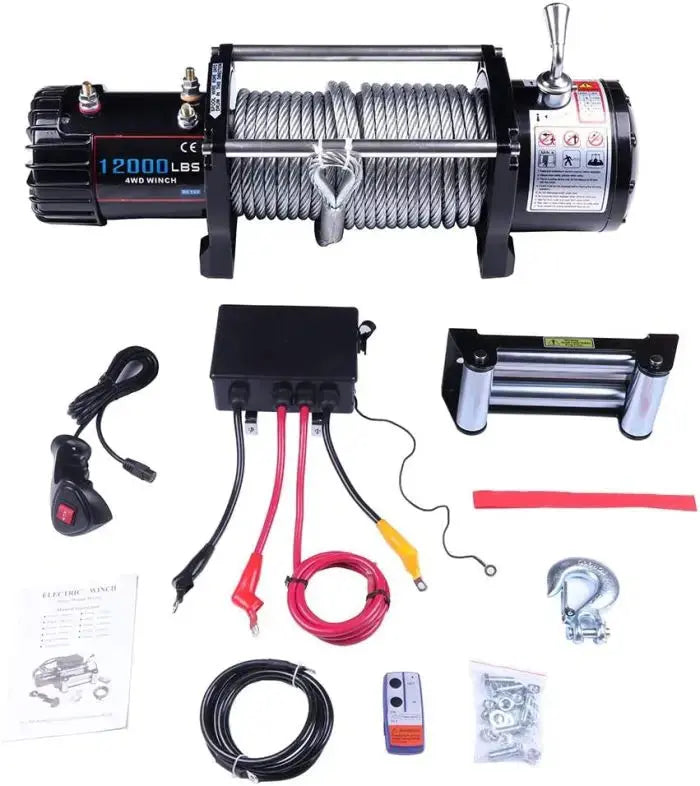

Includes
1 x 12,000lb Winch
1 x Wireless Remote Controler
1 x Hand Remote Controler
1 x Solenoid Control Box
1 x 4 Way Roller Fairlead
1 x Negative Wire
1 x Hook
1 x Users Manual
Mounting Screws are Included
Include accessories
12000lb Winch
Wireless Remote Controller
Hand Remote Controller
Control Box Assembly
4 Way Roller Fairlead
Negative Wire
Hook
users Manual
