Application
Compatible for Volkswagen Compatible for Audi 1.4 TSI/TFSI EA211 Engine
Fitment:
Compatible for Audi A3 8p1 8P7 8pa 1.4 TFSI
compatible for Audi A4 8W2, B9; 8W5, B9 1.4 TFSI
compatible for Skoda Octavia 1Z5 1.4 TSI
compatible for Skoda Octavia II 1Z3 1.4 TSI
compatible for Skoda Rapid NH3 1.4 TSI
compatible for Skoda Superb 3T4, 3T5, 3V3, 3V5 1.4 TSI
compatible for Volkswagen Golf mk5, mk6, mk7 1.4 TSI
compatible for Volkswagen Jetta mk4, mk3 1.4 TSI
compatible for Volkswagen Passat 3G5, 3G2, 3C5, 3C2, 365, 362 1.4 TSI
Specification
Performance Con Rods
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set

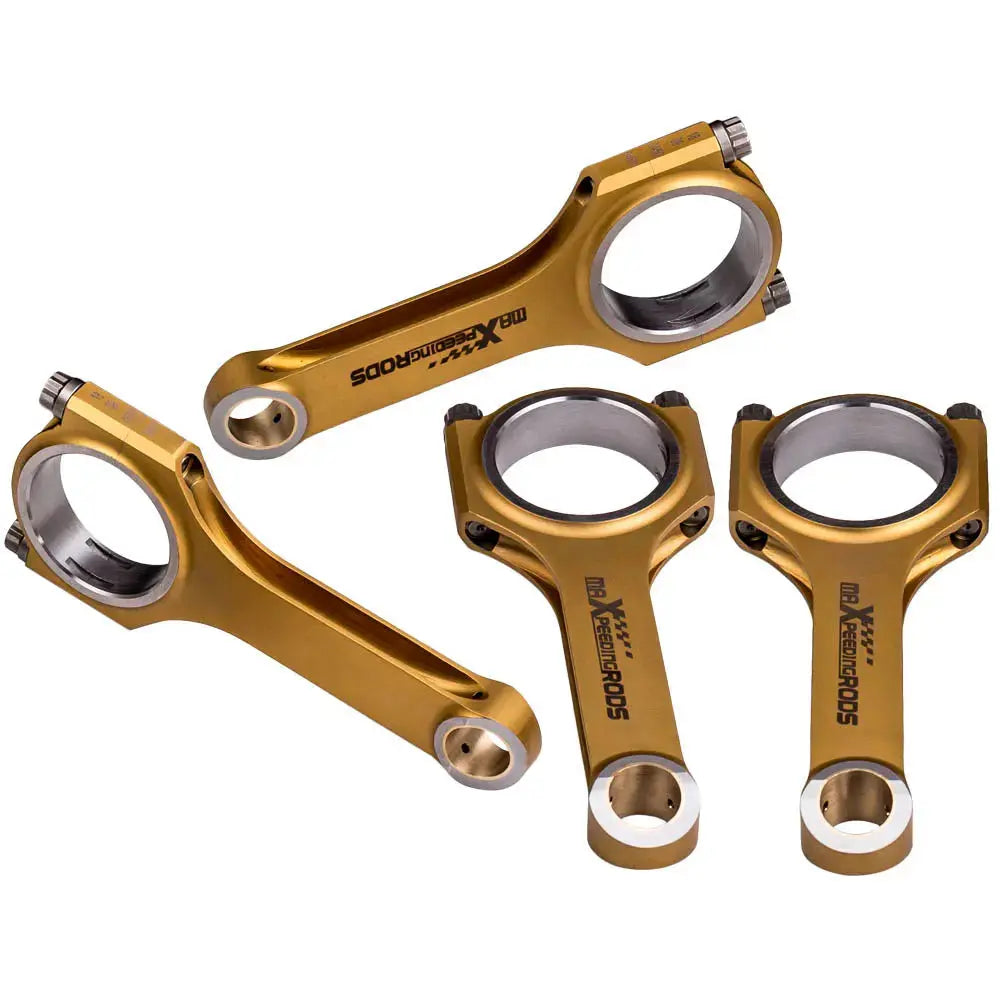

Quantity: 4 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 5/16" bolts (Note Extra cost for upgrading
to ARP L19 bolts)
Material: Titanizing 4340 EN24 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set
Color: Golden Color
Accessories: You will get exactly as shown in the picture above
Condition: New
Warranty: one year warranty for any manufacturing defect
Dimensions
Center to center length: 140 mm
Big end diameter: 50.6mm
Small end diameter: 19mm
Big end width: XX
Small end width: XX
Features
\- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability,
dedicated for Racing
\- Designed and processed by CNC machine.
\- All big and small ends are finished with SUNNEN honing machine
\- Precision alignment sleeves positively locate the rod cap, maintaining big
end bore size and eliminating cap walk
\- 100% X-rayed, sonic tested and magnafluxed
\- Multi-stage heat treated
\- Shot peened to relieve stress
\- Come with the bronzed bushing suitable for the floating piston pin
Notice
\- Professional installation is highly recommended (No Instruction Included)
\- Custom Service: If there's no conrods you need on our site, we would be
happy to help determine your requirements and develop a solution with you to
satisfy your needs.
