Introduction:
MaXpeedingRods H-beam connecting rods are designed for demanding racing
applications to increase horsepower and efficiency. The strength is suitable
for high-horsepower applications while keeping the weight light. Professional
processing makes it have super high wear resistance and excellent durability.
Application:
Compatible for Honda Civic B16A Engine
Compatible for Honda Civic Si 1.6L 1999-2000
Compatible for Honda Civic del Sol 1.6L 1994-1997
Specification：
Type: Forged 4340 aircraft chrome moly quality steel for racing

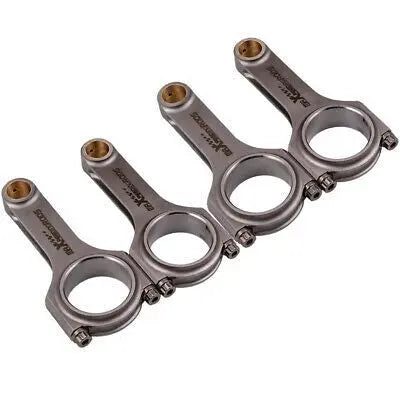

H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Advertised Horsepower Rating: 200HP/piece
Top acceleration: 9000rpm
package size: 28CM21CM10CM
Dimension:
Center to center length:134.36mm/5.29"
Big end diameter:48mm/1.89"
Small end diameter:21mm/0.827"
Big end width:23.75mm/0.935"
Small end width:21mm/0.827"
Feature:
1\. Performance Con Rods；
2\. H-Beam design reduces weight without compromising strength；
3\. Heat-treating & Shot-peened for remained consistent and strong. Shot-
peened finish to remove potential for stress risers；
4\. 100% CNC machined,Precision rod cap alignment dowels；
5\. Bores finished to +/- .01 mm；
6\. Balanced to within +/- 1 g per rod；
7\. Each rod is magnetic particle tested to ensure free of flaws；
8\. 100% X-rayed, sonic tested；
9\. Custom-made Service.
Note:
Professional installation is highly recommended ；
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
