Weld-On Triangulated 4 Link Kit Brackets 2500 Bags Air Ride Suspension 2.75 axle

  • Sale
  • Regular price $629.20
Shipping calculated at checkout.

*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

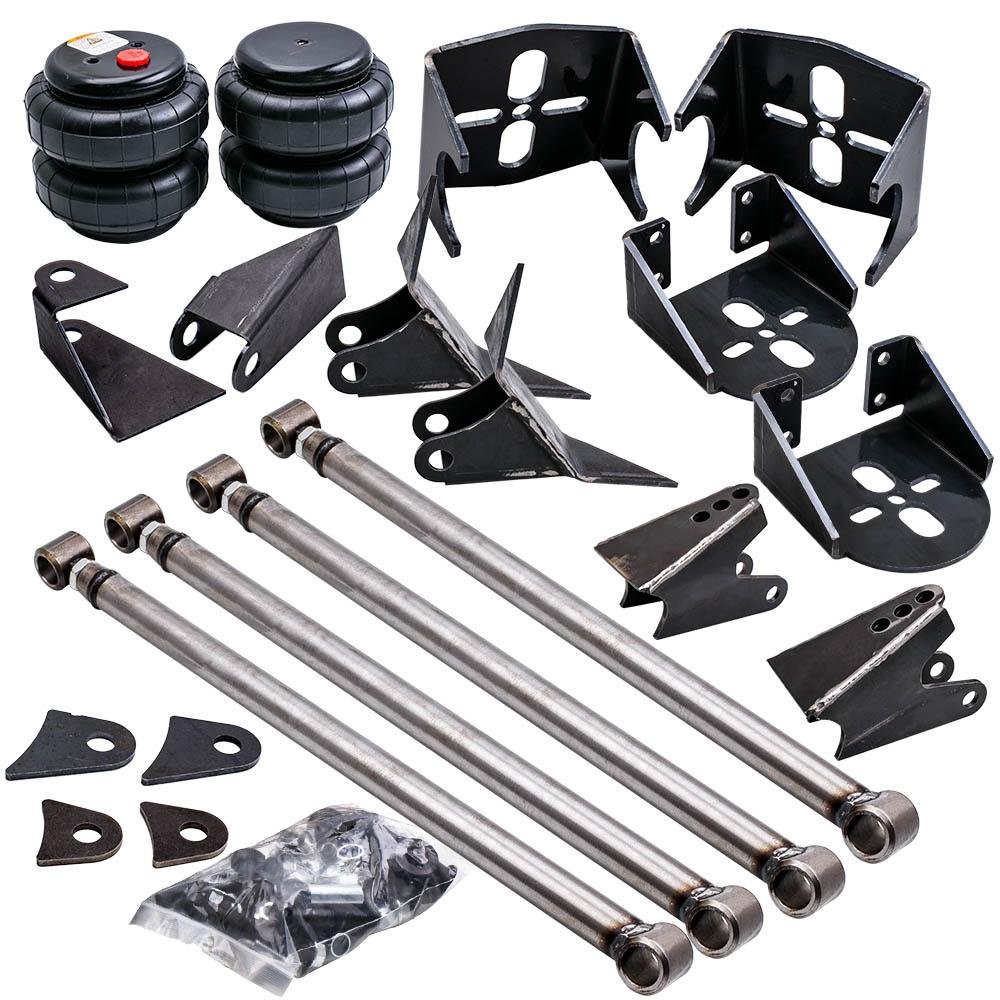

Package Includes

4 x Heavy Duty Steel Bars
4 x Zinc Plated Steel Rod Ends W/ Urethane Bushings
2 x Steel Weld-On Triangulated Frame Mounts
2 x Steel Weld-On Lower Axle Tube Mounts
4 x Steel Weld-On Center Link Axle Mounts
2 x Steel Weld-On Side Frame Mounts
8 x Button Head Bolts with Nyloc Nuts
2 x Weld-On Lower Axle Bag Mount
2 x Weld-On Upper Frame Bag Mount
2x Standard 2500 Single 1/2"npt Port Air Bags

4 Link Bar Dimensions

DOM Tubing Outside Diameter :1.25"
DOM Tubing Thick Wall :156"
All Four Bars :24.00"
(Center To Center Adjusted All The Way In)

Specs of bag

2500 LBS
Diameter: 6"
Two Top Mounting Holes : Approx 1-3/4" from Eye to Eye
Bottom has One Mounting Hole in Center
All mounting holes are 3/8"-16 UNC


Instructions Are Not Included
We Recommend Professional Installatio
