Timing Chain Kit Water Pump w/ 3-Bolt Flange Fit 15-16 Ford F-150 Lincoln 3.5L. The timing chain is located in the front of the motor and is attached to a set of gears and pulleys that power multiple mechanical components, including the crankshaft and camshaft. In order for your engine to fire, the timing chain must smoothly rotate around the gears without hesitation. Although the timing chain is made out of metal, it is subject to wear and tear and may break if not replaced as recommended by the factory. Since the timing chain can go bad and will need to be replaced, it is important to be able to recognize the symptoms so you can have it repaired before it fails completely. Signs your timing chain needs to be replaced include: Your vehicle has a rough idle, meaning your engine shakes. Your car backfires. The vehicle seems to be working harder than normal. Your car will not start at all, indicated a complete timing chain failure. Be sure to use our aftermarket replacement timing chain kit when your timing chain is serviced for the best performance.
Fits Following Models:
2015-2017 FORD EXPEDITION 3.5L 3496CC 213CID V6 DOHC TURBOCHARGED, (24 VALVE)
2015-2016 FORD EXPEDITION 3.5L 3496CC 213CID V6 FLEX DOHC TURBOCHARGED, (24 VALVE)
2011-2016 FORD F-150 3.5L 3496CC 213CID V6 DOHC TURBOCHARGED, (24 VALVE)
2015-2017 LINCOLN NAVIGATOR 3.5L 3496CC 213CID V6 DOHC TURBOCHARGED, (24 VALVE)

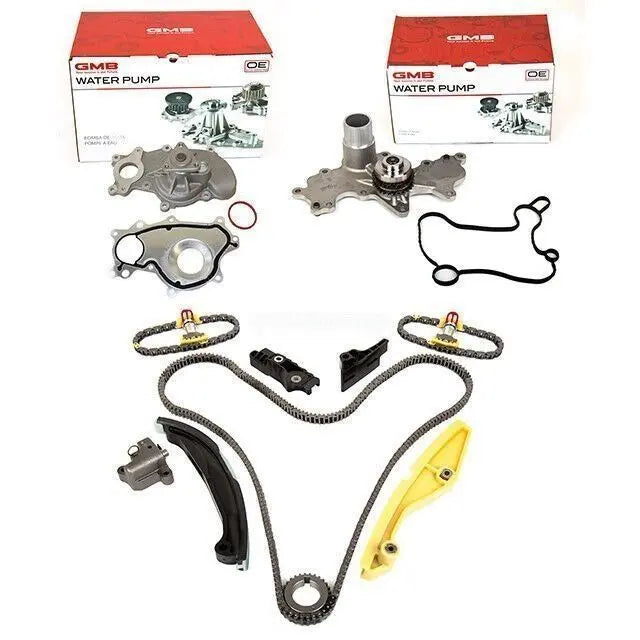

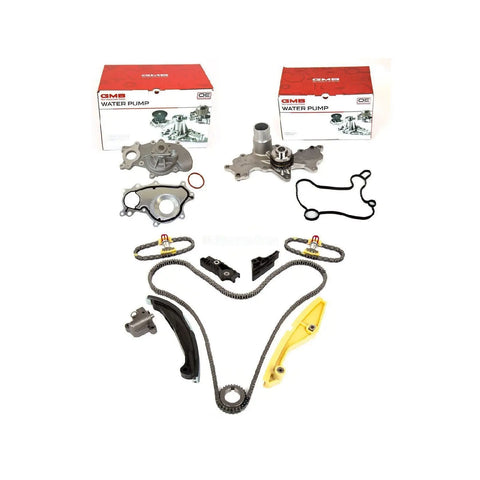

This item includes:
1 Primary Timing Chain (254 Link - Silent Type)
2 Secondary Timing Chain (50 Link - Roller Type)
1 Crankshaft Gear (29 Teeth)
1 Timing Chain Tensioner Arm
1 Timing Guide (Lower, Left)
1 Timing Guide (Lower, Right)
1 Primary Timing Chain Tensioner
2 Secondary Timing Chain Tensioner
1 Timing Guide (Upper)
1 Timing Guide (Lower)
1 Water Pump Mounting
1 GMB Water Pump w/ Gasket (3 bolt flange)
