Timing Chain Kit Water Pump Fit 04-10 Expedition Ford F150 Lincoln TRITON 24V. The timing chain is located in the front of the motor and is attached to a set of gears and pulleys that power multiple mechanical components, including the crankshaft and camshaft. In order for your engine to fire, the timing chain must smoothly rotate around the gears without hesitation. Although the timing chain is made out of metal, it is subject to wear and tear and may break if not replaced as recommended by the factory. Since the timing chain can go bad and will need to be replaced, it is important to be able to recognize the symptoms so you can have it repaired before it fails completely. Signs your timing chain needs to be replaced include: Your vehicle has a rough idle, meaning your engine shakes. Your car backfires. The vehicle seems to be working harder than normal. Your car will not start at all, indicated a complete timing chain failure. Be sure to use our aftermarket replacement timing chain kit when your timing chain is serviced for the best performance.
Fits Following Models:
2005-2009 FORD EXPEDITION 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE "5" - TRITON
2006-2009 FORD F-150 5.4L 330CID V8 FLEX SOHC, (24 VALVE), VIN CODE "V" - TRITON
2004-2009 FORD F-150 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE "5" - TRITON
2005-2010 FORD F-250 SUPER DUTY 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE "5" - TRITON
2005-2010 FORD F-350 SUPER DUTY 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE "5" - TRITON
2006-2008 LINCOLN MARK LT 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE "5" - TRITON
2005-2009 LINCOLN NAVIGATOR 5.4L 330CID V8 SOHC, (24 VALVE), VIN CODE "5" - TRITON

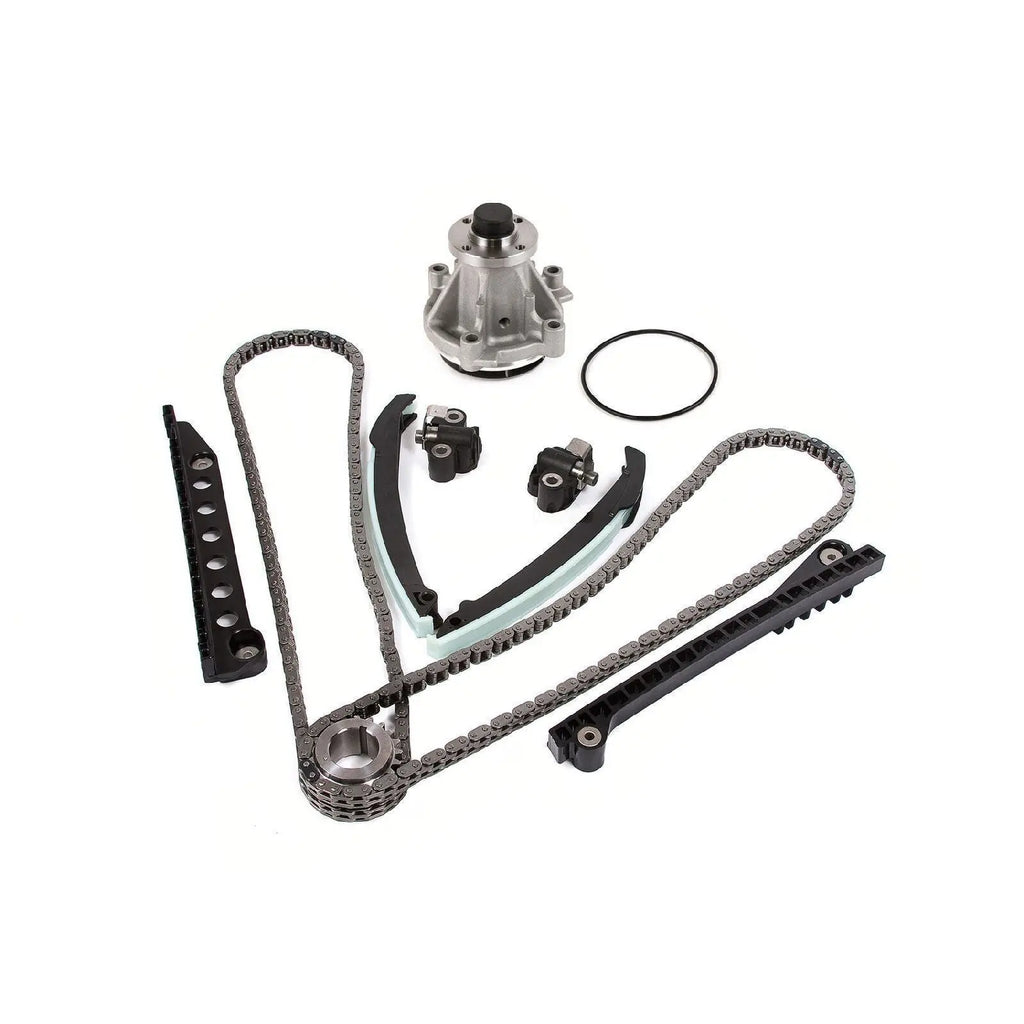

This item includes:
2 Timing Chain (122 links)
1 Double Row Crank Sprocket (21 teeth)
1 Left Tensioner
1 Right Tensioner
1 Left Tensioner Arm
1 Right Tensioner Arm
1 Left Guide Rail
1 Right Guide Rail
2 Cam Gears / Cam Phasers - are not included

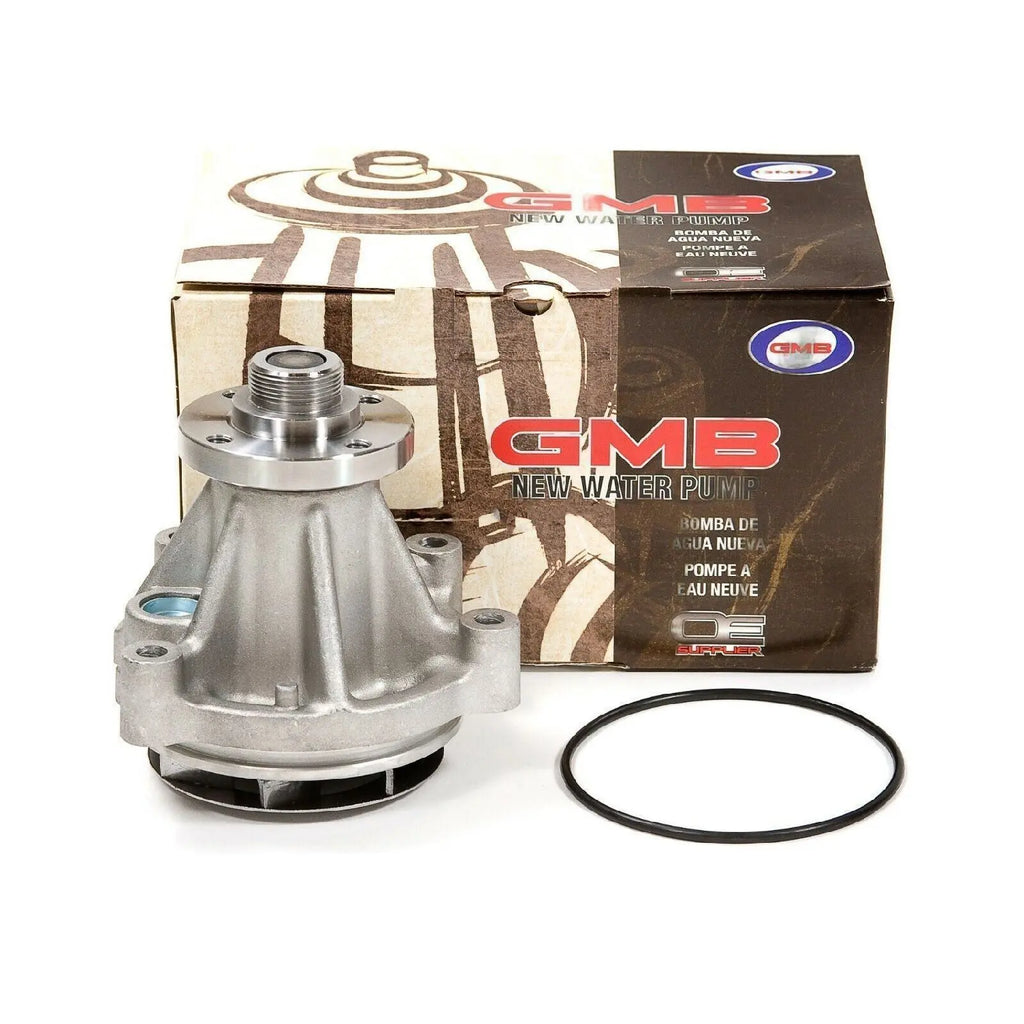

1 Water Pump w/ Gasket (M30 small hub)
