Timing Chain Kit VTC Solenoid Fit 04-06 Buick Cadillac Saab Suzuki 3.6L DOHC 24V. The timing chain is located in the front of the motor and is attached to a set of gears and pulleys that power multiple mechanical components, including the crankshaft and camshaft. In order for your engine to fire, the timing chain must smoothly rotate around the gears without hesitation. Although the timing chain is made out of metal, it is subject to wear and tear and may break if not replaced as recommended by the factory. Since the timing chain can go bad and will need to be replaced, it is important to be able to recognize the symptoms so you can have it repaired before it fails completely. Signs your timing chain needs to be replaced include: Your vehicle has a rough idle, meaning your engine shakes. Your car backfires. The vehicle seems to be working harder than normal. Your car will not start at all, indicated a complete timing chain failure. Be sure to use our aftermarket replacement timing chain kit when your timing chain is serviced for the best performance.
Fits Following Models:
2005-2006 BUICK LACROSSE 3.6L 217CID V6 DOHC, (24 VALVE), VIN CODE "7"
2004-2006 BUICK RENDEZVOUS 3.6L 217CID V6 DOHC, (24 VALVE), VIN CODE "7"
2005-2006 CADILLAC CTS 2.8L 2792CC 170CID V6 DOHC, (24 VALVE), ENG CODE "T"
2004-2006 CADILLAC CTS 3.6L 217CID V6 DOHC, (24 VALVE), VIN CODE "7"
2004-2006 CADILLAC SRX 3.6L 217CID V6 DOHC, (24 VALVE), VIN CODE "7"
2005-2006 CADILLAC STS 3.6L 217CID V6 DOHC, (24 VALVE), VIN CODE "7"
2006-2006 SAAB 9-3 2.8L 2792CC 170CID V6 DOHC TURBOCHARGED, (24 VALVE), ENG CODE "B284"
2007 SATURN AURA 3.6L 217CID V6 DOHC, (24 VALVE), VIN CODE "7"
2007 SUZUKI XL-7 3.6L 3564CC V6 DOHC, (24 VALVE), ENG CODE "N36A"

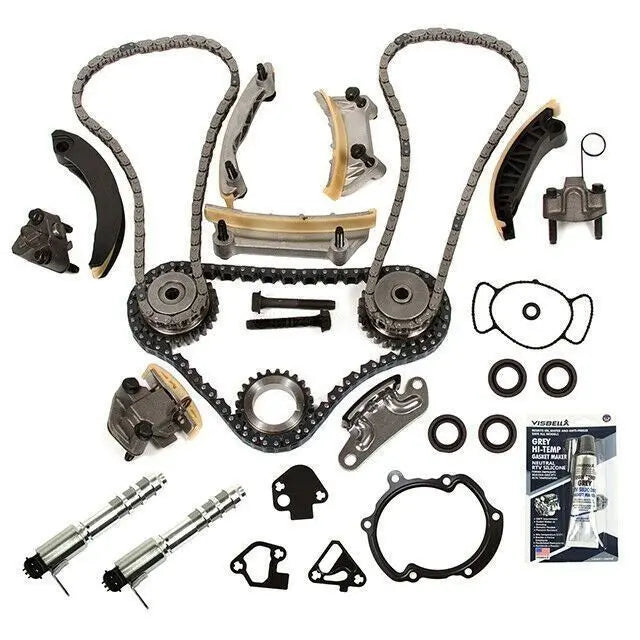

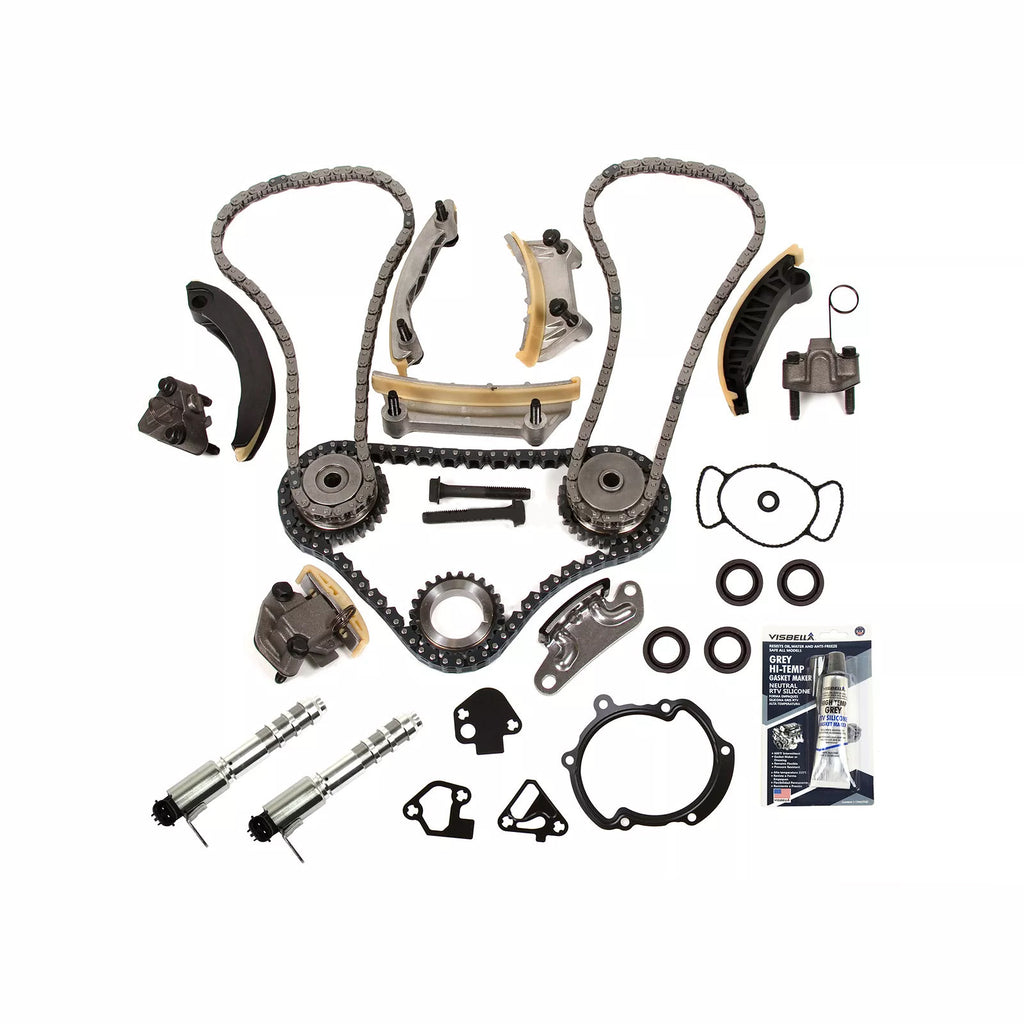

This item includes:
1 Timing Chain lower (primary silent 78 link)
2 Timing Chain upper (roller type - secondary 92 link)
1 Tensioner lower (primary - crank to idlers)
1 Tensioner secondary (right side upper)
1 Tensioner secondary (left side upper)
2 Cam Sprocket (intake VVT 32 teeth) - are not included
2 Cam Sprocket (exhaust VVT 32 teeth) - are not included
1 Idler Sprocket (right combo 18T / 27T)
1 Idler Sprocket (left combo 18T / 27T)
1 Crank Sprocket (24 teeth non roller style)
1 Guide Rail lower (primary right side fixed)
1 Guide Rail lower (primary upper / fixed)
1 Guide Rail left upper (secondary tensioner rail)
1 Guide Rail right upper (secondary tensioner rail)
1 Guide Rail left upper (secondary fixed rail)
1 Guide rail right upper (secondary fixed rail)
1 Timing Cover Gasket Set
2 VTC Solenoid
