Timing Chain Kit Fit 09-14 Ford E150 E250 E350 Super Duty 5.4L SOHC 16V. The timing chain is located in the front of the motor and is attached to a set of gears and pulleys that power multiple mechanical components, including the crankshaft and camshaft. In order for your engine to fire, the timing chain must smoothly rotate around the gears without hesitation. Although the timing chain is made out of metal, it is subject to wear and tear and may break if not replaced as recommended by the factory. Since the timing chain can go bad and will need to be replaced, it is important to be able to recognize the symptoms so you can have it repaired before it fails completely. Signs your timing chain needs to be replaced include: Your vehicle has a rough idle, meaning your engine shakes. Your car backfires. The vehicle seems to be working harder than normal. Your car will not start at all, indicated a complete timing chain failure. Be sure to use our aftermarket replacement timing chain kit when your timing chain is serviced for the best performance.
Fits Following Models:
2010-2013 FORD E-150 5.4L 330CID V8 CNG SOHC
2009-2013 FORD E-150 5.4L 330CID V8 FLEX SOHC
2010-2013 FORD E-150 5.4L 330CID V8 LPG SOHC
2010-2013 FORD E-250 5.4L 330CID V8 CNG SOHC
2009-2013 FORD E-250 5.4L 330CID V8 FLEX SOHC
2010-2013 FORD E-250 5.4L 330CID V8 LPG SOHC
2010-2014 FORD E-350 SUPER DUTY 5.4L 330CID V8 CNG SOHC
2009-2014 FORD E-350 SUPER DUTY 5.4L 330CID V8 FLEX SOHC
2010-2014 FORD E-350 SUPER DUTY 5.4L 330CID V8 LPG SOHC
2009 FORD E-350 SUPER DUTY 5.4L 330CID V8 SOHC

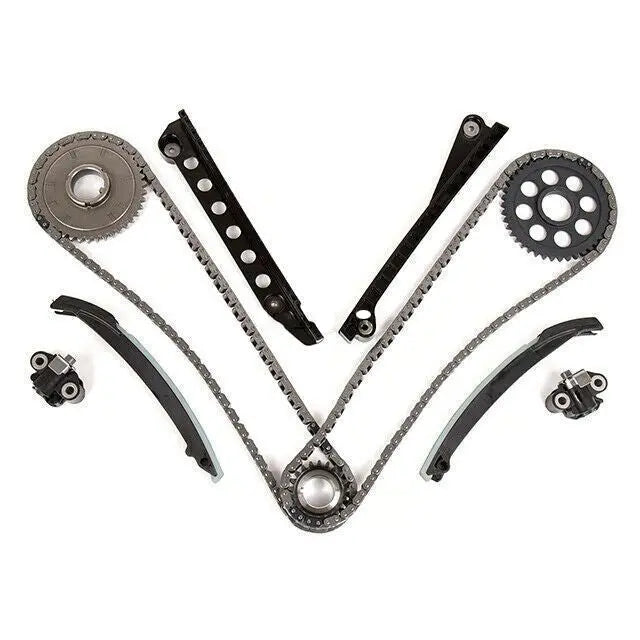

This item includes:
2 Timing Chain (122 link - 2 required)
1 Tensioner right (plastic body style)
1 Tensioner left (plastic body style)
1 Cam Sprocket (42 teeth - left side)
1 Cam Sprocket (42 teeth - right side)
1 Crank Sprocket (double row 21T / 21T)
1 Guide Rail left (tensioner rail - left)
1 Guide Rail right (tensioner rail - right)
1 Guide Rail left (fixed guide rail - left)
1 Guide Rail right (fixed guide rail - right)
