Timing Chain Kit Fit 99-07 Chevrolet Suzuki V6 2.5 2.7 H25A H27A. The timing chain is located in the front of the motor and is attached to a set of gears and pulleys that power multiple mechanical components, including the crankshaft and camshaft. In order for your engine to fire, the timing chain must smoothly rotate around the gears without hesitation. Although the timing chain is made out of metal, it is subject to wear and tear and may break if not replaced as recommended by the factory. Since the timing chain can go bad and will need to be replaced, it is important to be able to recognize the symptoms so you can have it repaired before it fails completely. Signs your timing chain needs to be replaced include: Your vehicle has a rough idle, meaning your engine shakes. Your car backfires. The vehicle seems to be working harder than normal. Your car will not start at all, indicated a complete timing chain failure. Be sure to use our aftermarket replacement timing chain kit when your timing chain is serviced for the best performance.
Fits Following Models:
1999-2005 SUZUKI GRAND VITARA 2.5L V6 DOHC, (24 VALVE) ENG CODE "H25A"
2004-2004 SUZUKI VITARA 2.5L V6 DOHC, (24 VALVE) ENG CODE "H25A"
2006 SUZUKI GRAND VITARA 2.7L V6 DOHC, (24 VALVE) ENG CODE "H27A"
2001-2006 SUZUKI XL7 2.7L V6 DOHC, (24 VALVE) ENG CODE "H27A"
2001-2004 CHEVROLET TRACKER 2.5L V6 DOHC, (24 VALVE) ENG CODE "H25A"

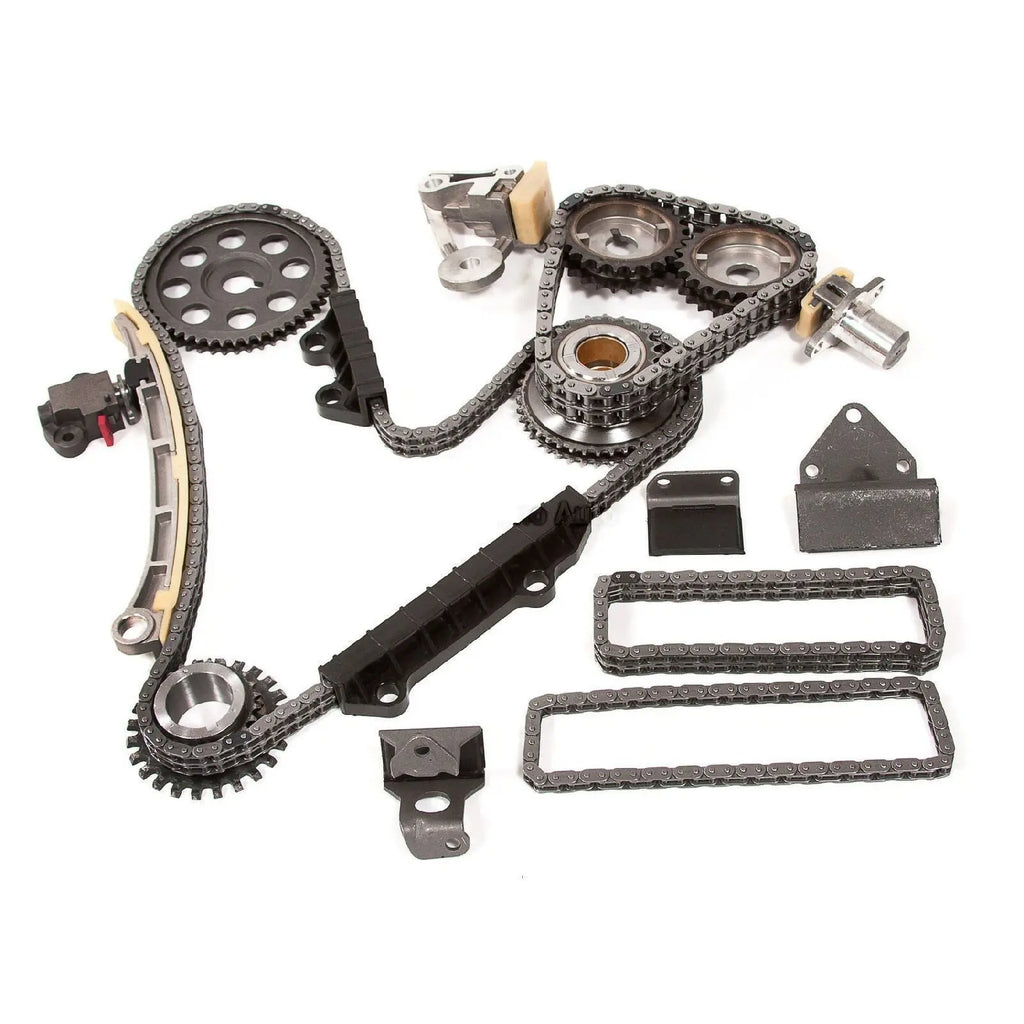

This item includes:
1 Timing Chain (crankshaft to idler)
1 Timing Chain (idler to cams)
1 Timing Chain (cam to cam)
1 Tensioner Upper (left - camshaft chain)
1 Tensioner Upper (right - camshaft chain)
1 Tensioner Lower (for crank to idler chain)
1 Guide Rail (curved - right side idler chain)
1 Guide Rail (straight - left side)
4 Guide Rail
1 Cam Sprocket (48 teeth right outer)
2 Cam Sprocket (24 teeth left)
1 Idler Sprocket (20-40 teeth dual - upper left)
1 Crank Sprocket (24 teeth - cam drive)
1 Oil Pump Chain (64 link)
1 Idler Sprocket (19 teeth) - is not included in this kit
Oil Pump Guide, and Oil Pump Sprocket - are not includ
