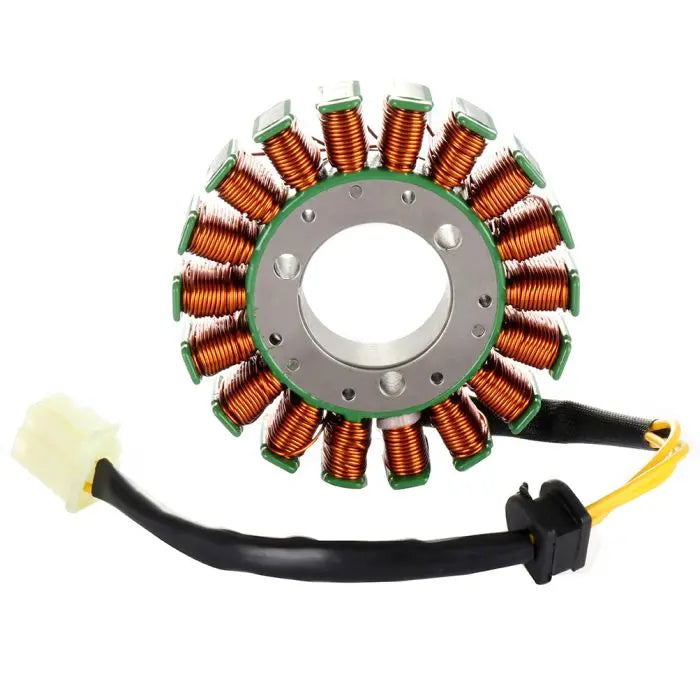

Brand new stator
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
Adjustable timing plate to advance and retard up to 10 degrees included
All product shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Description
Instructions:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Wire to wire resistance
Alternator 1 : White between each White = 0.6 ohms +/-20%
Alternator 2 : White to the Ground = 0.L
Dimensions
Interior diameter : 28 mm
Exterior diameter : 102 mm
Thickness : 20 mm
Length of wires stator to grommet : 700 mm
Product Specifics
Brand: ECCPP
Manufacturer Part Number: E10270201CP
Type: Stator
Warranty: 1 Year
UPC: Does not apply
Surface Finish: Metal
Fits: For Suzuki GSXR 600 GSXR 700
Interchange Part Number: 31401-35F00 31401-35F10
OEM part replacement:
31401-35F00
31401-35F10
Number of wires : 3
Number of plugs : 1
Number of pins : 3
