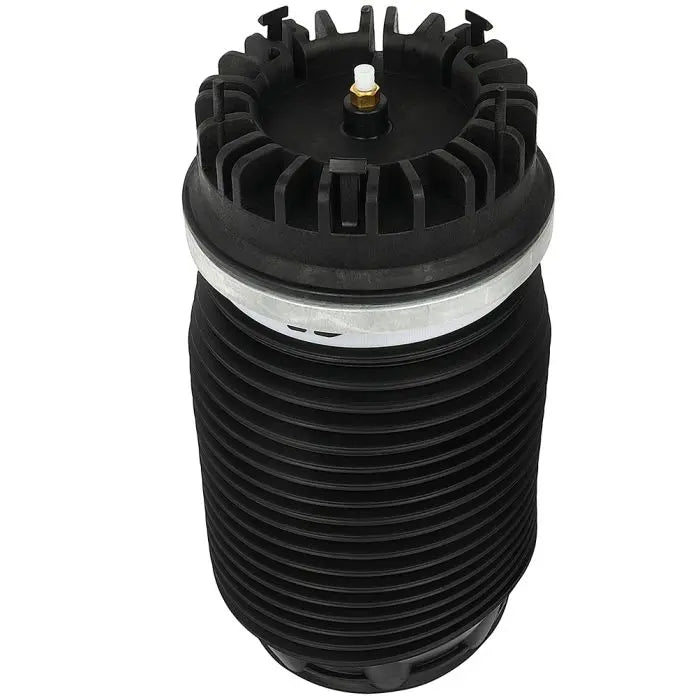

Rear Air Suspension Spring For Dodge Ram 1500 Limited Rebel 2013-2019 4877136AA

Item Specifications
Key Words: Rear Air Suspension Spring For Dodge Ram 1500 Limited Rebel 2013-2019

Product Specifics
Part Type: Air Suspension Spring
Fitment Type: Direct Replacement
Size: Single Dimension(CM) 50.00(Length)*20.00(Width)*20.00(Height)
Single Weight(KG): 2.750
Upper Mounting Isolator Included: No Isolator Required
Lower Mounting Isolator Included: No Isolator Required
Upper Mount Type: Base Cup
Lower Mount Type: Base Cup
Included Hardware: None
Drive Layout: Front Engine RWD/4WD
Platform: DS/DJ/D2
Custom Bundle: No
Material: Iron,Aluminium Alloy,Rubber
Quantity: Single
Warranty: 1 Year
OE Spec or Performance/Custom: OE Spec
Adjustable: Yes
Greasable or Sealed: Sealed
Brand: ECCPP
UPC: Does not apply
Manufacturer Part Number: E115753CP01
Interchange Part Number: Air Suspension Spring Bag, Air Ride Spring Bag
Other Part Number: 4877136AB
Superseded Part Number: 4877136
*OEM Part Number:
4877136AA
4877136AB
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

1.to avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1. Raise the vehicle.

2. Remove the applicable rear wheel.

3. Remove wheel well liner.

4. Use the scan tool to deflate the air spring into the reservoir.

5. Loosen and remove the air line. (picture 1, 2)

6. Push in the locking tabs and push downward on the air spring to dislodge it from the vehicle. (picture 3, 4)

7. Remove the air spring from the vehicle completely. (picture 5)

*Installation Guideline
1. Reinstall the air line and tighten to manufacturer's specifications. (picture 6, 7)

2. Install the new air spring into the vehicle. (picture 8)

3. Use jack or stand to raise axle until spring seat contacts bottom mount. (picture 9)

4. Use the scan tool to do a short-time inflation. (picture 10)

5. Remove jack or stand from previous step and ensure air spring is seated before continuing with full inflation.

6. Inflate air spring completely. (picture 11)

7. Check the system's total air mass to ensure that it meets manufacturer's specifications.

8. Reinstall the wheel well liner.

9. Reinstall the wheel.

10. Lower the vehicle.

11. Installation complete.

Frequently Asked Questions
How to prevent the damage of air springs/How to extend the service life of air springs/struts etc.?

An air strut with separable air springs

If your vehicle offers a separable air suspension (Audi Allroad A6 C5, Mercedes-Benz W164, BMW X5, etc.), you should regularly (about once a week) lift the car to the maximum position, and remove dirt with a high-pressure cleaner (keep the cleaner at a distance to the air spring about 30 cm/12 inches, otherwise water pressure can damage the air spring). The highest position may vary depending on your model and regulation options. Therefore, please test this by trying the different modes available to you (Sport, comfort, dynamic, off-road) and choose the one that sets your vehicle to the highest position. The dirt will most likely be found under the fold of the pneumatic chambers. If you find a frozen layer of bitumen on the piston guide (the part of a strut on which the air spring is installed), it is recommended to clean it as well. Whenever possible, avoid riding on fresh asphalt, as fresh bitumen mixed with sand immediately results in a build-up of abrasives on the piston and in turn contributes to accelerated wear and tear of the air spring.

A complete air suspension shock

Many cars such as Mercedes W220 or W211 are set up with a complete air strut - shock absorber and air spring visually form a complete spare part. In many cases, you can easily recognize these by the metal cups with which the air spring is tightly mounted. To best avoid any damage, we highly recommend to regularly check the condition of the dust protection seals of the air strut.

What is the difference between an air spring and an air strut?

The air spring is a part of the air strut. Some vehicles (e.g. Mercedes ML) allow you to change the air spring separately. At our online shop you have the opportunity to buy either the whole air strut or only the air spring. For some type of vehicles it is not possible to change the air spring separately. In this case the whole air strut should be replaced.

Which side of my car is the Right and Left?

The right and left sides of an automobile are determined as if sitting in the car facing forward. Thus, the left side is on the left when sitting in the car facing forward, and the right side is on the right. For American cars, the driver’s side is on the left, and the passenger sits to the right of the driver. For cars in Japan, Britain, Ireland, the Bahamas and some other former British colonies -- where they drive on the left side of the road -- the passenger sits on the left side, and the driver (along with all the driving controls) is on the right.

Includes
Single for Rear Left or Right Air Suspension Spring Bag

Notes : Please double confirm the compatibility as well as the OEM number before purchasing.

Instruction is not included. Professional installation is recommended.
