Pistons w/ Rings fit 01-05 Toyota Camry Rav4 2.4L DOHC 2AZFE. A piston is a cylindrical piece of metal that moves up and down inside each cylinder, compressing the air-fuel mixture and capturing the force created by the combustion process. This force is then transferred to the crankshaft, via the connecting rod. Symptoms of a Bad or Failing Piston include engine misfire, excessive oil consumption, knocking or slapping noise from inside engine. Be sure to have your engine pistons replace with our aftermarket replacement pistons as soon as they start to give you trouble.
Fits Following Models:
2005-2006 SCION TC 2.4L 2398CC L4 DOHC, (16 VALVE), ENG CODE "2AZFE"
2002-2006 TOYOTA CAMRY 2.4L 2362CC L4 DOHC, (16 VALVE), ENG CODE "2AZFE"
2006-2007 TOYOTA HIGHLANDER 2.4L 2362CC L4 DOHC, (16 VALVE), ENG CODE "2AZFE"
2004-2005 TOYOTA RAV4 2.4L 2362CC L4 DOHC, (16 VALVE), ENG CODE "2AZFE"
2006 TOYOTA SOLARA 2.4L 2362CC L4 DOHC, (16 VALVE), ENG CODE "2AZFE"

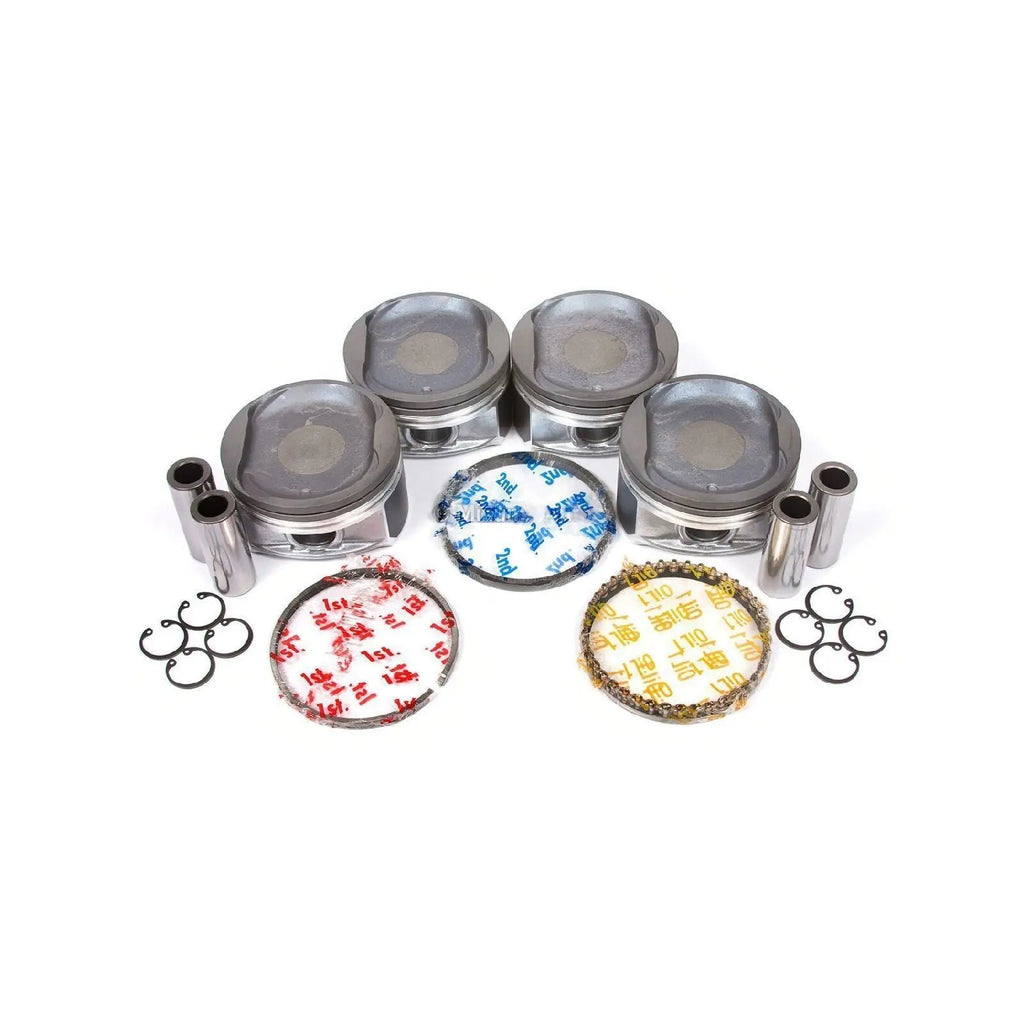

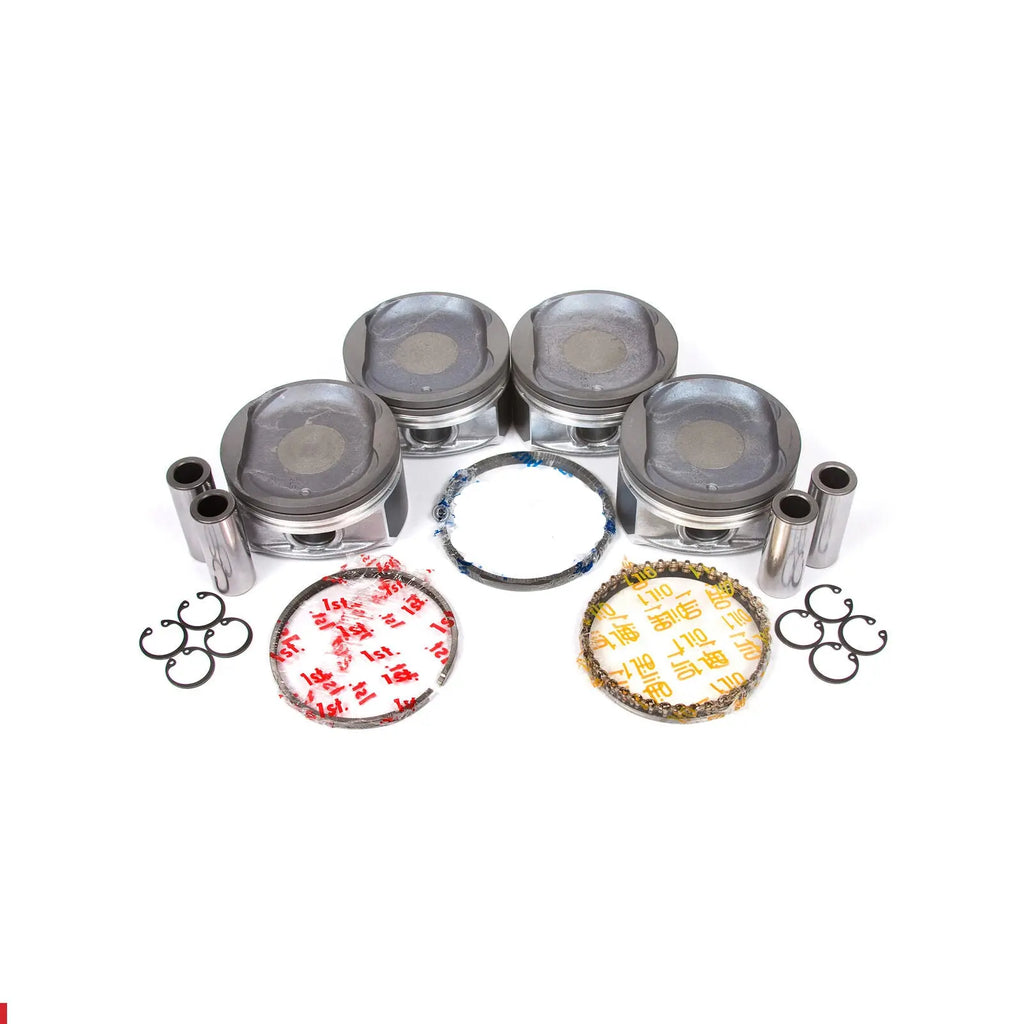

This item includes:
4 Pistons with Complete Ring Set (Sizes available: STD - Standard Size)
Standard Bore Diameter: 88.50mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 2.00mm
4 Piston Wrist Pins
8 Cir Clips
