Pistons w/ Rings fit 93-97 Geo Prizm Toyota Corolla 1.6L DOHC 4AFE 16V

Pistons w/ Rings fit 93-97 Geo Prizm Toyota Corolla 1.6L DOHC 4AFE 16V. Ultra
performance premium grade aluminum alloy pistons. Minimizes fractures &
cracks, no more gummed up oil and reduces engine failure. Reduce tension with
better fuel economy, reduce cylinder wear. Replace Fel-Pro Part :
13101-16160-01, 94853590

Pistons w/ Rings fit 93-97 Geo Prizm Toyota Corolla 1.6L DOHC 4AFE 16V.
Upgrade your engine's performance with our high-quality pistons. Crafted from
durable materials, these pistons are designed to deliver superior reliability
and lasting performance. Engineered with precision, our pistons optimize fuel
economy and increase power output, allowing you to get the most out of your
vehicle. Our pistons also feature superior heat dissipation properties,
preventing overheating and protecting your engine from potential damage.
Experience enhanced combustion efficiency and reduced friction for smoother
operation, thanks to our performance-driven design. Whether you're a
professional mechanic or a DIY enthusiast, our pistons are the perfect choice
to elevate your engine's performance to new heights. Invest in quality and
upgrade your ride today!

Fits Following Models:
1993-1997 GEO PRIZM 1.6L 1588CC 98CID L4 DOHC, (16 VALVE), VIN CODE "6"
1993-1997 TOYOTA COROLLA 1.6L 1587CC L4 DOHC, (16 VALVE), ENG CODE "4AFE"

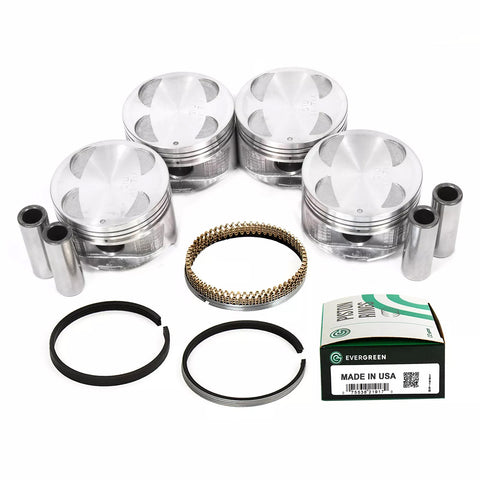

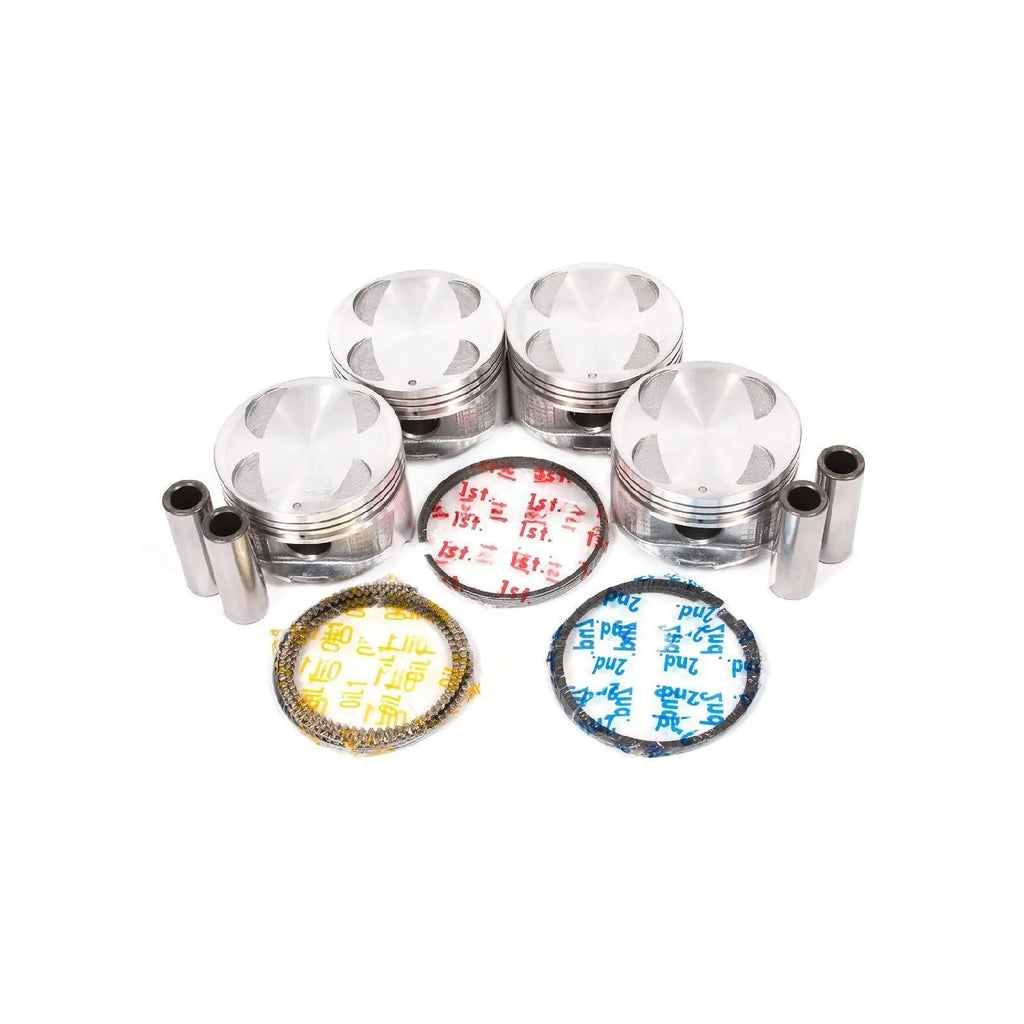

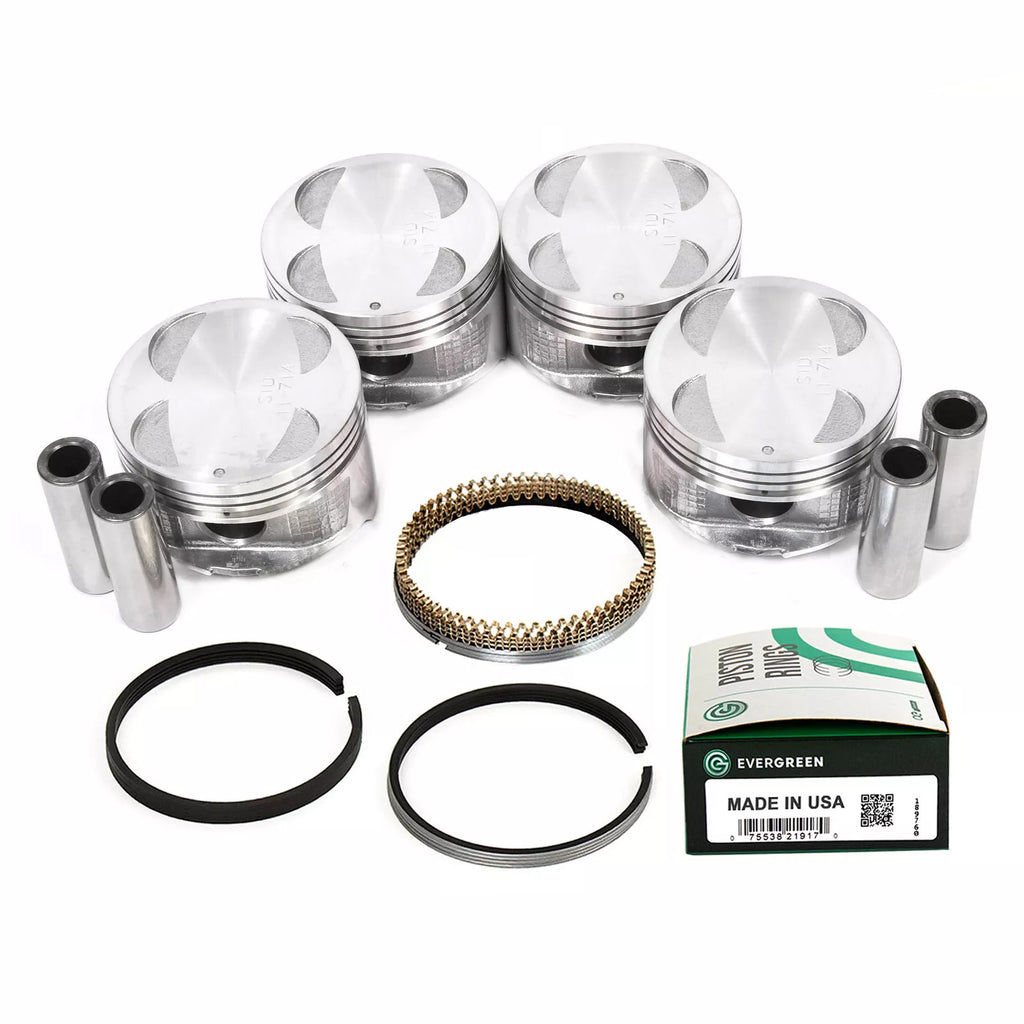

This item includes:

4 Pistons with Complete Ring Set (Sizes available: see options above)
Standard Bore Diameter: 81.00mm
1st Group: 1.20mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
4 Piston Wrist Pins

Remark: Please select pistons with rings sizes from the options above. For
other oversizes please contact us for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS2026](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS2026&LH_TitleDesc=1&submit=)| MM| 81.000| 81.250| 81.500|
81.750| 82.000
IN| 3.189| 3.199| 3.209| 3.219| 3.228
Piston Ring Part| Piston Information
[RS2015](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS2015&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS2026
D.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 81.000| 3.189
Comp| 30.500| 1.201
| Dist.| 1| -
---|---|---
2|
3|
| 2.500
---
| 0.098
---
Length| 55.600| 2.189
| Surface Treatment| Cir Clip|
| NONE
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
15.000| 0.591
Pin Length| 56.000| 2.205
Pin Diameter| 20.000| 0.787
1st| 1.200| 0.047
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
