Pistons w/ Rings fit 91-99 Nissan Infiniti 2.0L DOHC L4 16 Valve SR20DE. Ultra
performance premium grade aluminum alloy pistons. Minimizes fractures &
cracks, no more gummed up oil and reduces engine failure. Reduce tension with
better fuel economy, reduce cylinder wear. Replace Fel-Pro Part :
A2010-63J00, A3020-63J00
Pistons w/ Rings fit 91-99 Nissan Infiniti 2.0L DOHC L4 16 Valve SR20DE.
Upgrade your engine's performance with our high-quality pistons. Crafted from
durable materials, these pistons are designed to deliver superior reliability
and lasting performance. Engineered with precision, our pistons optimize fuel
economy and increase power output, allowing you to get the most out of your
vehicle. Our pistons also feature superior heat dissipation properties,
preventing overheating and protecting your engine from potential damage.
Experience enhanced combustion efficiency and reduced friction for smoother
operation, thanks to our performance-driven design. Whether you're a
professional mechanic or a DIY enthusiast, our pistons are the perfect choice
to elevate your engine's performance to new heights. Invest in quality and
upgrade your ride today!
Fits Following Models:
1991-1996 INFINITI G20 2.0L 1998CC L4 DOHC, (16 VALVE), ENG CODE "SR20DE"
1999 INFINITI G20 2.0L 2000CC L4 DOHC, (16 VALVE), ENG CODE "SR20DE"
1995-1998 NISSAN 200SX 2.0L 1998CC L4 DOHC, (16 VALVE), ENG CODE "SR20DE"
1991-1993 NISSAN NX 2.0L 1998CC L4 DOHC, (16 VALVE), ENG CODE "SR20DE"
1991-1999 NISSAN SENTRA 2.0L 1998CC L4 DOHC, (16 VALVE), ENG CODE
"SR20DE"

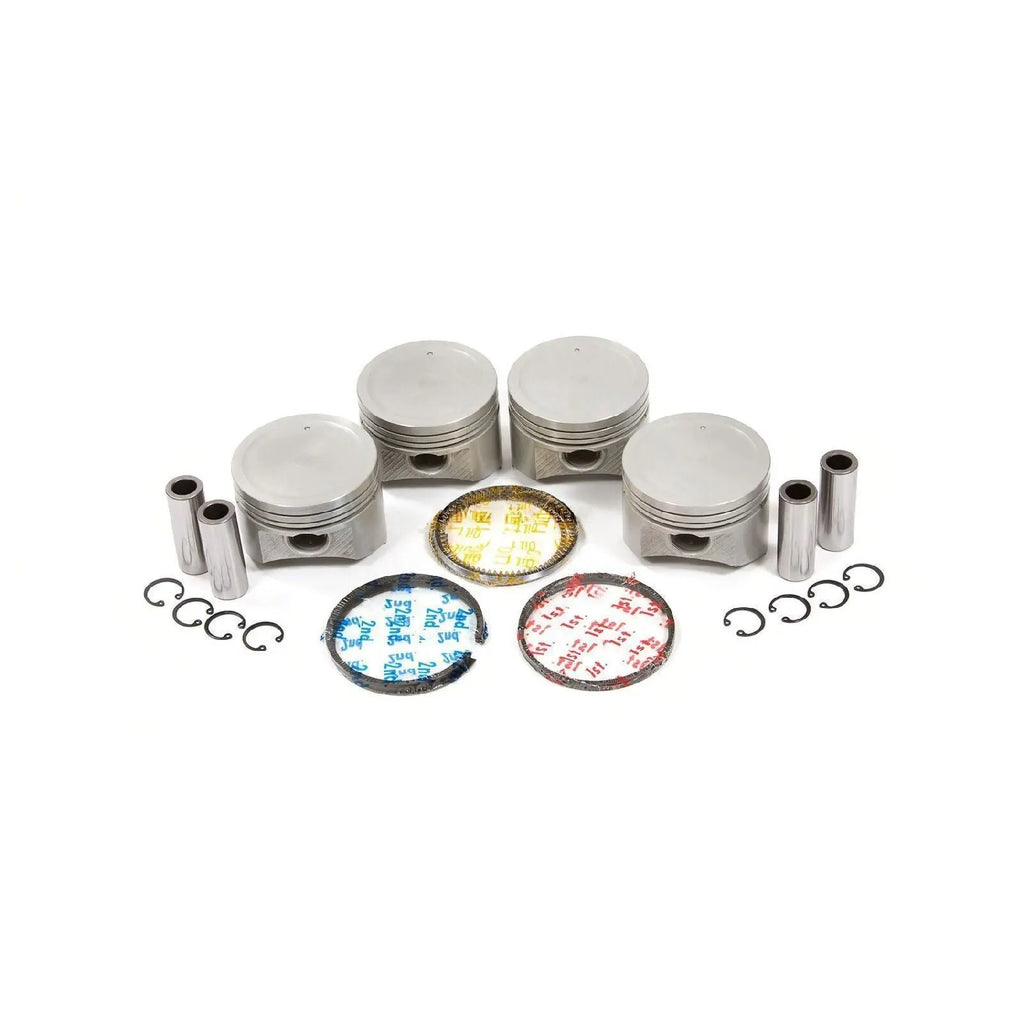

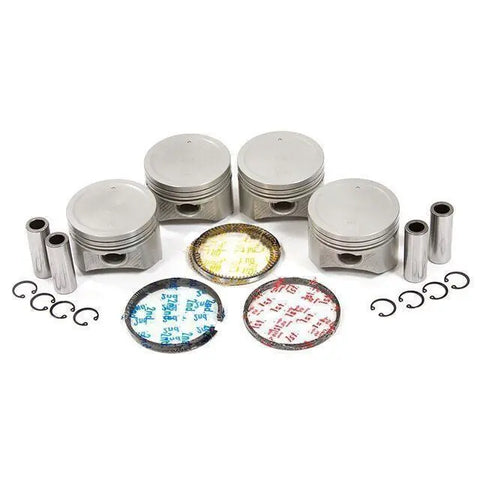

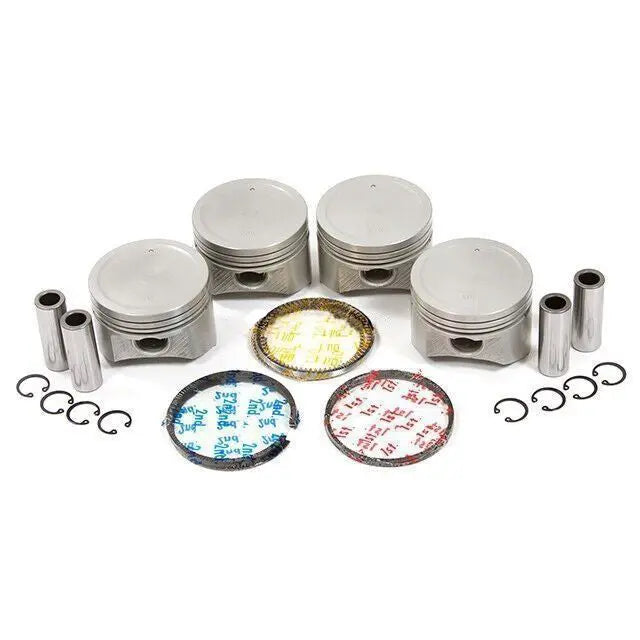

This item includes:
4 Pistons with Complete Ring Set (Sizes available: see options above)
Standard Bore Diameter: 86.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
4 Piston Wrist Pins
8 Cir Clips
Remark: Please select pistons with rings sizes from the options above. For
other oversizes please contact us for special order.
Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS3008](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS3008&LH_TitleDesc=1&submit=)| MM| 86.000| 86.250| 86.500|
86.750| 87.000
IN| 3.386| 3.396| 3.406| 3.415| 3.425
Piston Ring Part| Piston Information
[RS3008](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS3008&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS3008
D.jpg)![](https://mizumoauto.net/ebay/images/gallery/pistons/PS3008.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 86.000| 3.386
Comp| 32.000| 1.260
| Dist.| 1| -
---|---|---
2|
3|
| 0.900
---
| 0.035
---
Length| 63.000| 2.480
| Surface Treatment| Cir Clip|
![](https://mizumoauto.net/ebay/images/gallery/pistons/clip.jpg)| Image
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
10.000| 0.394
Pin Length| 60.000| 2.362
Pin Diameter| 22.000| 0.866
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
