Introduction
MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds
damping adjustment ability by a knob the top of the shaft. They are also made
for street use, but the 24 level rebound damping control allows you the
ability to perfectly dial in your coilover setup. You will experience better
ride quality in all road conditions.
Application
Compatible for Mitsubishi Eclipse IV 2006–2012 (DK2A/DK4A)
Compatible for Mitsubishi Galant (DJ) 2004-2012
Specification
Top mounts： front camber plate
rear rubber top mount
Damping: 24 levels rebound damping adjustable
Spring rate: front 7 kg/mm (392 lbs/in) rear 6 kg/mm (336 lbs/in)
Adjustable height: Yes lowering 1" to 3"
shock type: Twin tube
spring Preload: 7-10 mm
color: gold body with black spring
Package included

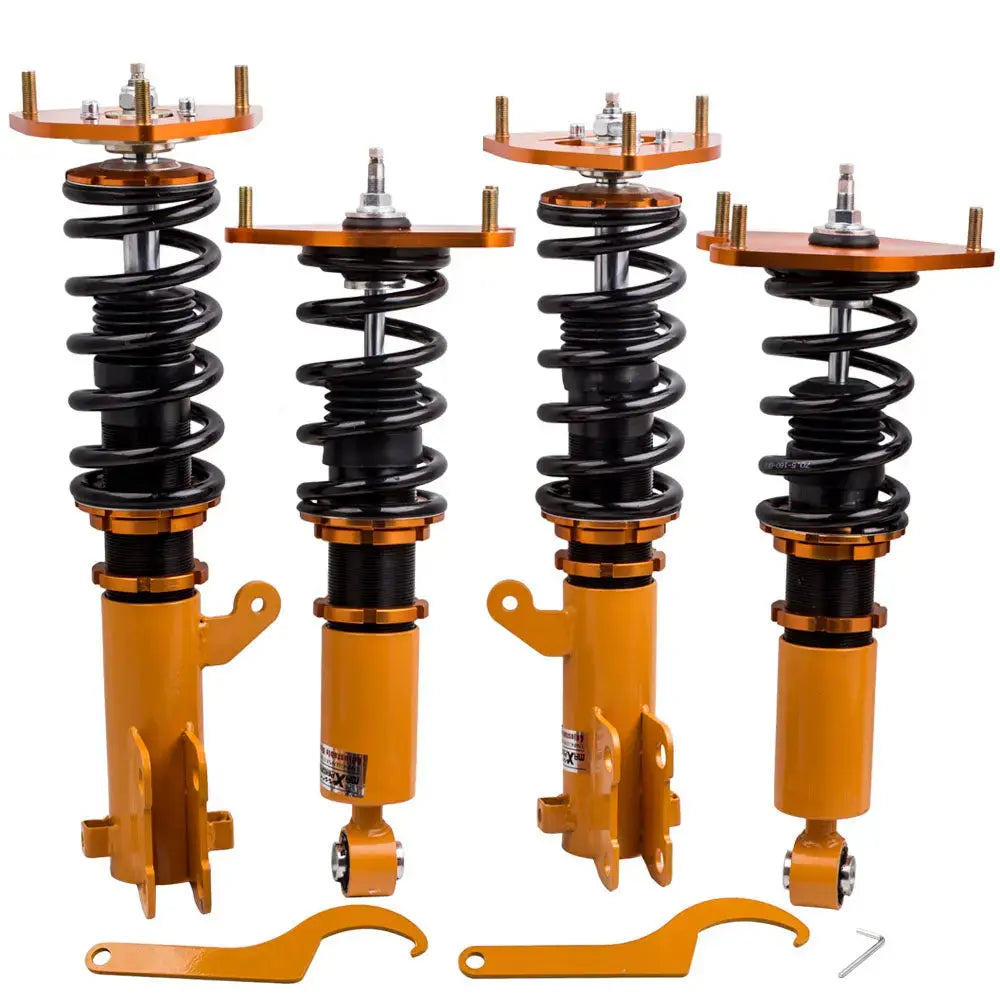

Package included: complete coilover assemblies 2 front and 2 rear
a pair of wrench for height adjustment
Dimension
Package dimension : 635120
Weight: 23900g
Feature
1\. Lowered height adjustment from 1" - 3" which allow lower center of gravity
and also add a more aggressive stance.
2\. A 24 rebound damping adjustment level allows you the ability to perfectly
dial in your coilover setup. You will experience better ride quality in all
road conditions.
3.Camber plate top mounts help to eliminate the need for a separate camber
kit.
4.Twin-Tube structure allows sufficient stroke within the shock absorber.
5.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy
installation.
6.Separate height adjustment does not affect damper stroke and height can be
adjusted with coilovers installed on the vehicle.
7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the
spring distortion is less than 0.04%. Plus the special surface treatment
improves the durability and performance.
8.Most pieces in our coilover systems, including mounts, collars and spring
perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight,
durable and rust resistant components.
9.Steel shock bodies with special surface treatment to improve the durability.
10\. Full rebuildable
