Item Description
Type: Heavy Duty performance coils! Ignition coils with Copper windings.
Materials Instruction
1. Epoxide-Resin Glue: Kyocera (Japan)
Epoxide-Resin Glue is specially developed as a isolate potting materials made by Kyocera Group. Now became the worldwide appointed brand by more than 60% company which make ignition coils.
2. Winding Wire---Elektrisola (Germany)
The Elektrisola Group is worldwide leading as a producer of fine and ultrafine enamelled copper wire (winding wire). It is produced and delivered corresponding to the industry standards IEC 60317, NEMA MW1000, JIS C3202 or to customer specific requirements. It can resist the temperature from minus 40 degrees centigrade to 180 degrees centigrade.
3. Plastic Material (PPT, PPO): SABIC (America)
PPO can resist the temperature of 180 degrees centigrade as well as voltage of 36,000 volts.
*Important* Please use the Below information to determine if the part(s) in this listing fit your vehicle.
OEM Ref # UF230
OEM # 6731303, GN10311, 5C1196, 1788313, CUF230, C629，9008019027, 9091902230, 9091902249, 9091902259, UF418, UF493
Product Specifics
Interchange Part Number: 9091902249, 9091902259
Placement on Vehicle: Front+Left
Warranty: 1 year
Brand: ECCPP
Fitment Type: Direct Replacement
UPC: Does not apply
Voltage: 12
Coil Type: Coil On Plug
Mounting Bracket Included: No
Coil Type: Coil On Plug
Mounting Bracket Included: No
Installation
Prepare the tools, park the car, and open the engine compartment
Loosen the screws of the upper cover of the engine in the picture, and remove the upper cover of the engine
Pull out the tube in the picture and put it aside (pay attention to the temperature of the engine to avoid scalding. When pulling out the vacuum tube, don't use too much force to avoid damage)
Use the ignition coil tool to pull up the ignition coil (note that the pulling force should not be too strong, pull it slowly, otherwise it will easily break the ignition coil connection wire)
Unplug the ignition coil connecting wire clip and take out the ignition coil
Put the new ignition coil into the engine, and fasten the ignition coil connecting wire clip, as shown in the figure, align the limit buckle and press the ignition coil tightly.
Install the unplugged pipe and restore it to its original appearance
Start the vehicle and use the detector to detect whether there is a fire. If there is no fire, turn off the vehicle, install the engine cover, and then cover the engine compartment cover
Includes

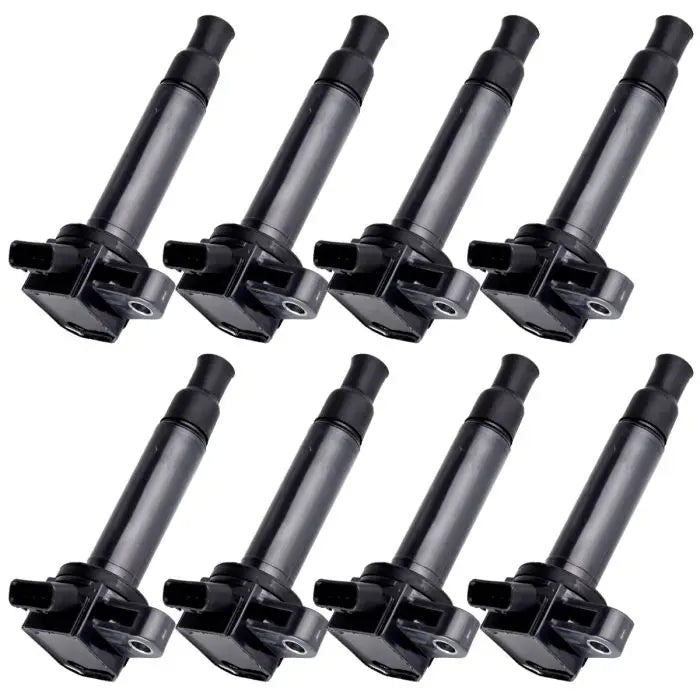

8x Warranty Ignition Coils
