Overhaul Engine Rebuild Kit (w/ Sensor Port) Fit 98-01 Toyota 2.2L DOHC 5SFE

  • Sale
  • Regular price $404.95
Shipping calculated at checkout.


*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Overhaul Engine Rebuild Kit (w/ Sensor Port) Fit 98-01 Toyota 2.2L DOHC 5SFE .
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 13101-03060

Overhaul Engine Rebuild Kit (w/ Sensor Port) Fit 98-01 Toyota 2.2L DOHC 5SFE .
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
2000-2001 TOYOTA CAMRY 2.2L 2164CC L4 CNG DOHC, (16 VALVE), ENG CODE
"5SFE"
1998-2001 TOYOTA CAMRY 2.2L 2164CC L4 DOHC, (16 VALVE), ENG CODE "5SFE"
1999-2001 TOYOTA SOLARA 2.2L 2164CC L4 DOHC, (16 VALVE), ENG CODE "5SFE"

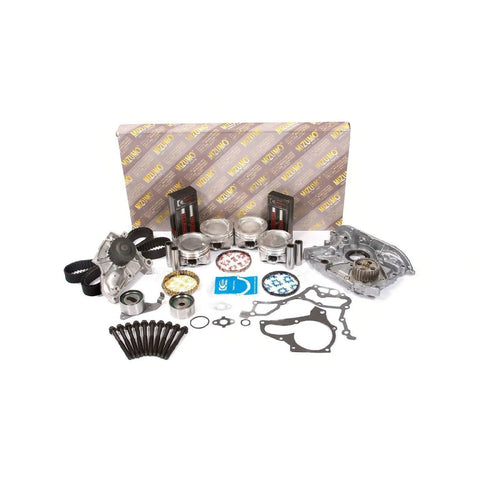

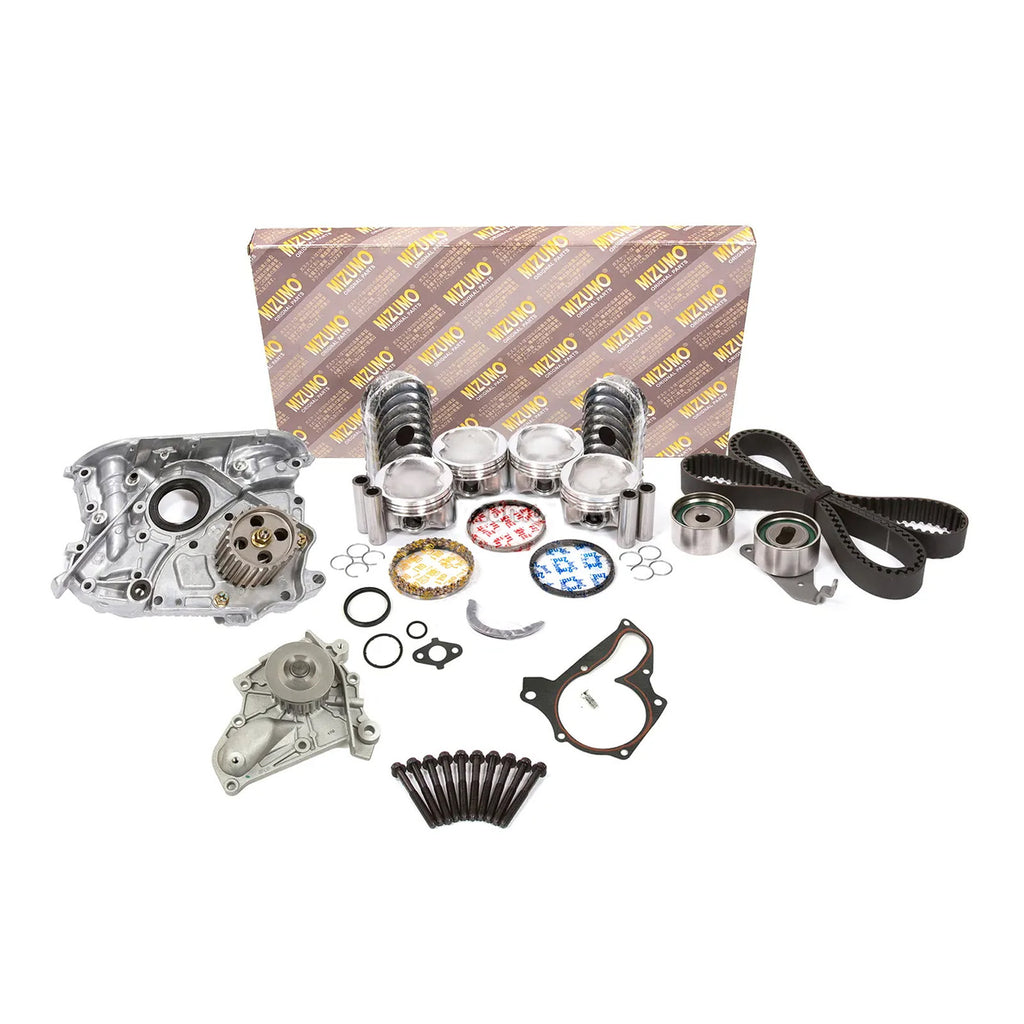

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
10 Cylinder Head Bolts
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 87.00mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 3.00mm
4 Piston Wrist Pins
8 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Belt (163 teeth)
1 GMB Roller Tensioner Bearing
1 GMB Idler Bearing
Water Pump w/ Gasket
Oil Pump (w/ Sensor Port)

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS2029](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS2029&LH_TitleDesc=1&submit=)| MM| 87.000| 87.250| 87.500|
87.750| 88.000
IN| 3.425| 3.435| 3.445| 3.455| 3.465
Piston Ring Part| Piston Information
[RS2029](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS2029&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS2029
D.jpg)![](https://mizumoauto.net/ebay/images/gallery/pistons/PS2029.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 87.000| 3.425
Comp| 32.500| 1.280
| Dist.| 1| -
---|---|---
2|
3|
| 4.500
---
| 0.177
---
Length| 56.500| 2.224
| Surface Treatment| Cir Clip|
![](https://mizumoauto.net/ebay/images/gallery/pistons/clip.jpg)| Image
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
15.000| 0.591
Pin Length| 66.000| 2.598
Pin Diameter| 22.000| 0.866
1st| 1.200| 0.047
2nd| 1.200| 0.047
Oil Ring| 3.000| 0.118
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
