Overhaul Engine Rebuild Kit (w/ Sensor Port) Fit 93-97 Toyota Geo 1.8LL 7AFE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 13101-16150-01, 94853591
Overhaul Engine Rebuild Kit (w/ Sensor Port) Fit 93-97 Toyota Geo 1.8LL 7AFE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1993-1997 GEO PRIZM 1.8L 1788CC 110CID L4 DOHC, (16 VALVE), ENG CODE
"7AFE"
1994-1997 TOYOTA CELICA 1.8L 1762CC L4 DOHC, (16 VALVE), ENG CODE "7AFE"
1993-1997 TOYOTA COROLLA 1.8L 1762CC L4 DOHC, (16 VALVE), ENG CODE "7AFE"

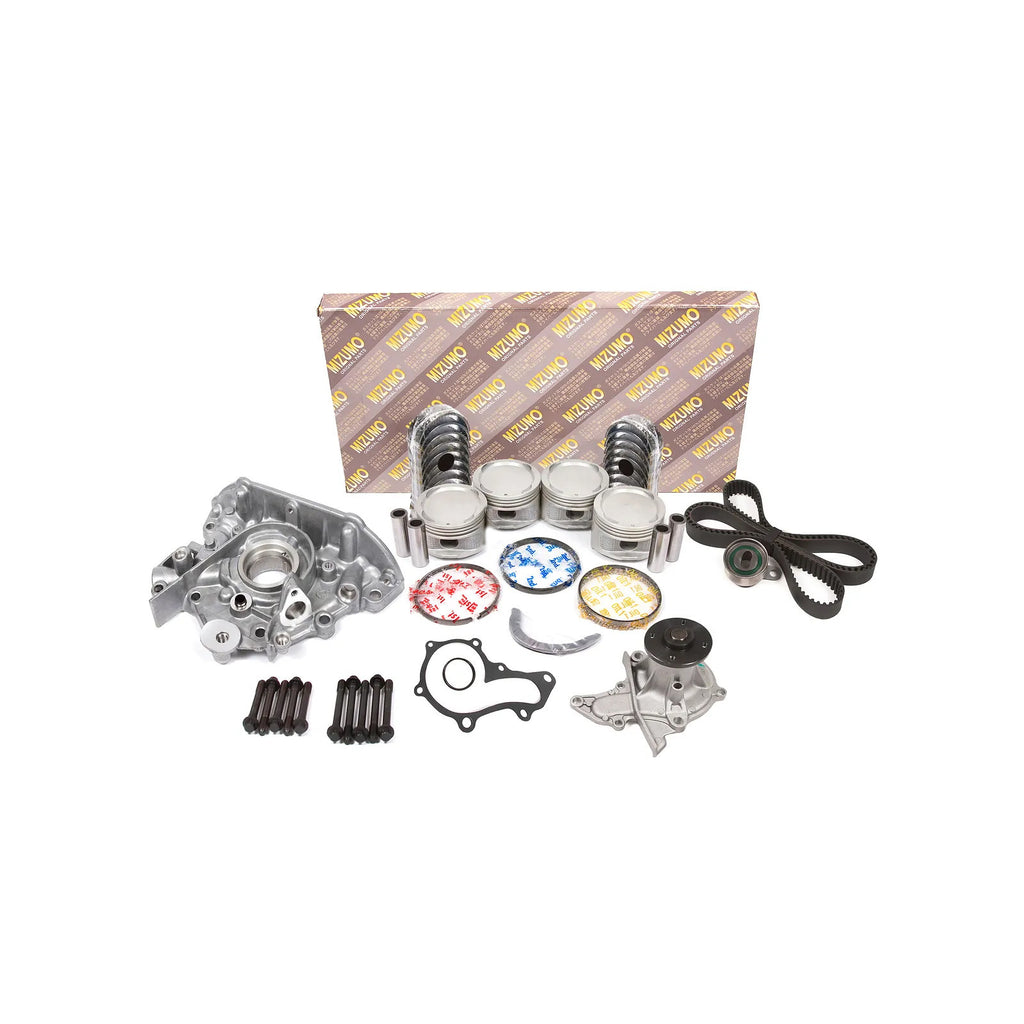

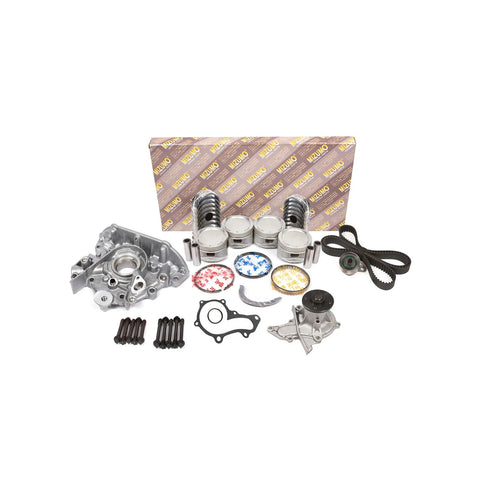

This item includes:
Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
10 Cylinder Head Bolts
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 81.00mm
1st Group: 1.20mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
4 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Belt (121 Teeth)
1 GMB Roller Tensioner Bearing
Water Pump w/ Gasket
Oil Pump (w/ Sensor Port)
Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.
Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS2015](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS2015&LH_TitleDesc=1&submit=)| MM| 81.000| 81.250| 81.500|
81.750| 82.000
IN| 3.189| 3.199| 3.209| 3.219| 3.228
Piston Ring Part| Piston Information
[RS2015](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS2015&LH_TitleDesc=1&submit=)
Specifications| MM| IN
Cylinder| 4
Bore| 81.000| 3.189
Comp| 30.500| 1.201
| Dist.| 1| -
---|---|---
2|
3|
| 3.400
---
| 0.134
---
Length| 56.000| 2.205
| Surface Treatment| Cir Clip|
| NONE
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
10.000| 0.394
Pin Length| 56.000| 2.205
Pin Diameter| 20.000| 0.787
1st| 1.200| 0.047
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
