Overhaul Engine Rebuild Kit Fit Toyota 4Runner FJ Cruiser Tacoma Tundra 1GRFE

  • Sale
  • Regular price $674.95
Shipping calculated at checkout.

 More payment options


*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Overhaul Engine Rebuild Kit Fit Toyota 4Runner FJ Cruiser Tacoma Tundra 1GRFE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 13101-0P020, 13101-31030, 13101-31120-A0

Overhaul Engine Rebuild Kit Fit Toyota 4Runner FJ Cruiser Tacoma Tundra 1GRFE.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
2003-2009 TOYOTA 4RUNNER 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG CODE
"1GRFE"
2007-2009 TOYOTA FJ CRUISER 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG
CODE "1GRFE"
2005-2012 TOYOTA TACOMA 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG CODE
"1GRFE"
2005-2006 TOYOTA TUNDRA 4.0L 3956CC 241CID V6 DOHC, (24 VALVE), ENG CODE
"1GRFE"

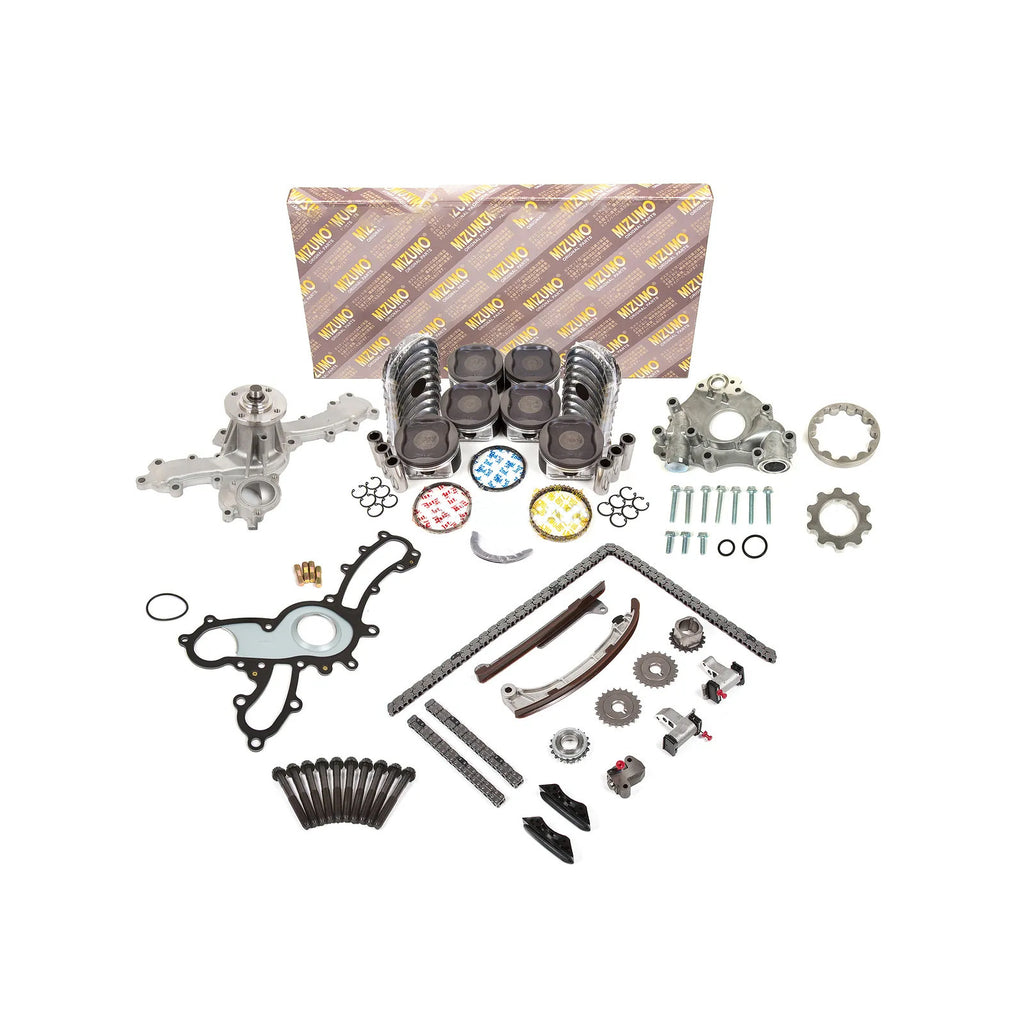

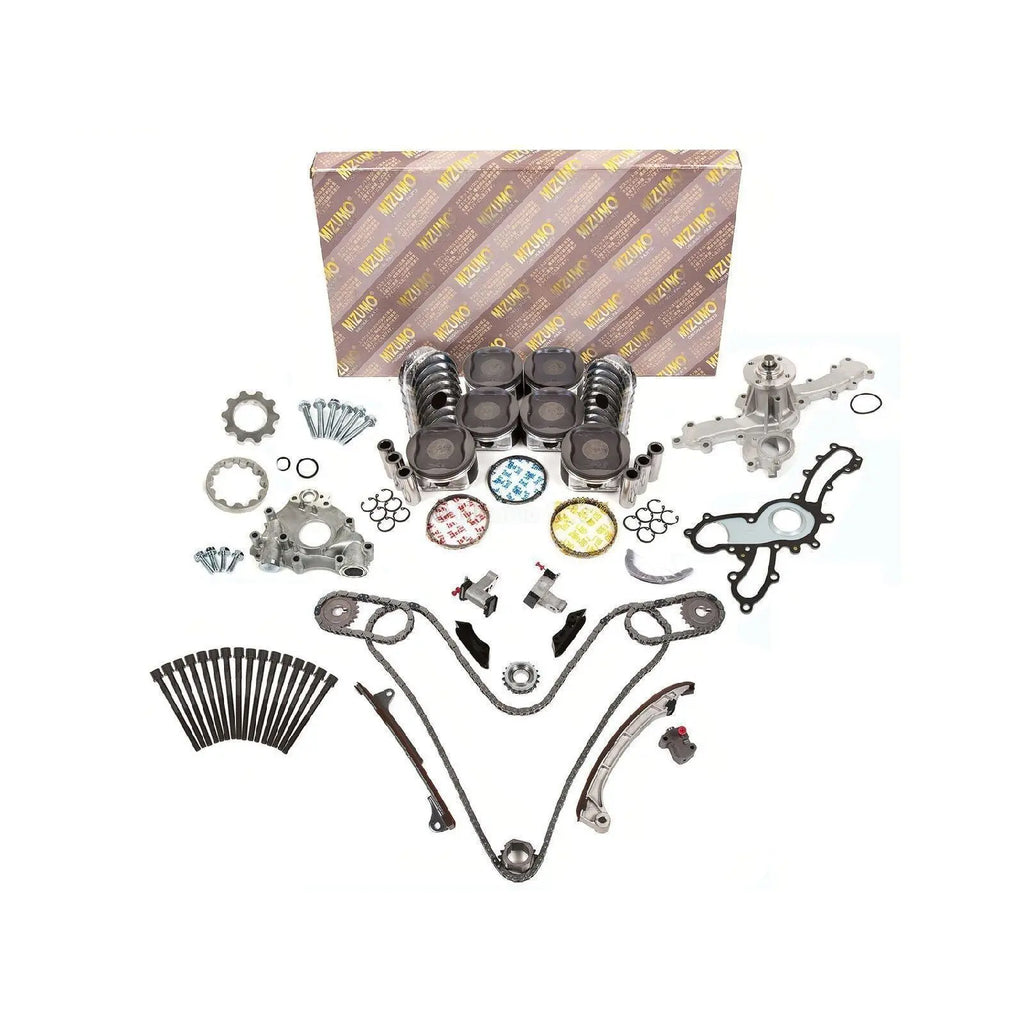

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
16 Cylinder Head Bolts
6 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 94.00mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 2.00mm
6 Piston Wrist Pins
12 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Chain lower (primary, 178 links)
2 Timing Chain upper (cam to cam)
1 Tensioner primary (lower)
1 Tensioner right (upper, secondary)
1 Tensioner left (upper, secondary)
2 Guide Rail (upper left & right)
1 Guide Rail left (fixed rail)
1 Guide Rail right (tensioner rail)
2 Cam Sprocket (secondary - exhaust)
1 Idler Sprocket (18 teeth)
1 Crank Sprocket (18 teeth)
Cam Sprockets (intake) - are not included
1 Water Pump w/ Gasket
1 Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS2050](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS2050&LH_TitleDesc=1&submit=)| MM| 94.000| 94.250| 94.500|
94.750| 95.000
IN| 3.701| 3.711| 3.720| 3.730| 3.740
Piston Ring Part| Piston Information
[RS2050](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS2050&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS2050
D.jpg)![](https://mizumoauto.net/ebay/images/gallery/pistons/PS2050.jpg)
Specifications| MM| IN
Cylinder| 6
Bore| 94.000| 3.701
Comp| 32.700| 1.287
| Dist.| 1| +
---|---|---
2|
3|
| 2.800
---
| 0.110
---
Length| 56.500| 2.224
| Surface Treatment| Cir Clip|
![](https://mizumoauto.net/ebay/images/gallery/pistons/clip.jpg)| Image
---|---|---|---
Head| Skirt
Anodized Head| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
8.000| 0.315
Pin Length| 62.000| 2.441
Pin Diameter| 22.000| 0.866
1st| 1.200| 0.047
2nd| 1.200| 0.047
Oil Ring| 2.000| 0.079
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
