Overhaul Engine Rebuild Kit Fit 99-04 Mitsubishi Montero Sport 3.5 24V.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : MD334469
Overhaul Engine Rebuild Kit Fit 99-04 Mitsubishi Montero Sport 3.5 24V.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1999-2004 MITSUBISHI MONTERO SPORT 3.5L 3497CC 215CID V6 SOHC, (24
VALVE), ENG CODE "6G74"

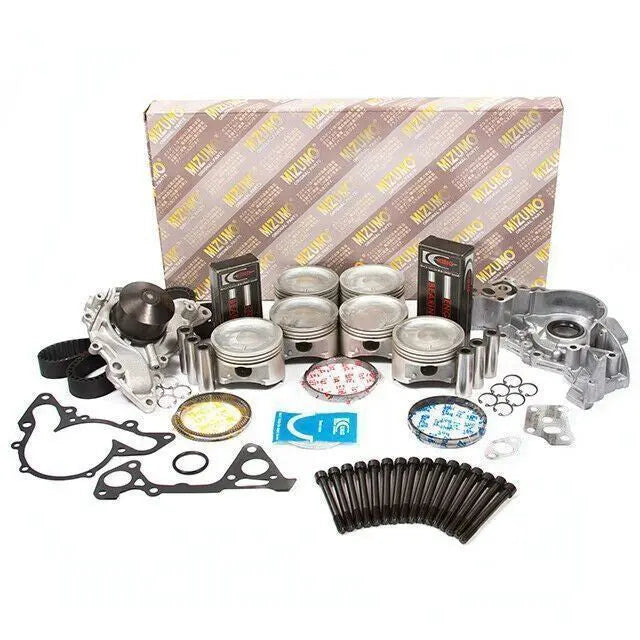

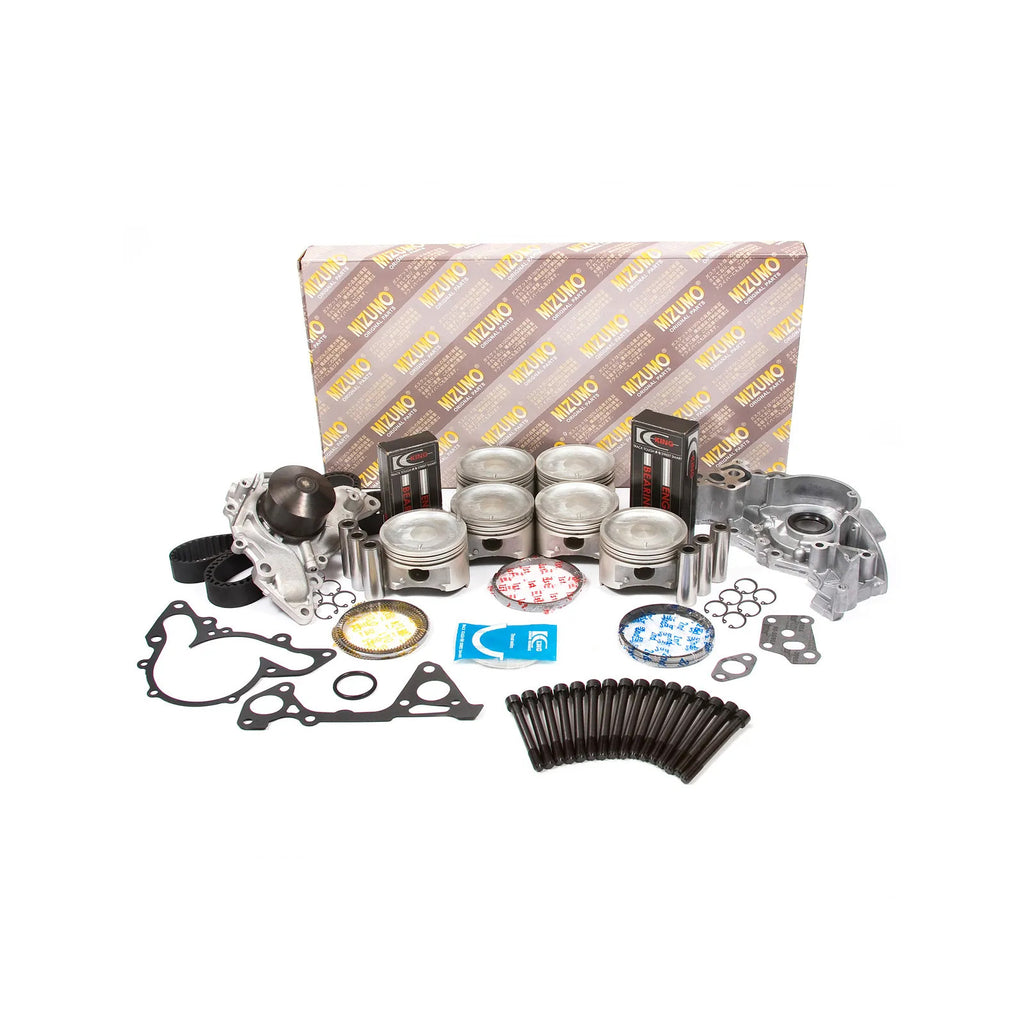

This item includes:
Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
16 Cylinder Head Bolts
6 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 93.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
6 Piston Wrist Pins
12 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Belt (195 teeth)
1 GMB Timing Belt Tensioner (bearing assembly)
1 GMB Timing Belt Idler
Water Pump w/ Gasket
Oil Pump
Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.
Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS5018](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS5018&LH_TitleDesc=1&submit=)| MM| 93.000| 93.250| 93.500|
93.750| 94.000
IN| 3.661| 3.671| 3.681| 3.691| 3.701
Piston Ring Part| Piston Information
[RS5017](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS5017&LH_TitleDesc=1&submit=)
Specifications| MM| IN
Cylinder| 6
Bore| 93.000| 3.661
Comp| 31.200| 1.228
| Dist.| 1| -
---|---|---
2|
3|
| 6.000
---
| 0.236
---
Length| 65.200| 2.567
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
10.000| 0.394
Pin Length| 64.000| 2.520
Pin Diameter| 22.000| 0.866
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
