Overhaul Engine Rebuild Kit Fit 99-02 Dodge Dakota Ram 1500 Jeep 4.7L V8

Overhaul Engine Rebuild Kit Fit 99-02 Dodge Dakota Ram 1500 Jeep 4.7L V8.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 5012362AB, 5012362AC

Overhaul Engine Rebuild Kit Fit 99-02 Dodge Dakota Ram 1500 Jeep 4.7L V8.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
2000-2001 DODGE DAKOTA 4.7L 287CID V8 SOHC, (16 VALVE), VIN CODE "N" -
JTEC DESIGN
2000-2001 DODGE DURANGO 4.7L 287CID V8 SOHC, (16 VALVE), VIN CODE "N" -
JTEC DESIGN
2002 DODGE DURANGO 4.7L 285CID V8 SOHC, (16 VALVE), VIN CODE "N" - JTEC
DESIGN
2002 DODGE RAM 1500 4.7L 287CID V8 SOHC, (16 VALVE), VIN CODE "N" - JTEC
DESIGN
1999-2001 JEEP GRAND CHEROKEE 4.7L 287CID V8 SOHC, (16 VALVE), VIN CODE
"N" - JTEC DESIGN
2002-2003 JEEP GRAND CHEROKEE 4.7L 285CID V8 SOHC, (16 VALVE), VIN CODE
"N, J" - JTEC DESIGN

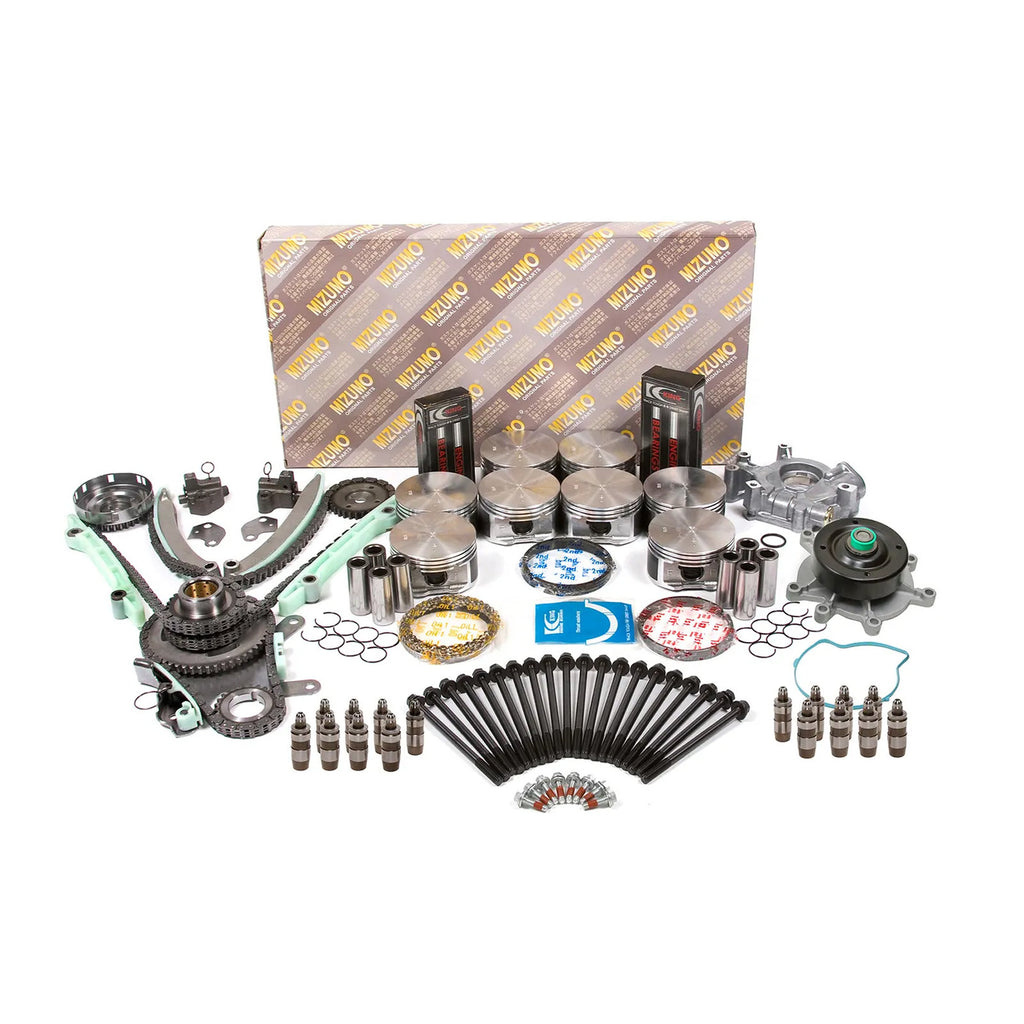

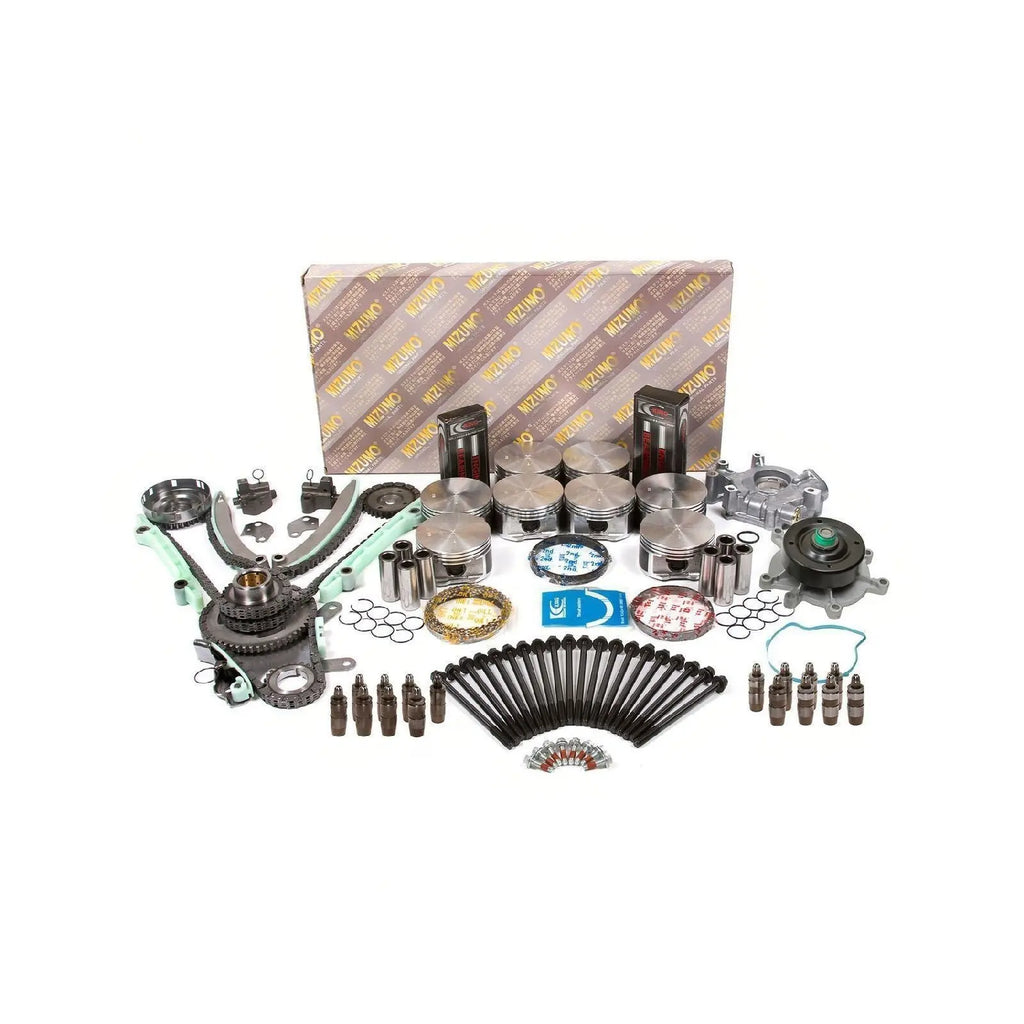

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
28 Cylinder Head Bolts (20 Long Bolts, 8 Short Bolts)
8 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 93.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
8 Piston Wrist Pins
16 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Cam Sprocket Right-Hand Side
1 Cam Sprocket Left-Hand Side
1 Crank Sprocket
1 Idler Sprocket Primary
1 Idler Sprocket Secondary
1 Timing Chain Primary (70 Link)
1 Timing Chain Secondary (2 required 106 Link)
1 Tensioner Primary
1 Tensioner Right-Hand Secondary
1 Tensioner Left-Hand Secondary
2 Guide Secondary (2 required)
2 Tensioner Arm Secondary (2 required)
Water Pump w/ Gasket
Oil Pump
16 Lifters / Lash Adjusters

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS5047](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS5047&LH_TitleDesc=1&submit=)| MM| 93.000| 93.250| 93.500|
93.750| 94.000
IN| 3.661| 3.671| 3.681| 3.691| 3.701
Piston Ring Part| Piston Information
[RS5047](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS5047&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS5047
D.jpg)
Specifications| MM| IN
Cylinder| 8
Bore| 93.000| 3.661
Comp| 31.800| 1.252
| Dist.| 1|
---|---|---
2|
3|
|
---
|
---
Length| 53.900| 2.122
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
NONE| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
13.000| 0.512
Pin Length| 59.000| 2.323
Pin Diameter| 24.022| 0.946
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
