Overhaul Engine Rebuild Kit Fit 94-04 Toyota 4Runner T100 Tacoma 2.7L DOHC 3RZFE

Overhaul Engine Rebuild Kit Fit 94-04 Toyota 4Runner T100 Tacoma 2.7L DOHC
3RZFE. Designed using state-of-the-art technology and with customers in mind.
This product is made of high-quality materials to serve you for years to come.
It will meet your needs and deliver great quality at an affordable cost.
Replace Part : 13101-75040, 13101-75041

Overhaul Engine Rebuild Kit Fit 94-04 Toyota 4Runner T100 Tacoma 2.7L DOHC
3RZFE. Designed using state-of-the-art technology and with customers in mind.
This product is made of high-quality materials to serve you for years to come.
It will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
1996-2000 TOYOTA 4RUNNER 2.7L 2694CC L4 DOHC, (16 VALVE), ENG CODE
"3RZFE"
1994-1998 TOYOTA T100 2.7L 2694CC L4 DOHC, (16 VALVE), ENG CODE "3RZFE"
1995-2004 TOYOTA TACOMA 2.7L 2694CC L4 DOHC, (16 VALVE), ENG CODE "3RZFE"

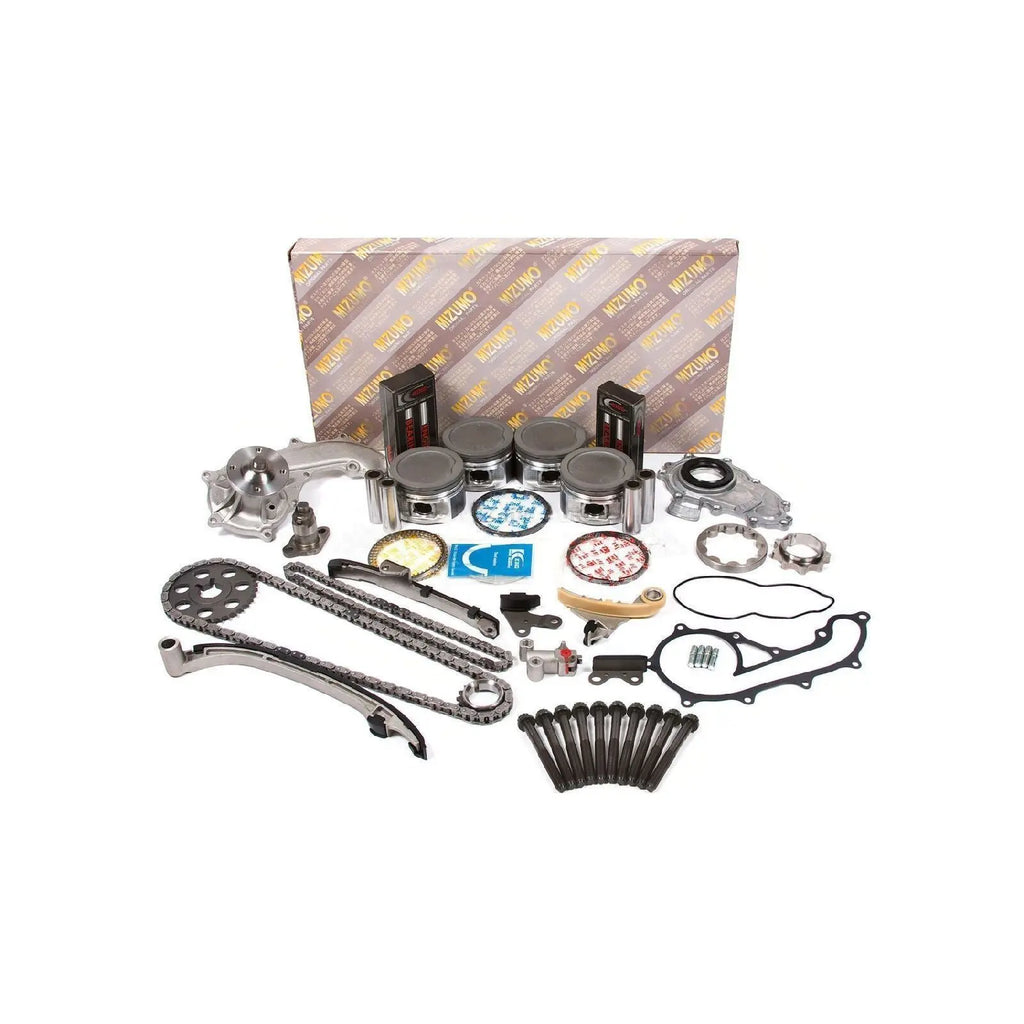

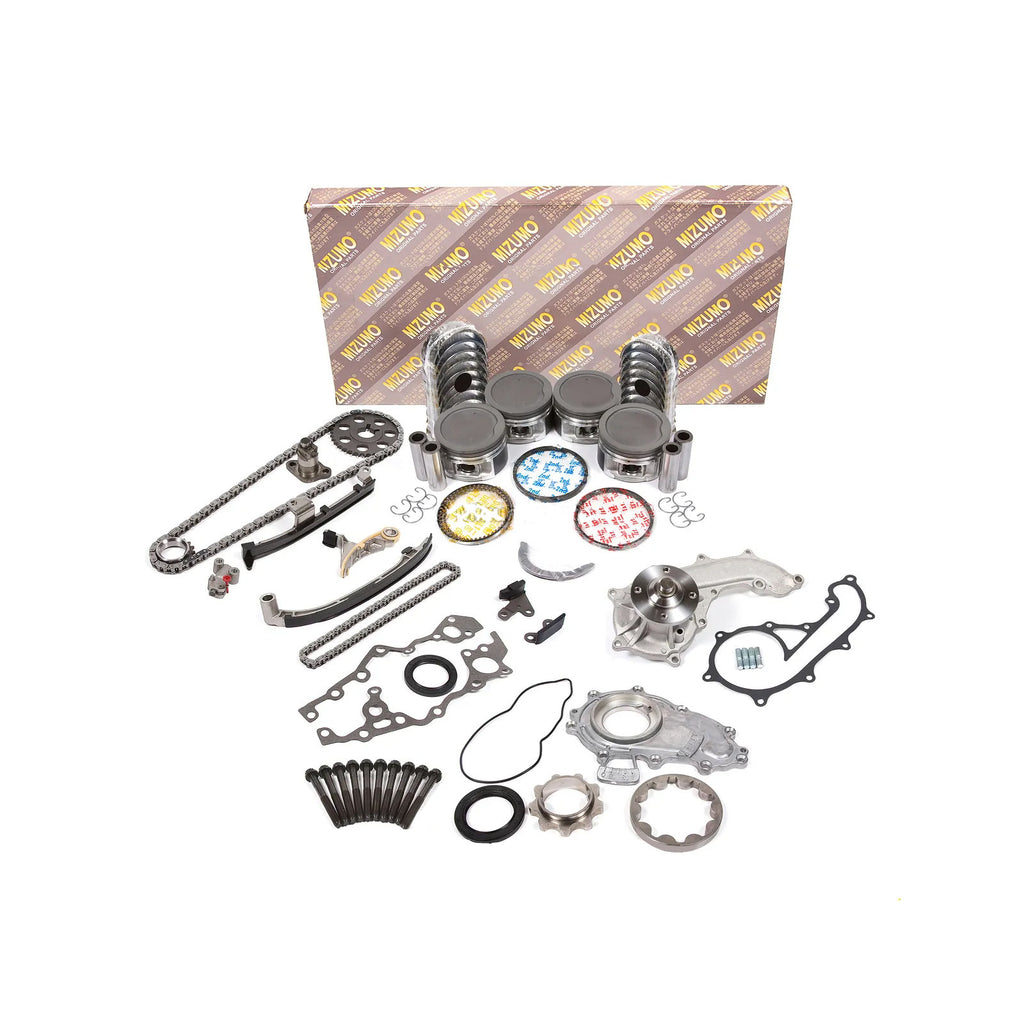

This item includes:

Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
10 Cylinder Head Bolts
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 95.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 4.00mm
4 Piston Wrist Pins
8 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Chain (outer, crank to cam, 106 links)
1 Tensioner (outer, cam chain tensioner)
1 Guide Rail (right, tensioner rail)
1 Guide Rail (left, fixed rail)
1 Timing Chain (inner, crank to balance shafts, 82 links)
1 Banlance Shaft Tensioner (balance shaft chain tensioner)
1 Guide Rail (balance shaft upper rail)
1 Guide Rail (balance shaft, left center rail)
1 Guide Rail (balance shaft, lower rail)
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS2020](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS2020&LH_TitleDesc=1&submit=)| MM| 95.000| 95.250| 95.500|
95.750| 96.000
IN| 3.740| 3.750| 3.760| 3.770| 3.780
Piston Ring Part| Piston Information
[RS2019A](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS2019A&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS2020
D.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 95.000| 3.740
Comp| 37.200| 1.465
| Dist.| 1| -
---|---|---
2|
3|
| 2.600
---
| 0.102
---
Length| 61.000| 2.402
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
Anodized Head| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
10.000| 0.394
Pin Length| 70.000| 2.756
Pin Diameter| 24.000| 0.945
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 4.000| 0.157
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
