Overhaul Engine Rebuild Kit Fit 93-97 Dodge Mitsubishi Plymouth 2.4L SOHC 4G64

Overhaul Engine Rebuild Kit Fit 93-97 Dodge Mitsubishi Plymouth 2.4L SOHC
4G64. Designed using state-of-the-art technology and with customers in mind.
This product is made of high-quality materials to serve you for years to come.
It will meet your needs and deliver great quality at an affordable cost.
Replace Part : MD188115, MD303071

Overhaul Engine Rebuild Kit Fit 93-97 Dodge Mitsubishi Plymouth 2.4L SOHC
4G64. Designed using state-of-the-art technology and with customers in mind.
This product is made of high-quality materials to serve you for years to come.
It will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
1993-1996 EAGLE SUMMIT 2.4L 2351CC L4 SOHC, (16 VALVE), VIN CODE "G"
1996-1997 MITSUBISHI ECLIPSE 2.4L 2351CC L4 SOHC, (16 VALVE), ENG CODE
"4G64"
1993-1994 MITSUBISHI EXPO LRV 2.4L 2351CC L4 SOHC, (16 VALVE), ENG CODE
"4G64"
1993-1995 MITSUBISHI EXPO 2.4L 2351CC L4 SOHC, (16 VALVE), ENG CODE
"4G64"
1994-1997 MITSUBISHI GALANT 2.4L 2351CC L4 SOHC, (16 VALVE), ENG CODE
"4G64"
1993-1994 PLYMOUTH COLT 2.4L 2351CC L4 SOHC, (16 VALVE), VIN CODE "G"

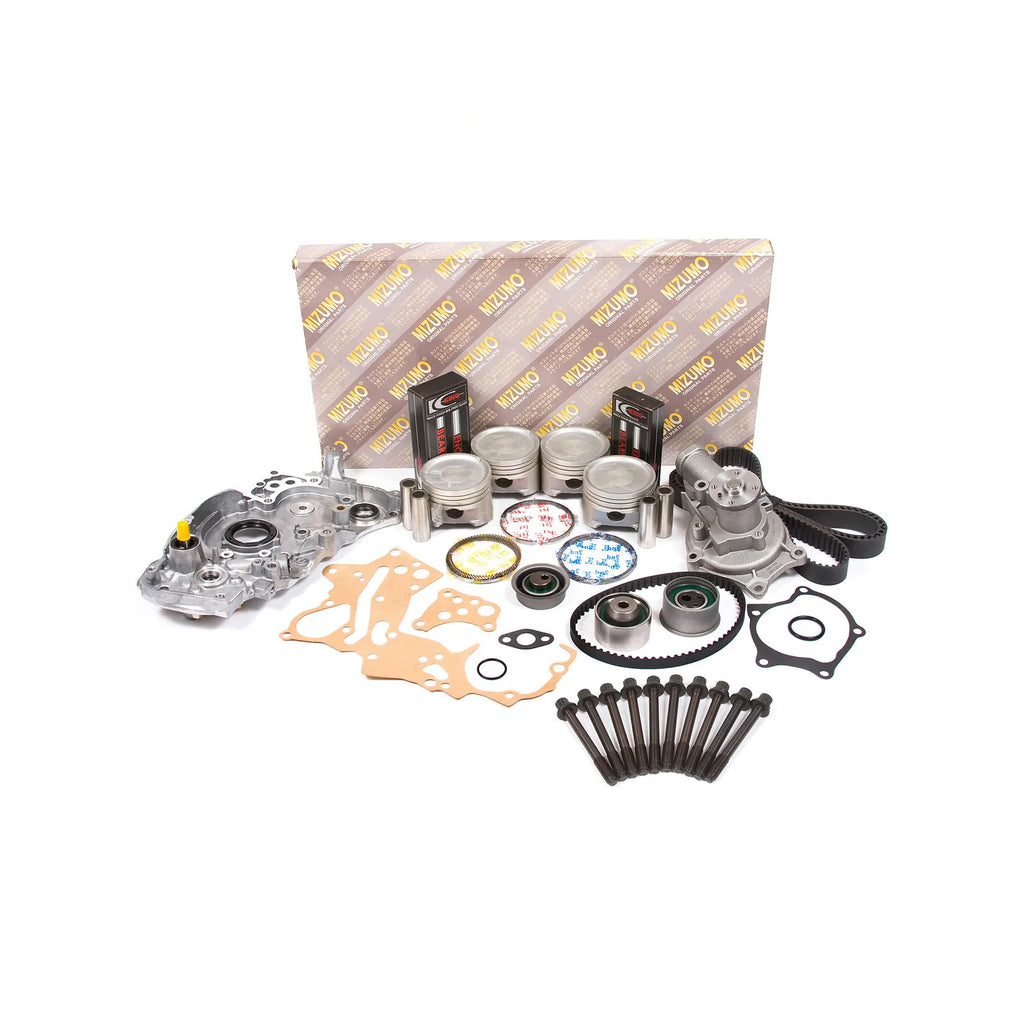

This item includes:

Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
10 Cylinder Head Bolts
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 86.50mm
1st Group: 1.20mm
2nd Group: 1.50mm
Oil Ring: 2.80mm
4 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
1 Timing Belt (124 teeth)
1 Balance Shaft Belt (65 teeth)
1 GMB Timing Belt Tensioner Bearing
1 GMB Timing Belt Balance Shaft Tensioner Bearing
1 GMB Timing Belt Idler Bearing Bearing
1 Hydraulic Tensioner (is not included)
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS5022](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS5022&LH_TitleDesc=1&submit=)| MM| 86.500| 86.750| 87.000|
87.250| 87.500
IN| 3.406| 3.415| 3.425| 3.435| 3.445
Piston Ring Part| Piston Information
[RS5005C](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS5005C&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS5022
D.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 86.500| 3.406
Comp| 35.000| 1.378
| Dist.| 1| -
---|---|---
2|
3|
| 4.300
---
| 0.169
---
Length| 67.100| 2.642
| Surface Treatment| Cir Clip|
| NONE
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
12.000| 0.472
Pin Length| 62.000| 2.441
Pin Diameter| 22.000| 0.866
1st| 1.200| 0.047
2nd| 1.500| 0.059
Oil Ring| 2.800| 0.110
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
