Overhaul Engine Rebuild Kit Fit 92-95 Honda Civic Del Sol 1.6 D16Z6

Overhaul Engine Rebuild Kit Fit 92-95 Honda Civic Del Sol 1.6 D16Z6. Designed
using state-of-the-art technology and with customers in mind. This product is
made of high-quality materials to serve you for years to come. It will meet
your needs and deliver great quality at an affordable cost. Replace Part :
13010-P28-A01

Overhaul Engine Rebuild Kit Fit 92-95 Honda Civic Del Sol 1.6 D16Z6. Designed
using state-of-the-art technology and with customers in mind. This product is
made of high-quality materials to serve you for years to come. It will meet
your needs and deliver great quality at an affordable cost.

Fits Following Models:
1992-1995 HONDA CIVIC EX, SI 1.6L 1590CC L4 SOHC, (16 VALVE), ENG CODE
"D16Z6"
1992 -1995 HONDA DEL SOL SI 1.6L 1590CC L4 SOHC, (16 VALVE), ENG CODE
"D16Z6"

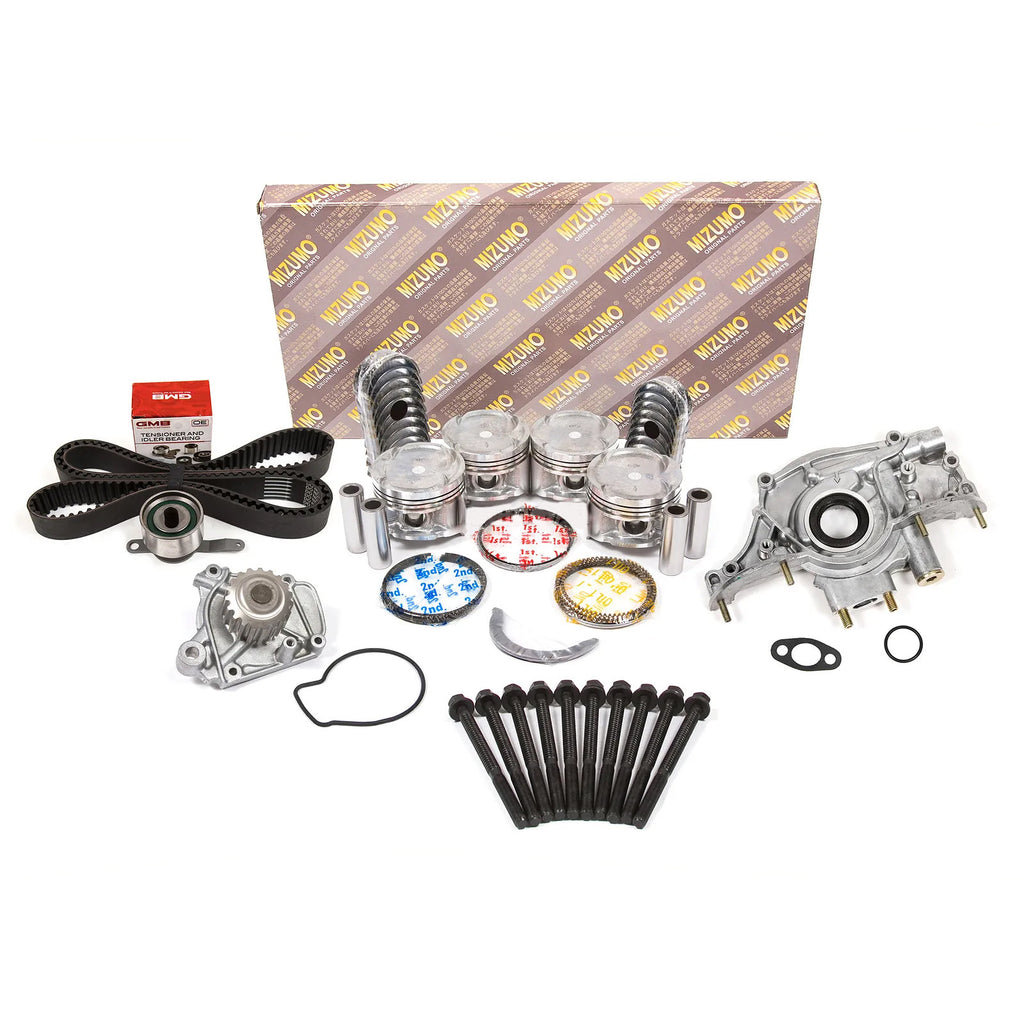

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
10 Cylinder Head Bolts
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 75.00mm
1st Group: 1.20mm
2nd Group: 1.50mm
Oil Ring: 2.80mm
4 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Belt (104 Round teeth)
1 GMB Roller Tensioner Bearing (bearing assembly)
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS4028B](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS4028B&LH_TitleDesc=1&submit=)| MM| 75.000| 75.250|
75.500| 75.750| 76.000
IN| 2.953| 2.963| 2.972| 2.982| 2.992
Piston Ring Part| Piston Information
[RS4026A](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS4026A&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS4028B
D.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 75.000| 2.953
Comp| 30.000| 1.181
| Dist.| 1| -
---|---|---
2|
3|
| 3.500
---
| 0.138
---
Length| 60.000| 2.362
| Surface Treatment| Cir Clip|
| NONE
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
27.000| 1.063
Pin Length| 56.000| 2.205
Pin Diameter| 19.000| 0.748
1st| 1.200| 0.047
2nd| 1.500| 0.059
Oil Ring| 2.800| 0.110
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
