Overhaul Engine Rebuild Kit Fit 90-95 Acura Integra 1.8 DOHC B18A1 B18B1

  • Sale
  • Regular price $404.95
Shipping calculated at checkout.

 More payment options


*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Overhaul Engine Rebuild Kit Fit 90-95 Acura Integra 1.8 DOHC B18A1 B18B1.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 13010-P54-000, 13101-PR4-000

Overhaul Engine Rebuild Kit Fit 90-95 Acura Integra 1.8 DOHC B18A1 B18B1.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
1990-1993 ACURA INTEGRA GS, LS, RS 1.8L 1834CC L4 DOHC, (16 VALVE), ENG
CODE "B18A1"
1994-1995 ACURA INTEGRA GS, LS, RS 1.8L 1834CC L4 DOHC, (16 VALVE), ENG
CODE "B18B1"

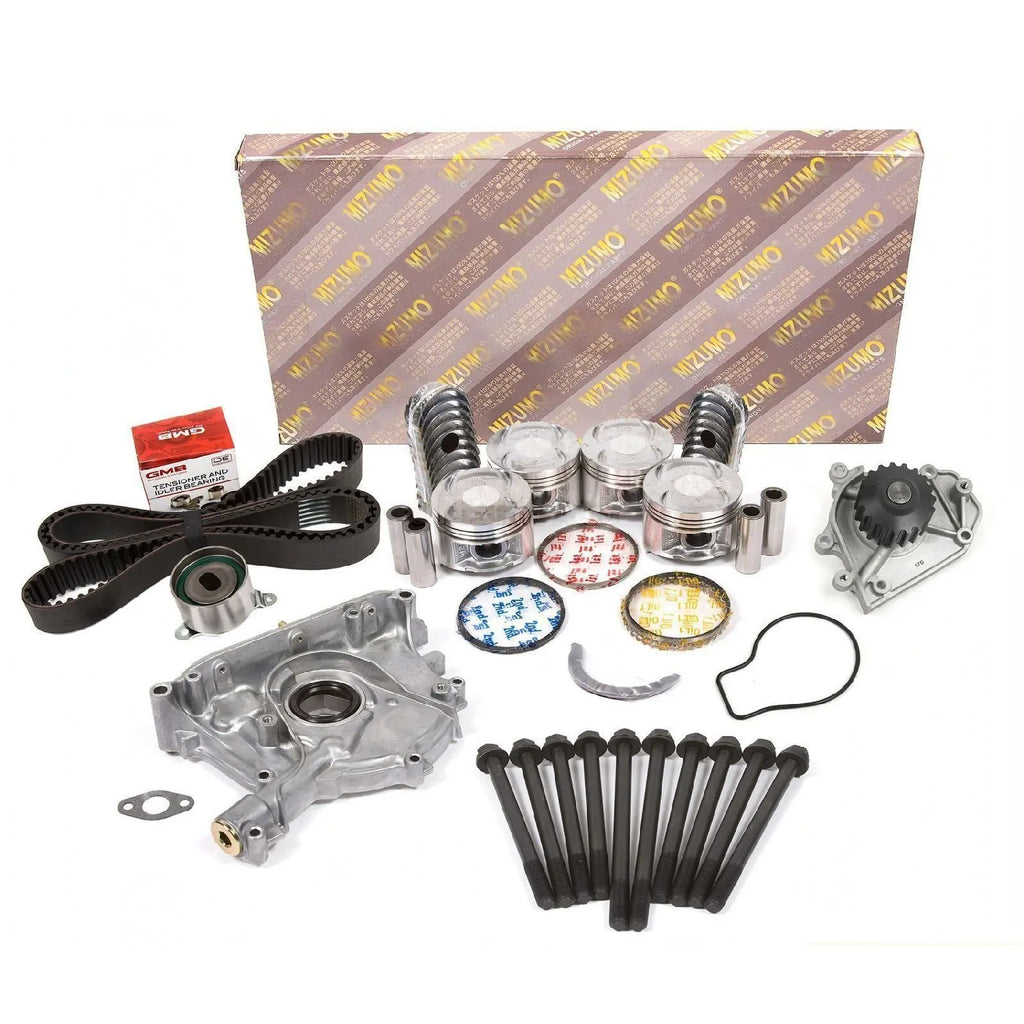

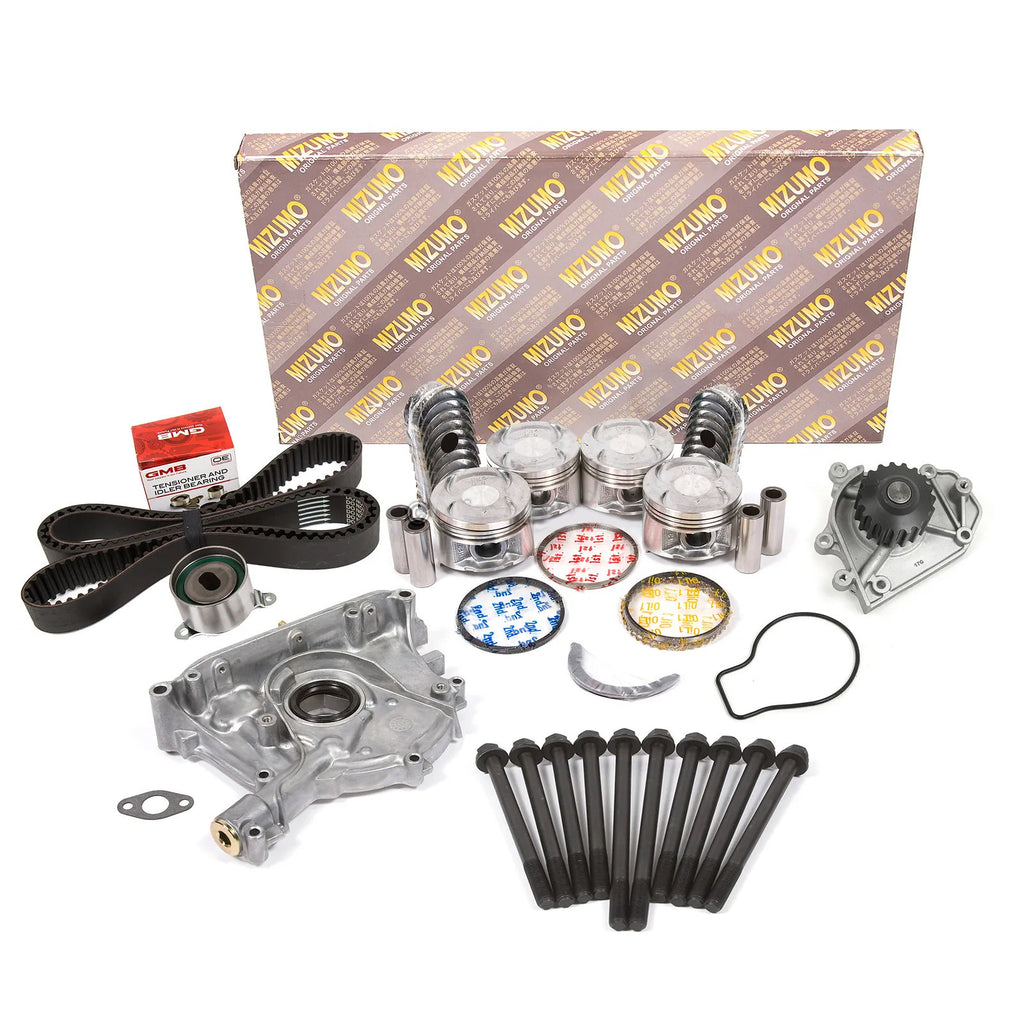

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
10 Cylinder Head Bolts (2 Long Bolts, 8 Short Bolts)
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 81.00mm
1st Group: 1.00mm
2nd Group: 1.20mm
Oil Ring: 2.80mm
4 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Belt (125 teeth)
1 GMB Tensioner
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS4011](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS4011&LH_TitleDesc=1&submit=)| MM| 81.000| 81.250| 81.500|
81.750| 82.000
IN| 3.189| 3.199| 3.209| 3.219| 3.228
Piston Ring Part| Piston Information
[RS4011](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS4011&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS4011
D.jpg)![](https://mizumoauto.net/ebay/images/gallery/pistons/PS4011.jpg)
Specifications| MM| IN
Cylinder| 4
Bore| 81.000| 3.189
Comp| 30.000| 1.181
| Dist.| 1| -
---|---|---
2|
3|
| 1.300
---
| 0.051
---
Length| 60.000| 2.362
| Surface Treatment| Cir Clip|
![](https://mizumoauto.net/ebay/images/gallery/pistons/clip.jpg)| NONE
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
14.000| 0.551
Pin Length| 56.000| 2.205
Pin Diameter| 21.000| 0.827
1st| 1.000| 0.039
2nd| 1.200| 0.047
Oil Ring| 2.800| 0.110
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
