Overhaul Engine Rebuild Kit Fit 85-95 Toyota 2.4L SOHC 22R 22RE 22REC.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 13101-35032-01, 13101-35032-02
Overhaul Engine Rebuild Kit Fit 85-95 Toyota 2.4L SOHC 22R 22RE 22REC.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1985-1995 TOYOTA 4RUNNER 2.4L 2366CC L4 SOHC, (8 VALVE), VIN R, ENG CODE
"22R, 22RE, 22REC"
1985-1995 TOYOTA PICKUP 2.4L 2366CC L4 SOHC, (8 VALVE), VIN R, ENG CODE
"22R, 22RE, 22REC"
1985 TOYOTA CELICA 2.4L 2366CC L4 SOHC, (8 VALVE), VIN R, ENG CODE "22R,
22RE, 22REC"

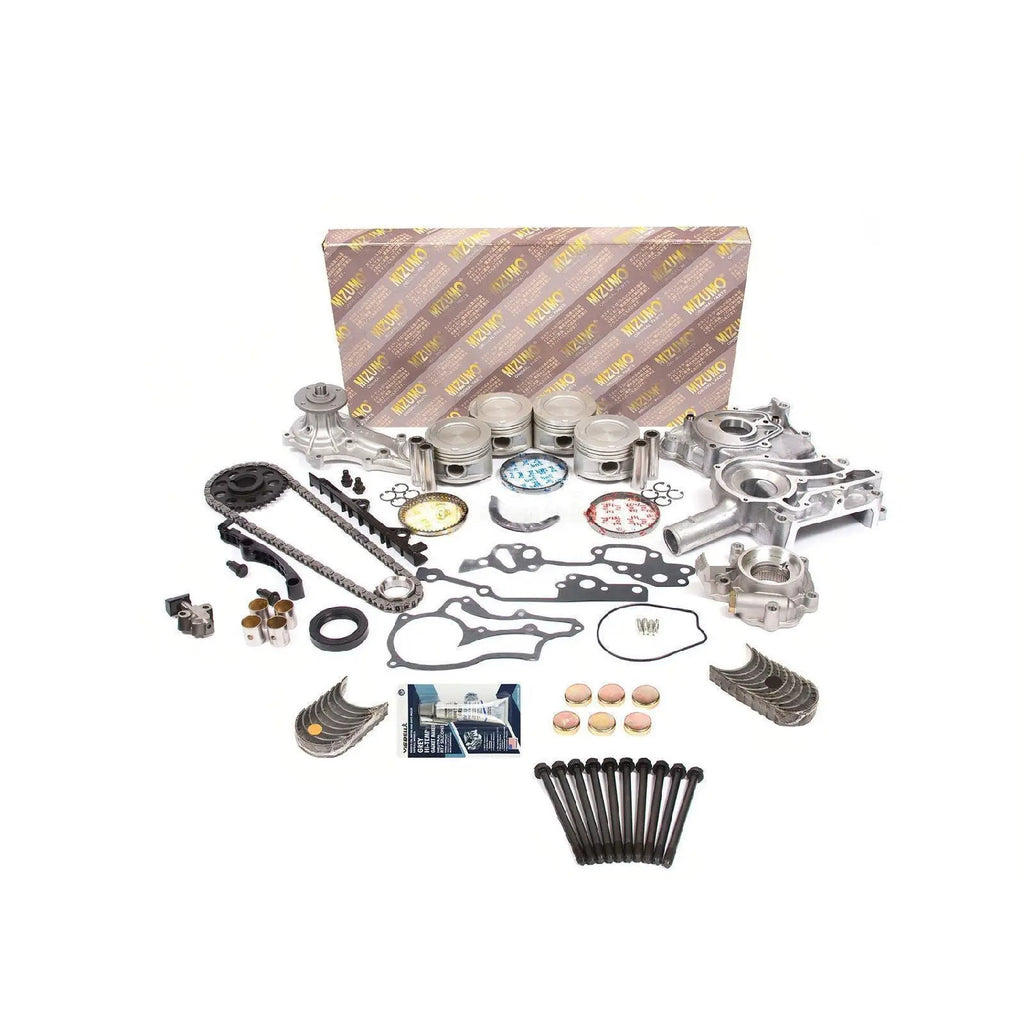

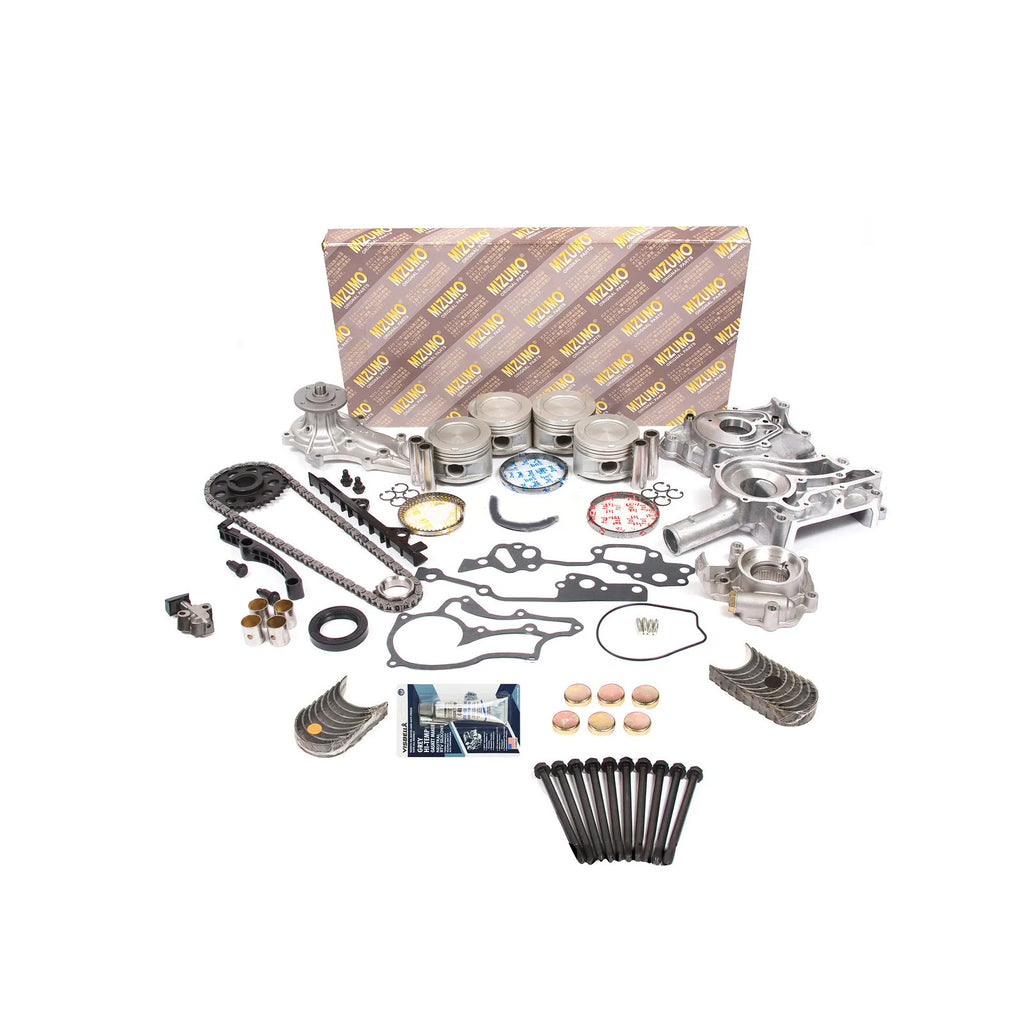

This item includes:
Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
10 Cylinder Head Bolts
4 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 92.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 4.00mm
4 Piston Wrist Pins
8 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Chain (96 links - single row)
1 Guide Rail Right (curved - plastic)
1 Guide Rail Left (straight - plastic)
1 Cam Sprocket (36 teeth)
1 Crank Sprocket (18 teeth)
1 Tensioner
Water Pump w/ Gasket
Oil Pump
Timing Chain Cover (Length 11-1/8")
Freeze Plugs
Connecting Rod Pin Bushings
Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS2000](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS2000&LH_TitleDesc=1&submit=)| MM| 92.000| 92.250| 92.500|
92.750| 93.000
IN| 3.622| 3.632| 3.642| 3.652| 3.661
Piston Ring Part| Piston Information
[RS2000](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS2000&LH_TitleDesc=1&submit=)
Specifications| MM| IN
Cylinder| 4
Bore| 92.000| 3.622
Comp| 34.400| 1.354
| Dist.| 1| -
---|---|---
2|
3|
| 1.600
---
| 0.063
---
Length| 63.400| 2.496
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
26.000| 1.024
Pin Length| 70.000| 2.756
Pin Diameter| 22.000| 0.866
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 4.000| 0.157
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
