Overhaul Engine Rebuild Kit Fit 05-06 Chrysler 300 Dodge Charger Magnum 2.7L.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 5003427AA, 5018627AA, 5018627AB
Overhaul Engine Rebuild Kit Fit 05-06 Chrysler 300 Dodge Charger Magnum 2.7L.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
2005-2006 CHRYSLER 300 2.7L 2700CC 167CID V6 DOHC,(24 VALVE), VIN CODE
"R"
2006 DODGE CHARGER 2.7L 2700CC 167CID V6 DOHC,(24 VALVE), VIN CODE "R"
2005-2006 DODGE MAGNUM 2.7L 2700CC 167CID V6 DOHC,(24 VALVE), VIN CODE
"R"

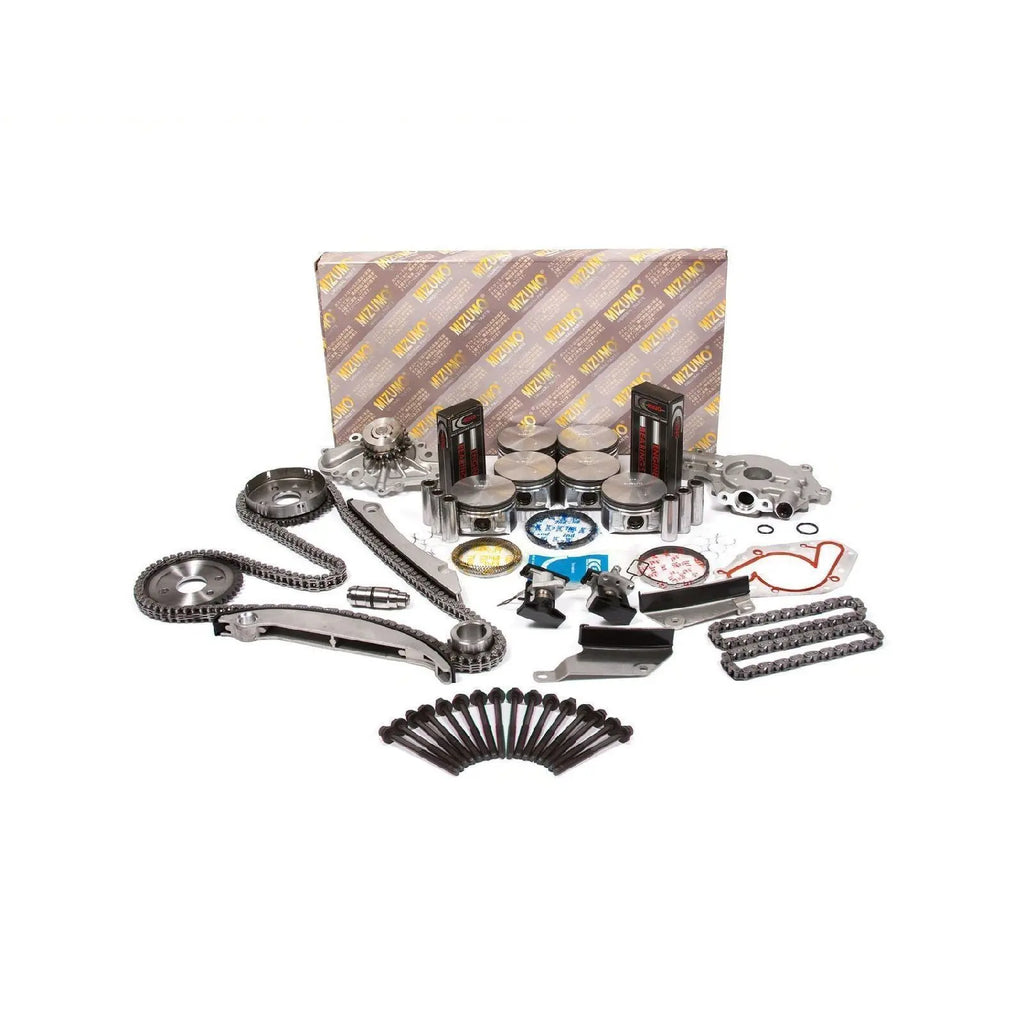

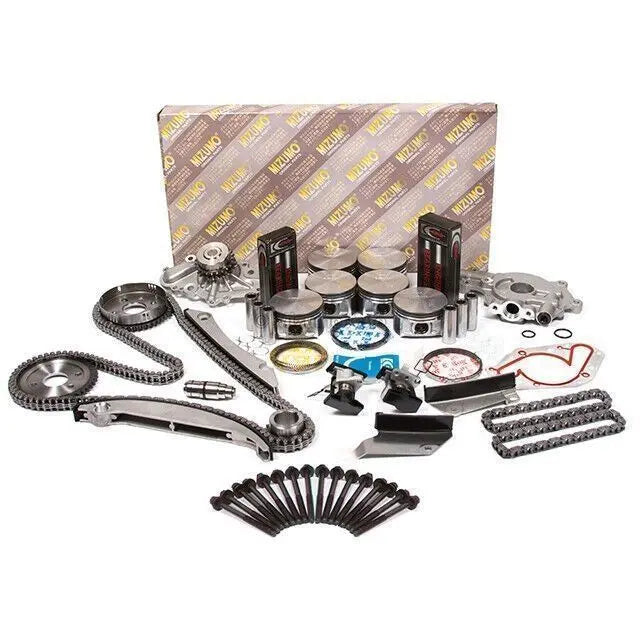

This item includes:
Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
16 Cylinder Head Bolts
6 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 86.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
6 Piston Wrist Pins
12 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Chain lower (180 link, 3/8" pitch)
2 Cam Chain upper (44 links)
1 Tensioner upper (left)
1 Tensioner upper (right)
1 Guide Rail (left / long fixed rail)
1 Guide Rail (left / short fixed rail)
1 Guide Rail (right / short fixed rail)
1 Guide Rail pivots (right / tensioner rail)
1 Crank Sprocket (21 teeth)
1 Cam Sprocket right (42 teeth "right only")
1 Cam Sprocket left (only fits NGC power control module)
Tensioner lower / primary tensioner - is not included
Water Pump w/ Gasket
Oil Pump
Primary Lower Tensioner (Push-in)
Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.
Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS5027](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS5027&LH_TitleDesc=1&submit=)| MM| 86.000| 86.250| 86.500|
86.750| 87.000
IN| 3.386| 3.396| 3.406| 3.415| 3.425
Piston Ring Part| Piston Information
[RS5027](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS5027&LH_TitleDesc=1&submit=)
Specifications| MM| IN
Cylinder| 6
Bore| 86.000| 3.386
Comp| 31.200| 1.228
| Dist.| 1|
---|---|---
2|
3|
|
---
|
---
Length| 53.200| 2.094
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
Anodized Head| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
7.000| 0.276
Pin Length| 60.000| 2.362
Pin Diameter| 22.000| 0.866
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
