Overhaul Engine Rebuild Kit Fit 02-03 Dodge Ram 1500 Jeep Liberty 3.7

Overhaul Engine Rebuild Kit Fit 02-03 Dodge Ram 1500 Jeep Liberty 3.7.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost. Replace
Part : 5019316AA

Overhaul Engine Rebuild Kit Fit 02-03 Dodge Ram 1500 Jeep Liberty 3.7.
Designed using state-of-the-art technology and with customers in mind. This
product is made of high-quality materials to serve you for years to come. It
will meet your needs and deliver great quality at an affordable cost.

Fits Following Models:
2002-2003 DODGE RAM 1500 3.7L 226CID V6 SOHC, (12 VALVE), VIN CODE "K" -
JTEC DESIGN
2002-2003 JEEP LIBERTY 3.7L 226CID V6 SOHC, (12 VALVE), VIN CODE "K" -
JTEC DESIGN

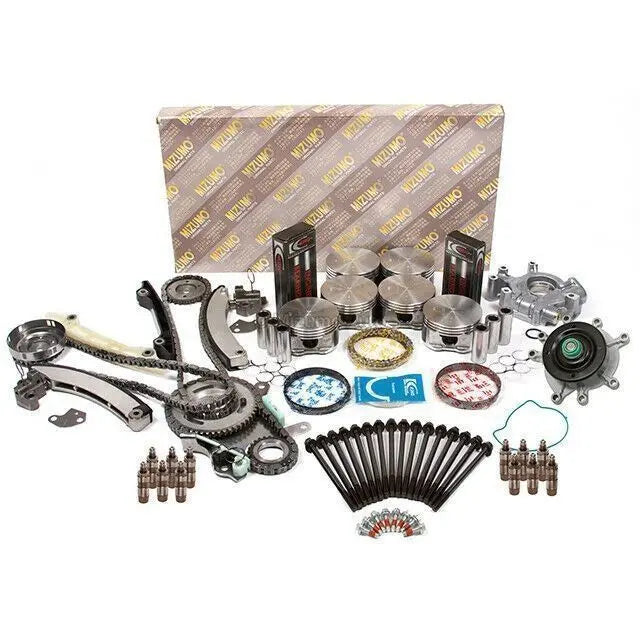

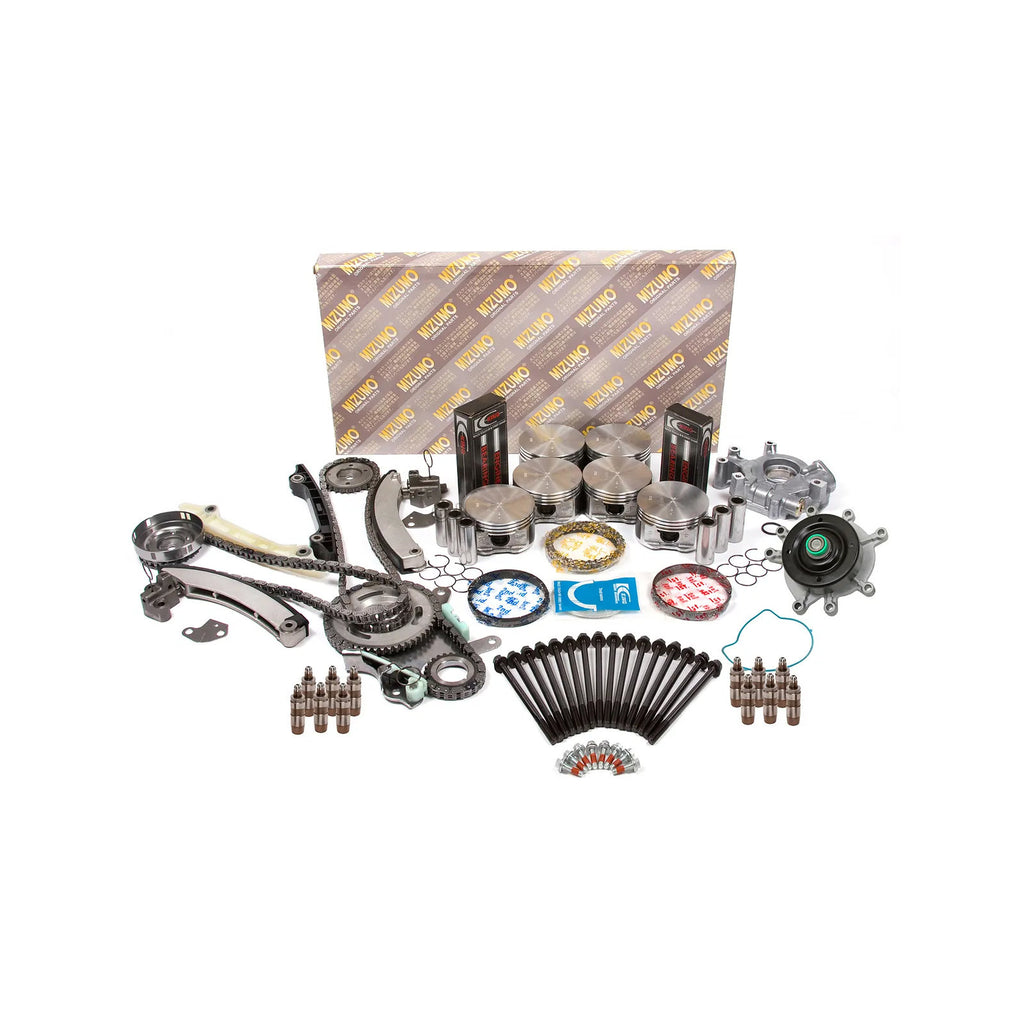

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
24 Cylinder Head Bolts (16 Long Bolts, 8 Short Bolts)
6 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 93.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
6 Piston Wrist Pins
12 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Chain Lower (primary 70 links)
2 Timing Chain (cam drive 94 links)
2 Tensioner (left & right)
1 Guide Rail Right (right chain fixed rail)
1 Guide Rail Left (left chain fixed rail)
2 Guide Rail (left & right tensioner rail)
1 Cam Sprocket Right (26 teeth has reluctor ring)
1 Cam Sprocket Left ( 26 teeth - JTEC power control module)
1 Crank Sprocket (25 teeth)
1 Idler Sprocket (primary 50 teeth)
Idler Sprocket & Blance Shaft Gears - are not included
Water Pump w/ Gasket
Oil Pump
12 Lifters / Lash Adjusters

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS5037](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS5037&LH_TitleDesc=1&submit=)| MM| 93.000| 93.250| 93.500|
93.750| 94.000
IN| 3.661| 3.671| 3.681| 3.691| 3.701
Piston Ring Part| Piston Information
[RS5037](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS5037&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS5037
D.jpg)
Specifications| MM| IN
Cylinder| 6
Bore| 93.000| 3.661
Comp| 31.800| 1.252
| Dist.| 1|
---|---|---
2|
3|
|
---
|
---
Length| 53.900| 2.122
| Surface Treatment| Cir Clip|
| Image
---|---|---|---
Head| Skirt
NONE| Moly Skirt
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
13.000| 0.512
Pin Length| 59.000| 2.323
Pin Diameter| 24.022| 0.946
1st| 1.500| 0.059
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
