Please check fitment notes & description for accurate information.
2005-2010 Chrysler 300 Upstream or Downstream
2007-2009 Chrysler Aspen Upstream or Downstream
2005-2008 Chrysler Pacifica Upstream or Downstream
2003-2010 Chrysler PT Cruiser Upstream or Downstream
2004-2010 Chrysler Sebring Upstream or Downstream
2008-2010 Chrysler Town & Country Upstream or Downstream
2008-2010 Dodge Avenger Upstream or Downstream
2004-2007 Dodge Caravan Upstream
2008-2010 Dodge Challenger Upstream or Downstream
2006-2010 Dodge Charger Upstream or Downstream
2001-2010 Dodge Dakota Upstream
2001-2009 Dodge Durango Upstream or Downstream
2008-2010 Dodge Grand Caravan Upstream or Downstream
2009-2010 Dodge Journey Upstream or Downstream
2005-2008 Dodge Magnum Upstream or Downstream
2003-2005 Dodge Neon Upstream or Downstream
2007 Dodge Nitro Downstream
2008 Dodge Nitro Upstream
2002-2003 Dodge Ram 2500 Upstream or Downstream
2001-2003 Dodge Ram 3500 Upstream or Downstream
2001-2007 Jeep Grand Cherokee Upstream or Downstream
2002-2004 Jeep Liberty Upstream or Downstream
2001-2004 Jeep TJ Upstream or Downstream
2001-2004 Jeep Wrangler Upstream or Downstream
2006 Mitsubishi Raider Upstream or Downstream
Product Specifics

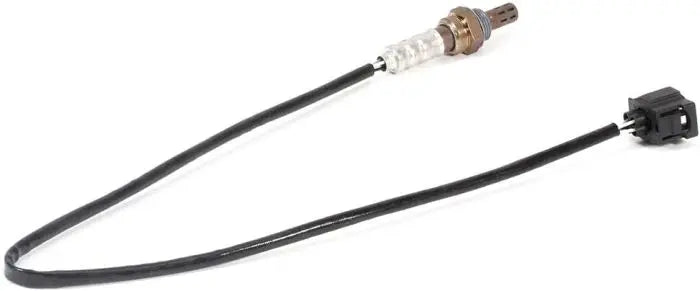

Manufacturer Part Number: E05054400CP
Type: Oxygen Sensor
Brand: ECCPP
Warranty: 1 Year
UPC: 601209318769
Interchange Part Number: o2 sensor cost, 02 sensor, heated oxygen sensor car
Other Part Number: ES20197A
Superseded Part Number: 15510-A
Custom Bundle: No
Modified Item: No
Number of Pieces: 1
Fitment Type: Direct Replacement
Thread Size: M18
Terminal Type: Blade
Universal Or Specific Fit: Specific
Attachment Method: Screw-On
Connector Gender: Female
Wire Harness Length: 22.83 IN
Sensor Type: Heated
Wire Quantity: 4
Output Signal Range: 0.2V To 0.8V
Mounting Type: Threaded
Pin Quantity: 4
Position: Upstream, Downstream, Sensor 1, Sensor 2
How do I know the O2 sensor is good or not
Check engine light on
A reduction in fuel economy.
Your catalytic converter fails unexpectedly
Exhaust emissions reach undesirable levels.
Installation
How to install the oxygen sensor?
Step 1 - Some sensors are equipped with a heat shield that must be removed before the sensor removal, this is performed by removing any mounting bolts.
Step 2 - By using a regular socket it minimizes potential damage to the sensor body and the threads, this technique helps avoid stripping the old sensor upon removal.
Step 3 - Then, locate and disconnect the wiring connector, this step should be done before removing the sensor if the wiring is still attached.
Step 4 - Its important that the wiring harness connectors are exactly the same, each sensor is unique to it's position and is located in the system by its connector configuration. (Note: some replacement sensors have a universal electrical connector that must be configured to the wiring of the old sensor.)
Step 5 - Use a small wire brush to help clean the threaded port to ensure a proper seal of the new sensor. Gently install the new oxygen sensor by hand while keeping the wiring and connector free from bends.
Step 6 - Gently tighten the sensor while keeping wiring free from damage, these sensors need to be fairly snug to avoid leakage.
Step 7 - Once the sensor is tightened, reinstall any heat shields or bracing that had to be removed.
Step 8 - After the heat shield has been reinstalled, mount the connector to it's holder and reattach the connector back onto the wiring harness. If the car has diagnostic trouble codes, they will need to be cleared.
Must Know Before Buying
The following information is for instructional and guidance reference only. We try and make them as accurate as we can.
If Check Engine Light is on or an OBDII Trouble/Fault code occurs after installation, check the sensor with a voltmeter as below.
If the sensor is good, further diagnosis is required. There're many different codes for specific functional failures, which are NOT necessarily relevant to the sensor. Find out what the Code means before leaving any feedbacks.
Items that have been installed, altered or contaminated are non-returnable.
1. ONLY a defective sensor after tested by a voltmeter is applied to manufacturer warranty.
2. 20% restocking fee is required if buyer bought wrong items due to not paying attention to fitment information and ask for return.
The Price, Quality & Functionality of the O2 Sensor is fully covered under our warranty & return policy. However, refund for any labor cost, expense in a dealer shop or damage due to wrong installation is NOT covered.
