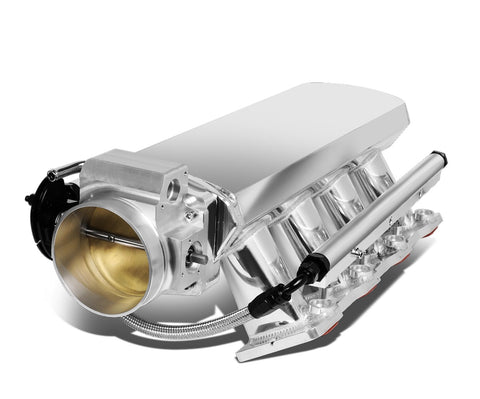

-Intake Manifold Height: 9.00 inches (approx. 3 inches higher than stock)
-Material Thickness: 3mm
-Throttle Body Opening: 102mm
-Intake total length: 20 inches
-3/4 high flow fuel rails: 2 included
-Vacuum Ports: 3
-Fabrication: TIG Welded Aluminum
-Throttle Body: Included
-Gaskets: Included
-Hardware: Included
-Fuel Rails:Included
-Fuel crossover line: Included
Features:
-3mm Sheet Metal Aluminum
-The intake will not bend or flex With Boost Or Vacuum.
-Fuel Rails With Braided Fuel Line Is Included
-These will fit cathedral style LS1 LS2 LS6 4.8/5.3/5.7/6.0 heads
-Not only does this manifold make your engine look just amazing when you pop the hood, it also adds a TON of air flow!!
This is a must have for any high performance racing engine!
***NOTE: PLEASE NOTE FACTORY VALLEY COVER MAY NEED TO BE MODIFIED TO FIT THE INTAKE MANIFOLD. FUEL RAILS WILL BE BLACK, POLISHED ARE NO LONGER IN PRODUCTION.
Product Disclaimer: This product is not designed to meet emissions/noise standards and is not for street or highway use. This product is not certified and may not be legal for use on emissions-controlled vehicles in any country/jurisdiction. Any other use, including recreational off-road, may violate local, state, and federal laws. Dynamic Performance Tuning does not implicitly or explicitly confirm the legality of using any products it sells on public roads; that is entirely the customer's responsibility. Dynamic Performance Tuning will not ship CARB restricted products into CARB restricted areas under any circumstances. ***OFF-ROAD USE ONLY***
