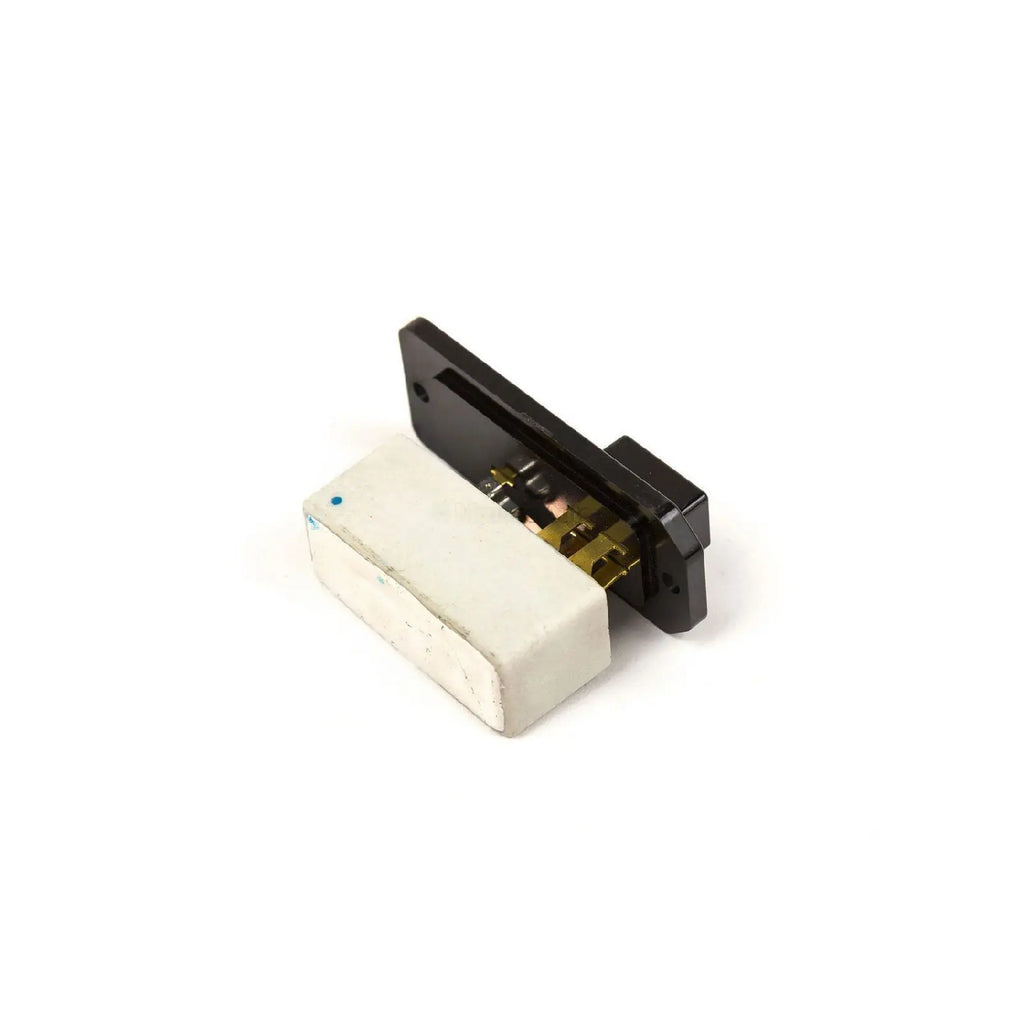

HVAC Blower Motor Resistor Fit 93-98 Toyota Pickup T100 2.4L 2.7L 3.4L. The blower motor resistor will typically be in the blower fan case. Depending on the vehicle application, the resistor may be accessed from inside the engine compartment in the passenger rear corner or from inside the vehicle in the area below the glove compartment storage area. The blower motor resistor is in the fan motor control circuit to lower thevoltage level available to the fan motor thus controlling fan speed. A typical fan motorcontrol circuit will have the fan switch applying voltage to the appropriate circuit of theblower motor resistor; the resistor controls the voltage level in the circuit. The fan motorhigh speed circuit is usually a direct power circuit from the fan switch. Depending on the failure mode, the blower fan may lose one speed when the resistor fails or it may lose all speeds except high. Excessive heat will cause the thermal fuse within the resistor to open causing a loss of all lower fan speeds. Always check circuit amperage of the blower motor circuit when replacing a blower motor resistor. Be sure to use our aftermarket replacement HVAC blower motor resitor when replacing your car blower motor resistor for the best performance.
Fits Following Models:
1992-1995 TOYOTA PICKUP 2.4L 2366CC L4 SOHC
1993 TOYOTA PICKUP 2.4L 2366CC L4
1992-1995 TOYOTA PICKUP 3.0L 2959CC V6 SOHC
1994-1998 TOYOTA T100 2.7L 2694CC L4 DOHC
1993-1994 TOYOTA T100 3.0L 2959CC V6 SOHC
1995-1998 TOYOTA T100 3.4L 3378CC V6 DOHC
This item includes:
1 HVAC Blower Motor Resistor / Control Module / Resistor Block
Specifications:
Bolt Hole Quantity: 2
Connector Gender: Female
Connector Quantity: 1
Connector Shape: Rectangular
Hazardous Material: No
Meets or Exceeds Original Equipment Manufacture Specifications: Yes
Minimum Order Quantity: 1
Quantity Per Application: 1
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
Wiring Harness Included: No
