Head Gasket Set MLS Timing Belt Kit Water Pump Fit Honda F22A1 F22A4 F22A6. Located in the engine compartment behind the drive belts, the timing belt keeps the crankshaft in sync with the camshaft(s), essentially ensuring the proper timing and operation of the engine and its valves. When replacing a timing belt, also replace tensioner, and pulleys. Failure of pulleys and tensioners, after replacing only the belt, can cause valve or piston damage and lead to more expensive repairs. Additionally, timing belt driven water pumps should also be replaced at the same time as the timing belt. Operated by the drive belt, the water pump's core function is to allow coolant to flow into the engine continually. Together, these three components: timing belt, tensioners and pulleys, and the water pump are essential to the overall health of your engine. Ignoring the replacement of a timing belt as a part of scheduled maintenance could result in major engine failure down the road. Be sure to use our aftermarket replacement timing belt kit when the timing belt is serviced for the best performance.
Fits Following Models:
1990-1993 HONDA ACCORD DX, LX, 10TH ANNIVERSARY 2.2L 2156CC L4 SOHC, (16 VALVE), ENG CODE "F22A1"
1991 HONDA ACCORD EX 2.2L 2156CC L4 SOHC, (16 VALVE), ENG CODE "F22A1, F22A4, F22A6"
1991 HONDA ACCORD SE 2.2L 2156CC L4 SOHC, (16 VALVE), ENG CODE "F22A6"
1993 HONDA ACCORD SE 2.2L 2156CC L4 SOHC, (16 VALVE), ENG CODE "F22A6"
1992-1996 HONDA PRELUDE S 2.2L 2156CC L4 SOHC, (16 VALVE), ENG CODE "F22A1"

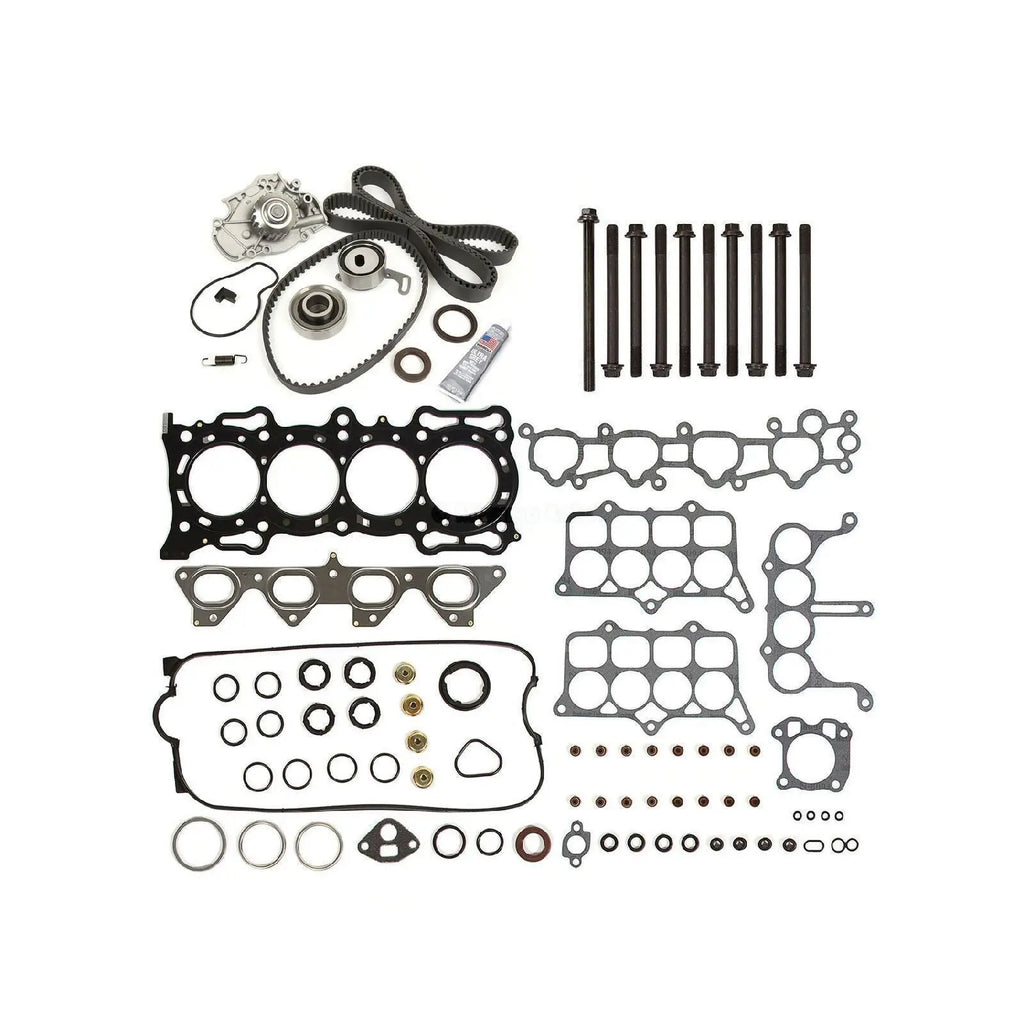

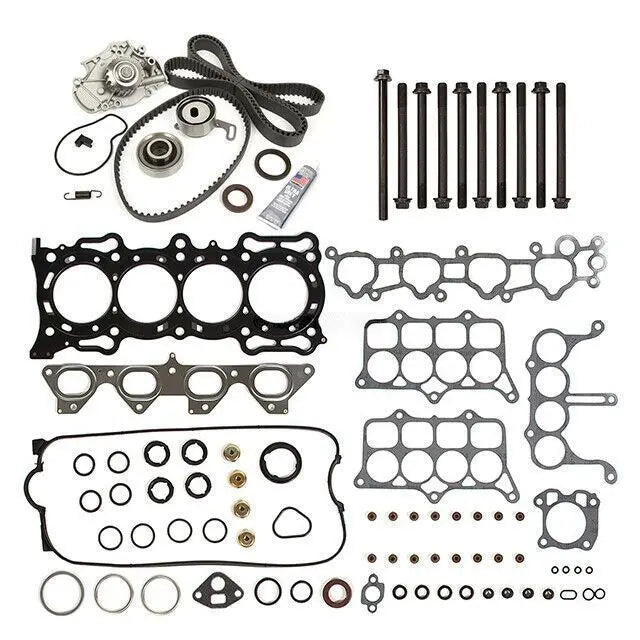

This item includes:
Multiple Layers Steel (MLS) Head Gasket
Valve Cover Gasket
Valve Stem Seals
Intake Manifold Gasket
Exhaust Manifold Gasket
Front Camshaft Seal
Other Small Gaskets
10 Cylinder Head Bolts
1 Timing Belt (113 teeth)
1 Balance Shaft Belt (70 teeth)
1 Roller Tensioner Bearing (Bearing assembly)
1 Balanceshaft Tensioner
1 Camshaft Seal (28 x 42 x 8)
1 Front Crankshaft Seal (40 x 52 x 7H)
