Head Gasket Set Intake Exhaust Valves Fit 04-07 Chevrolet GMC Buick 4.8 5.3. The main function of an engine valve is to open and close rapidly. This allows the air and fuel charge to enter the combustion chamber and after ignition, the exhaust valve allows the waste gases to flow out into the exhaust system. Each cylinder has at least one intake and one exhaust valve. The head gasket is the key component of the engine. It is compressed between the engine block and the cylinder head. The head gasket seals in the internal combustion process to make sure maximum compression is achieved and also keeps coolant and oil from mixing together as the two fluids travel from the engine block to the cylinder head. The cylinder head bolts hold the cylinder head and cylinder head gasket in place and ensure that the cylinder head will continue to hold up despite the tremendous amounts of pressure in the combustion chamber. Therefore the cylinder head bolts, cylinder head gasket, and intake exhaust valves are an important part of your engine. They should always be in perfect condition and should be maintained properly. So, if you notice that this part is showing signs of excessive wear, have them replaced immediately. Be sure to have your worn out parts replace with our aftermarket replacement parts set as soon as they start to give you trouble.
Fits Following Models:
2004-2007 BUICK RAINIER 5.3L 5328CC 325CID V8 OHV, (16 VALVE)
2004-2005 CADILLAC ESCALADE 5.3L 5328CC 325CID V8 OHV, (16 VALVE)
2004-2006 CHEVROLET AVALANCHE 1500 5.3L 5328CC 325CID V8 FLEX OHV, (16 VALVE)
2004-2006 CHEVROLET AVALANCHE 1500 5.3L 5328CC 325CID V8 OHV, (16 VALVE)
2007-2013 CHEVROLET AVALANCHE 5.3L 5328CC 325CID V8 FLEX OHV, (16 VALVE)
2007-2009 CHEVROLET AVALANCHE 5.3L 5328CC 325CID V8 OHV, (16 VALVE)
2009 CHEVROLET COLORADO 5.3L 5328CC 325CID V8 OHV, (16 VALVE)
2007-2008 CHEVROLET EXPRESS 1500 5.3L 5328CC 325CID V8 FLEX OHV, (16 VALVE)
2004-2008 CHEVROLET EXPRESS 1500 5.3L 5328CC 325CID V8 OHV, (16 VALVE)
2004-2007 CHEVROLET EXPRESS 2500 4.8L 294CID V8 OHV, (16 VALVE)
2004 CHEVROLET EXPRESS 2500 5.3L 5328CC 325CID V8 OHV, (16 VALVE)
2004-2007 CHEVROLET EXPRESS 3500 4.8L 294CID V8 OHV, (16 VALVE)
2004-2006 CHEVROLET SONORA 5.3L 5328CC 325CID V8 OHV, (16 VALVE)
2007 GMC SIERRA 1500 6.2L 6162CC 376CID V8 OHV, (16 VALVE)
2008-2013 GMC SIERRA 5.3L 5328CC 325CID V8 OHV, (16 VALVE)

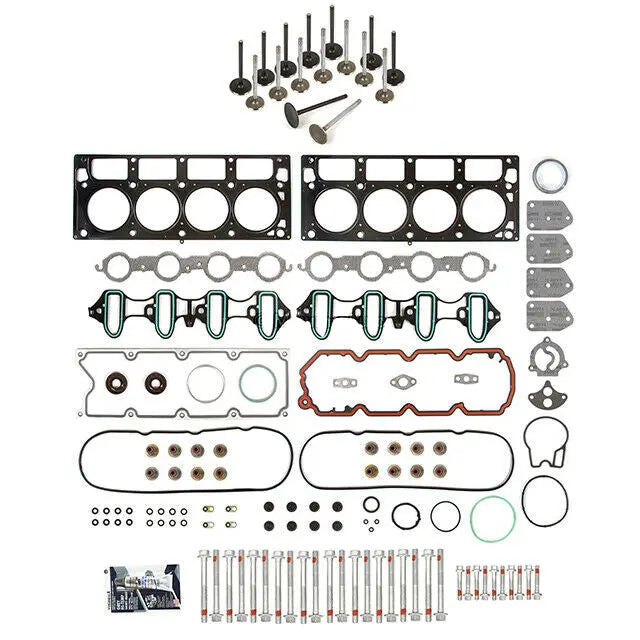

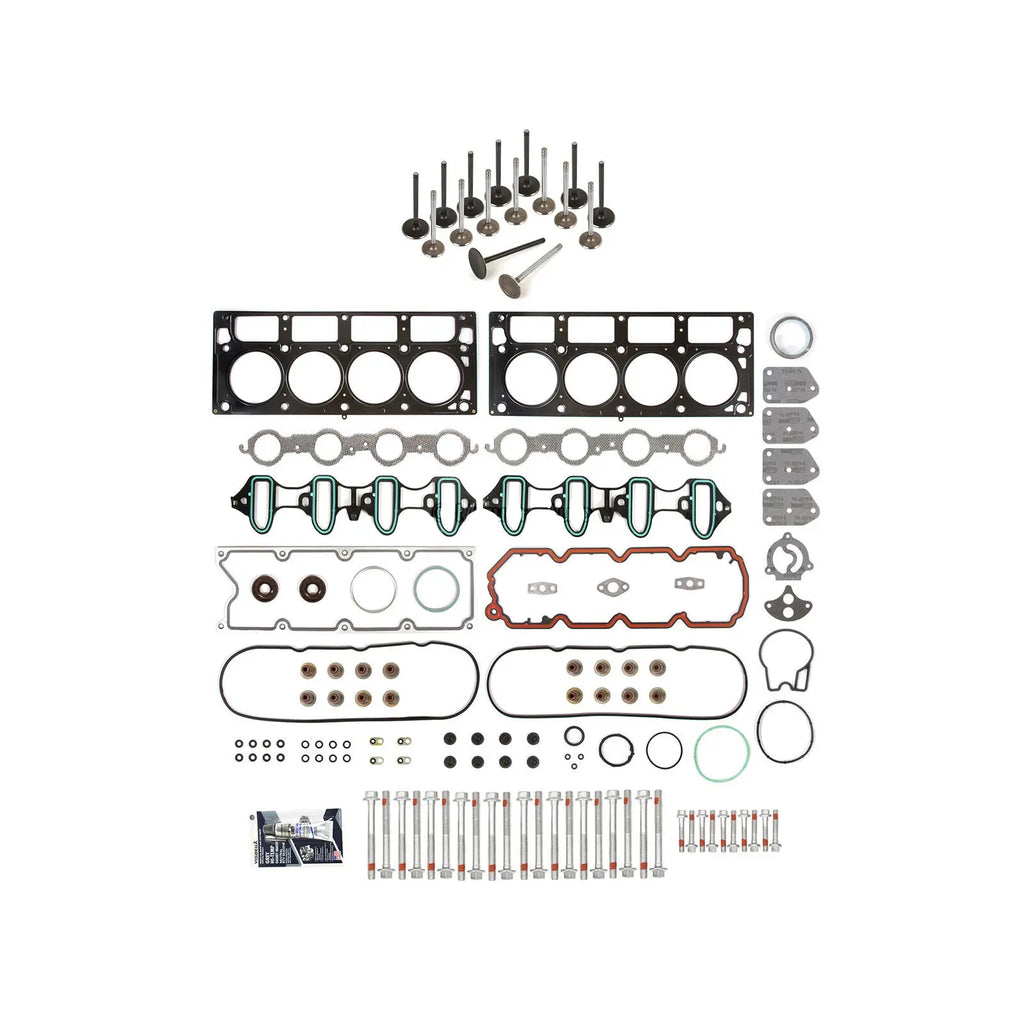

This item includes:
Multiple Layers Steel (MLS) Head Gasket
Valve Cover Gasket
Valve Stem Seals
Intake Manifold Gasket (Plastic)
Exhaust Manifold Gasket
Front Camshaft Seal
O-rings
Other Small Gaskets
RTV Silicone
30 Cylinder Head Bolts (20 Long Bolts: 100mm, 10 Small Bolts: 45mm)
8 Intake Valves (1 Groove; Head 50.80mm x Stem 7.96mm x Length 123.50mm)
8 Exhaust Valves (1 Groove; Head 39.35mm x Stem 7.96mm x Length 124.85mm)
