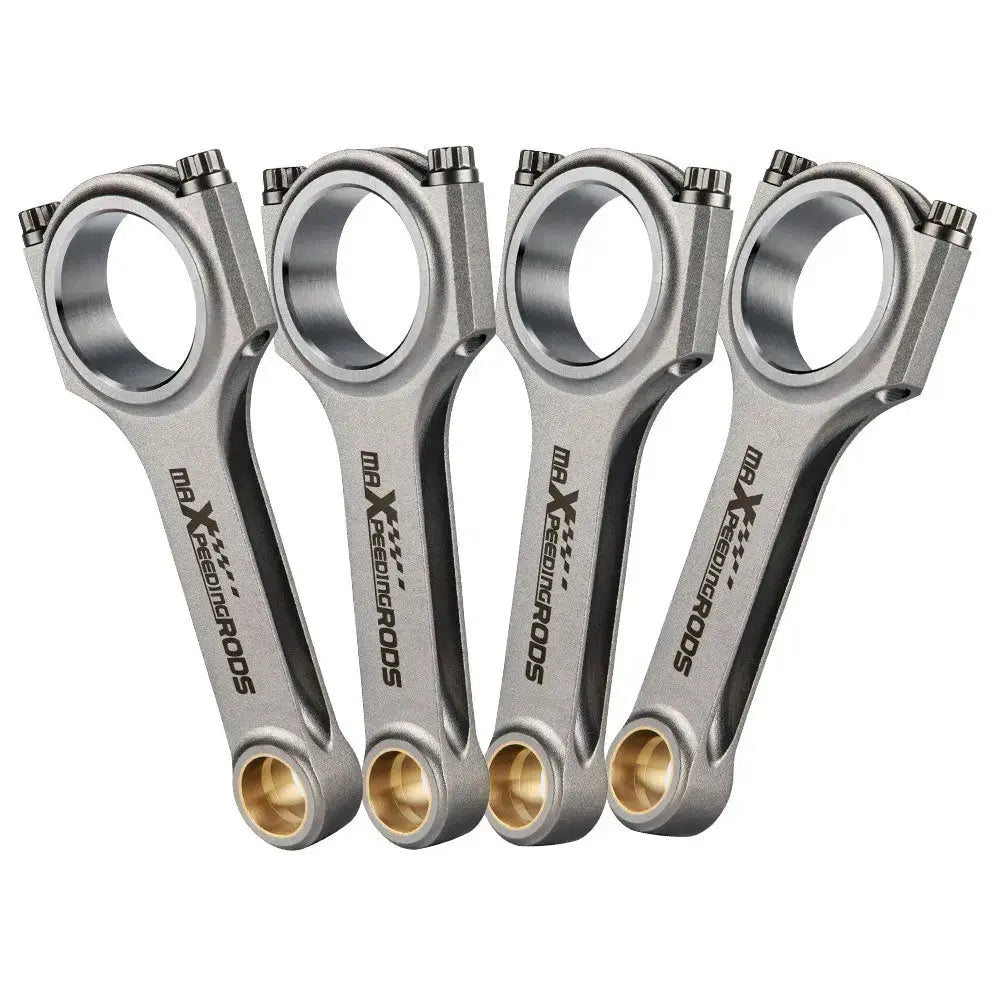

H-Beam Connecting Rods compatible for Fiat Abarth 850 A112 110mmCon Rod + ARP 2000 Conrods

  • Sale
  • Regular price $600.95
Shipping calculated at checkout.


*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Application

Compatible for Fiat Abarth 850 A112

Specification

Performance Con Rods

Type: Forged 4340 aircraft chrome moly quality steel for racing

H-beam Conrods Quantity: 4 Pieces a set

Bolts: Including Genuine ARP 2000 bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: ARP 2000 5/16" bolts

Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Top acceleration: 7000rpm

warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 110mm

Big end diameter: 43.6mm

Small end diameter: 18mm

Big end width: 21.64mm

Small end width: 21.64mm

Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

-Designed and processed by CNC machine.

-All big and small ends are finished with SUNNEN honing machine

-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

-100% X-rayed, sonic tested and magnafluxed

-Multi-stage heat treated

-Shot peened to relieve stress

-Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)

Custom Service: If there's no conrods you need on our site, we would be happy
to help determine your requirements and develop a solution with you to satisfy
your needs.
