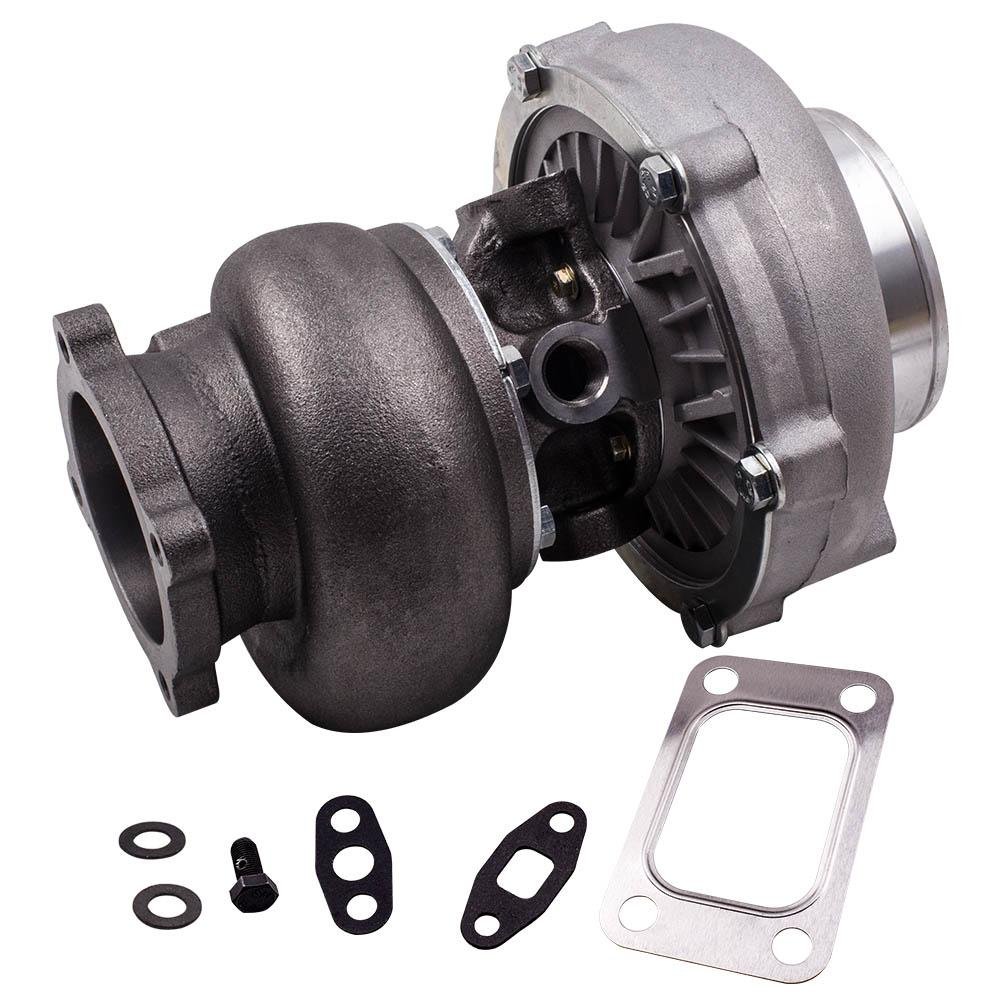

GT3037 GT3076R GT30 6.8 500HP+T3.73 A/R 78 TRIM TURBINE TURBO CHARGER Water Oil

  • Sale
  • $253.95
  • Regular price $308.00
Shipping calculated at checkout.


*** Please Note: Order processing can take up to 3 business days. Due to COVID-19 processing and shipping may be delayed. Shipping timeframes start after the order processing has been completed. ***

Universal for Turbo Manifold with T3 Flange(T4 Flange can be converted to T3 Flange Adrapter is needed). Perfect for all 6 / 8 cyl 3.0L-5.0L engine.for GT3076R GT3037 GT30 T3 4-BOLT Flange 500HP Turbo Charger 0.6 A/R 0.82 Turbine

Exhaust (Turbo Manifold) Flange: T3 4-Bolt Flange
Exhaust (Downpipe) Flange: 4-Bolt(for VolksWagen Style)
Cooling Type: Water + Oil
Wastegate: xx
Horse Power: Boost Horse Power up to 500BHP
Compressor:
Trim: 56
Inducer Diameter: 57 mm
Exducer Diameter: 76.2 mm
A/R: 0.6
Turbine:
Trim: 51
Inducer Diameter: 84 mm
Exducer Diameter: 60 mm
A/R: 0.82
Condition: 100% Brand New
Bearing Type: Journal Bearing

Accessories: Gaskets included as shown
