GT30 GT3037 GT3076 Turbo charger 500HP 0.82 A/R + Oil Drain Return FEED Line kit

  • Sale
  • $340.95
  • Regular price $460.45
Shipping calculated at checkout.

*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Perfect for all 6 / 8 cyl 3.0L-5.0L engine
Horse Power: Boost Horse Power up to 500BHP
Cooling Type: Water + Oil

Turbochagrger+ Turbo Oil Feed Line
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
Compressor Trim: 56
Compressor Inducer Diamter: 57 mm
Compressor Exducer Diamter: 76.2 mm
Compressor A/R: 0.6
Exhaust (Turbo Manifold) Flange: Standard T3 Flange
Exhaust (Downpipe) Flange: Standard 4-Bolt
Turbine Trim: 51
Turbine Inducer Diameter: 84 mm
Turbine Exducer Diameter: 60 mm
Turbine A/R: 0.82
Bearing Type: Journal Bearing

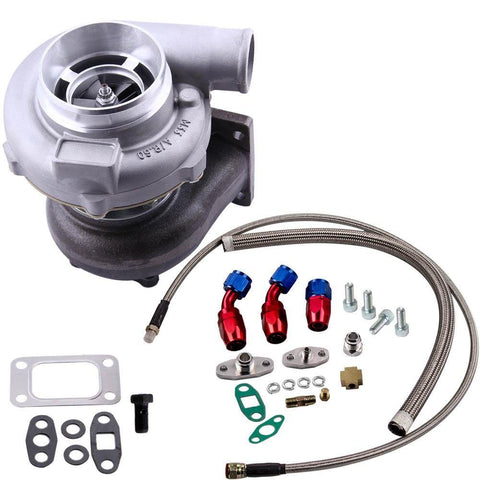

Accessories: You will get exactly as shown in the picture above
