Full Gasket Set Pistons Bearings Fit Dodge Stealth Mitsubishi 3000GT TURBO 3.0

Full Gasket Set Pistons Bearings Fit Dodge Stealth Mitsubishi 3000GT TURBO
3.0. Ultra performance premium grade aluminum alloy pistons. Minimizes
fractures & cracks, no more gummed up oil and reduces engine failure. Reduce
tension with better fuel economy, reduce cylinder wear. Replace Fel-Pro Part
: MD307972, HS26186PT, HS26186PT-1, HS9842PT, CS9842, CS26186

Full Gasket Set Pistons Bearings Fit Dodge Stealth Mitsubishi 3000GT TURBO
3.0. A piston is a cylindrical piece of metal that moves up and down inside
each cylinder, compressing the air-fuel mixture and capturing the force
created by the combustion process. This force is then transferred to the
crankshaft, via the connecting rod. Symptoms of a Bad or Failing Piston
include engine misfire, excessive oil consumption, knocking or slapping noise
from inside engine. The crankshaft, connecting rods and bearings are extremely
important in every engine build, because they convert the reciprocating motion
of the pistons into rotational torque. The longer the stroke, the greater the
leverage effect and the greater the torque output of the engine. Time will
come that your engine pistons, rings and bearings will wear out. Always
remember, when your engine bearings fail, a replacement should immediately be
installed. Be sure to have your engine pistons, rings, crankshaft bearings,
and connecting rod bearings replace with our aftermarket replacement parts as
soon as it starts to give you trouble.

Fits Following Models:
1991-1992 DODGE STEALTH 3.0L 2972CC 181CID V6 DOHC TURBOCHARGED, (24
VALVE), VIN CODE "C"
1993-1996 DODGE STEALTH 3.0L 2972CC 181CID V6 DOHC TURBOCHARGED, (24
VALVE), VIN CODE "K"
1991-1999 MITSUBISHI 3000GT 3.0L 2972CC 181CID V6 DOHC TURBOCHARGED, (24
VALVE), ENG CODE "6G72T"

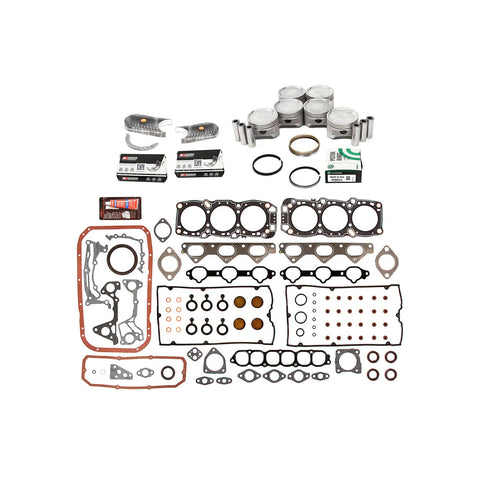

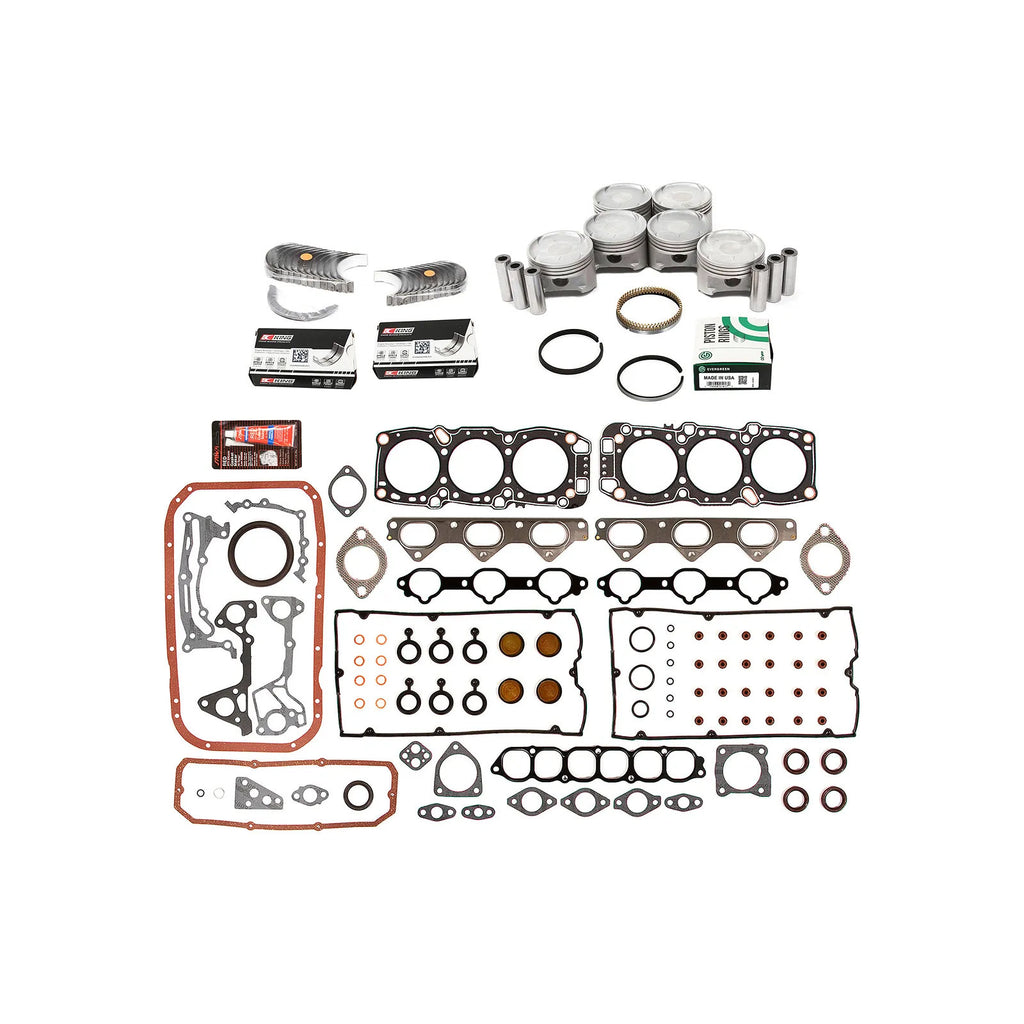

This item includes:

Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Intake Manifold Gasket, Other Small Gaskets..., Lower Gasket Set, RTV Silicone)

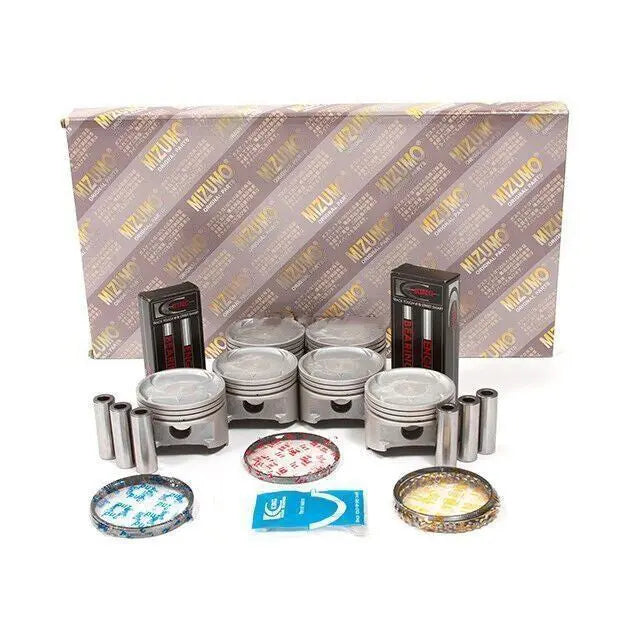

6 Pistons with Complete Ring Set (Sizes available: STD - Standard Size)
Standard Bore Diameter: 91.10mm
1st Group: 1.20mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
6 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer

Remark: Please select pistons with rings sizes from the options above. For
other oversizes please contact us for special order.

Piston Measurements
---
Piston Part | UOM| STD| 0.25| 0.50| 0.75| 1.00
[PS5014T](https://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=PS5014T&LH_TitleDesc=1&submit=)| MM| 91.100| 91.350|
91.600| 91.850| 92.100
IN| 3.587| 3.596| 3.606| 3.616| 3.626
Piston Ring Part| Piston Information
[RS5013B](http://stores.ebay.com/Mizumo-Auto-
Parts/_i.html?_nkw=RS5013B&LH_TitleDesc=1&submit=)
![](https://mizumoauto.net/ebay/images/gallery/pistons/PS5014T
D.jpg)
Specifications| MM| IN
Cylinder| 6
Bore| 91.100| 3.587
Comp| 31.900| 1.256
| Dist.| 1| -
---|---|---
2|
3|
| 3.400
---
| 0.134
---
Length| 65.900| 2.594
| Surface Treatment| Cir Clip|
| NONE
---|---|---|---
Head| Skirt
NONE| NONE
Remarks
Measure for CYL clearance| MM| IN| From Bottom of the Skirt
15.000| 0.591
Pin Length| 64.000| 2.520
Pin Diameter| 22.000| 0.866
1st| 1.200| 0.047
2nd| 1.500| 0.059
Oil Ring| 3.000| 0.118
| |
Caution: Bore diameter is measured before skirt Surface Treatment. To
Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to
maximum Bore Size.
