Full Gasket Set Intake Exhaust Valves Fit 89-00 Chevrolet Geo Metro 1.0L G10. The main function of an engine valve is to open and close rapidly. This allows the air and fuel charge to enter the combustion chamber and after ignition, the exhaust valve allows the waste gases to flow out into the exhaust system. Each cylinder has at least one intake and one exhaust valve. The head gasket is the key component of the engine. It is compressed between the engine block and the cylinder head. The head gasket seals in the internal combustion process to make sure maximum compression is achieved and also keeps coolant and oil from mixing together as the two fluids travel from the engine block to the cylinder head. The cylinder head bolts hold the cylinder head and cylinder head gasket in place and ensure that the cylinder head will continue to hold up despite the tremendous amounts of pressure in the combustion chamber. Therefore the cylinder head bolts, cylinder head gasket, and intake exhaust valves are an important part of your engine. They should always be in perfect condition and should be maintained properly. So, if you notice that this part is showing signs of excessive wear, have them replaced immediately. Be sure to have your worn out parts replace with our aftermarket replacement parts set as soon as they start to give you trouble.
Fits Following Models:
1998-2000 CHEVROLET METRO 1.0L 993CC 61CID L3 SOHC, (6 VALVE), VIN CODE "6"
1989-1997 GEO METRO 1.0L 993CC 61CID L3 SOHC, (6 VALVE), VIN CODE "6"
1989-1991 CHEROLET SPRINT 1.0L 993CC SOHC I3, (6 VALVE), ENG CODE "G10"
1989-2000 PONTIAC FIREFLY 1.0L 993CC SOHC I3, (6 VALVE), ENG CODE "G10", (CANADIAN MODEL"
1989-2000 PONTIAC FIREFLY TURBO 1.0L 993CC SOHC I3, (6 VALVE), ENG CODE "G10T", (CANADIAN MODEL"

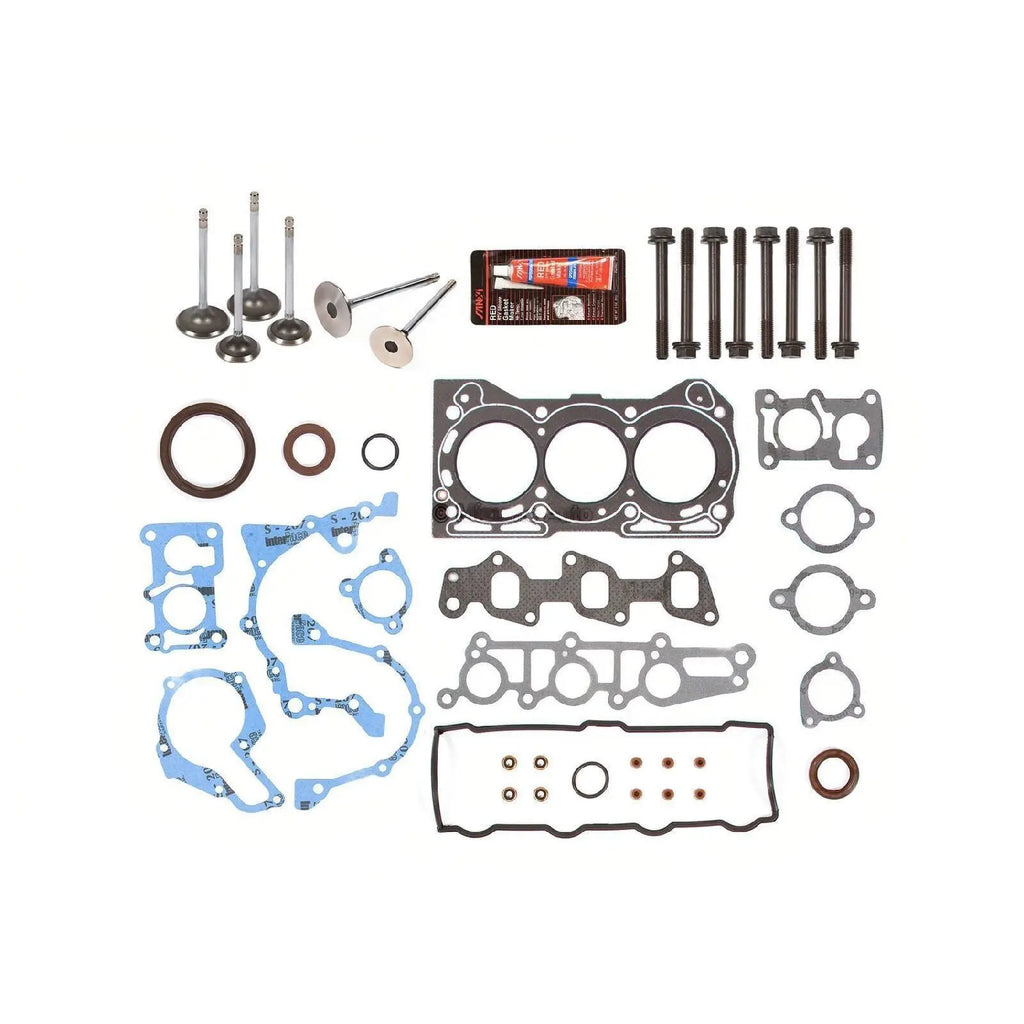

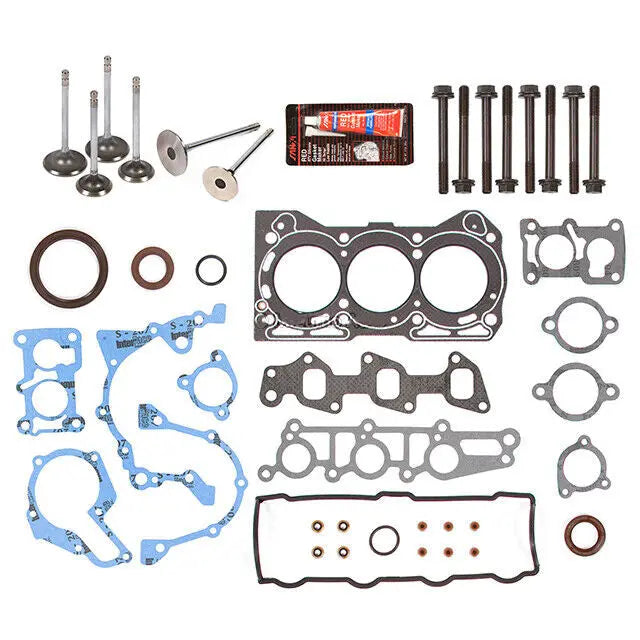

This item includes:
Graphite Head Gasket
Valve Cover Gasket
Valve Stem Seals
Intake Manifold Gasket
Exhaust Manifold Gasket
Front Camshaft Seal
O-rings
Front Crankshaft Seal
Rear Main Seal
Water Pump Gasket
Other Small Gaskets
RTV Silicone
8 Cylinder Head Bolts
3 Intake Valves (1 Groove; Head 35.00mm x Stem 5.50mm x Length 84.10mm)
3 Exhaust Valves (1 Groove; Head 28.00mm x Stem 5.50mm x Length 84.00mm)
