Full Gasket Set Fit 88-93 Toyota & Geo 1.6L DOHC 4AF 4AFE. The head gasket is the key component of the engine. It is compressed between the engine block and the cylinder head. The head gasket seals in the internal combustion process to make sure maximum compression is achieved and also keeps coolant and oil from mixing together as the two fluids travel from the engine block to the cylinder head. Head gasket set is used for upper engine repair. It can be combined with a conversion gasket set / lower gasket set to form a full gasket set for the entire engine. Time will come that your gaskets and seals will leak or blow. Always remember, when your head gasket or seals fail, a replacement gaskets and seals should immediately be installed. Be sure to have your engine gaskets replace with aftermarket replacement full gasket set as soon as it starts to give you trouble.
Fits Following Models:
1990-1992 GEO PRIZM 1.6L 1587CC L4 DOHC, (16 VALVE), VIN CODE "6"
1989 GEO PRIZM 1.6L 1588CC 98CID L4 DOHC, (16 VALVE), VIN CODE "6"
1990-1993 TOYOTA CELICA 1.6L 1587CC L4 DOHC, (16 VALVE), ENG CODE "4AFE"
1988-1992 TOYOTA COROLLA 1.6L 1587CC L4 DOHC, (16 VALVE), ENG CODE "4AFE"

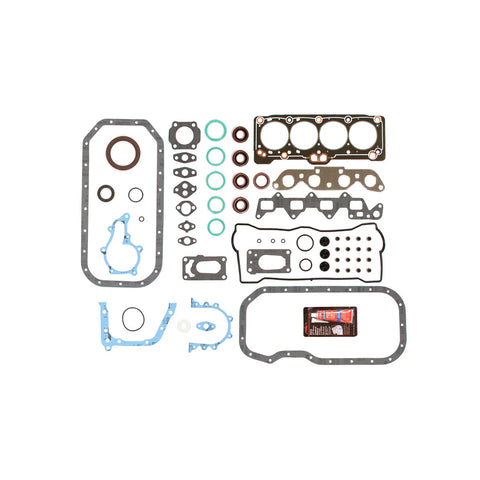

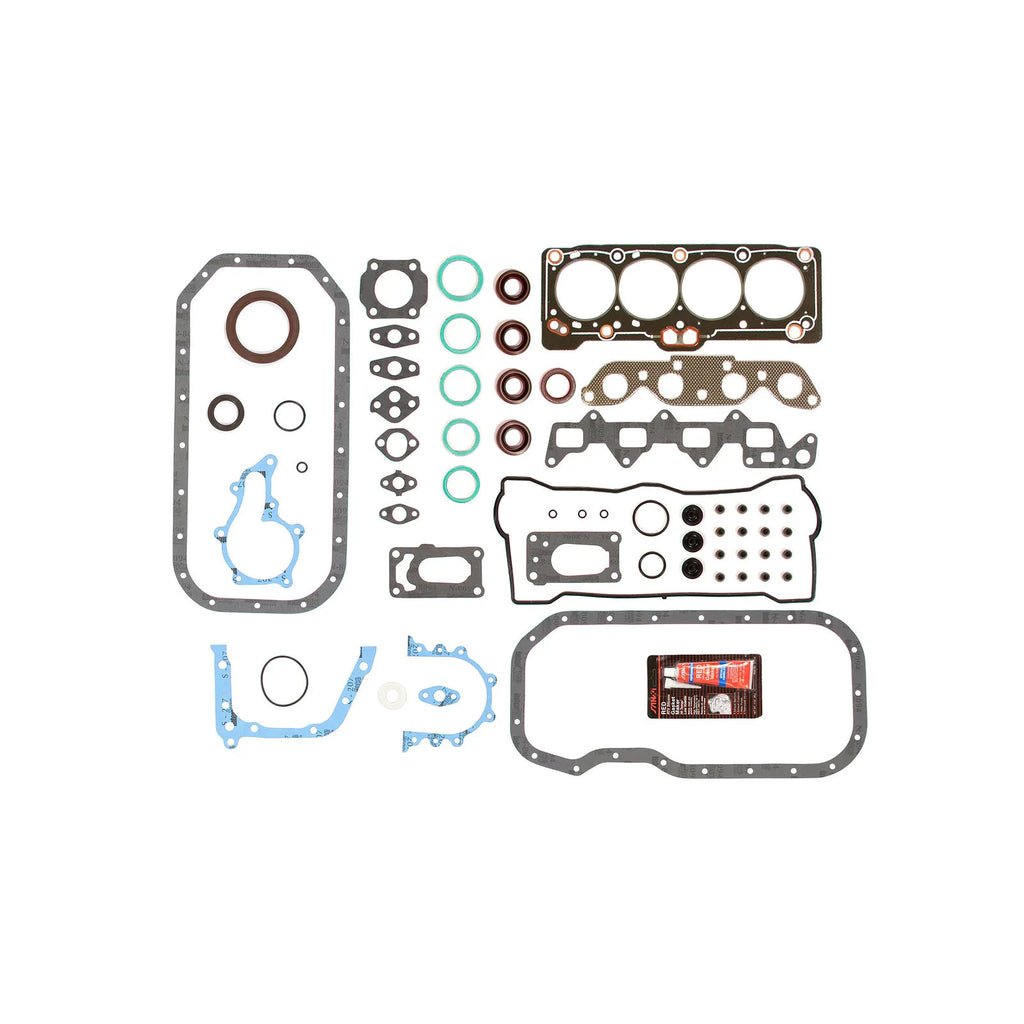

This item includes:
Graphite Head Gasket
Valve Cover Gasket
Valve Stem Seals
Intake Manifold Gasket
Exhaust Manifold Gasket
Front Camshaft Seal
O-rings
Front Crankshaft Seal
Rear Main Seal
Water Pump Gasket
Other Small Gaskets
RTV Silicone
