Full Gasket Set Bearings Rings Fit 95-04 Toyota 4Runner Tacoma 5VZFE. The piston rings are located inside of a car’s engine. The piston ring’s main purpose is to assist in sealing the combustion chamber, manage the oil consumption of the engine, and to assist in transferring heat to the engine from the piston. The crankshaft, connecting rods and bearings are extremely important in every engine build, because they convert the reciprocating motion of the pistons into rotational torque. The longer the stroke, the greater the leverage effect and the greater the torque output of the engine. The head gasket is the key component of the engine. It is compressed between the engine block and the cylinder head. The head gasket seals in the internal combustion process to make sure maximum compression is achieved and also keeps coolant and oil from mixing together as the two fluids travel from the engine block to the cylinder head. Time will come that your engine gaskets, bearings, and piston rings will wear out. Always remember, when your engine gaskets, bearings or piston rings fail, a replacement bearings should immediately be installed. Be sure to have your engine parts replace with our aftermarket parts as soon as they start to give you trouble.
Fits Following Models:
1996-2002 TOYOTA 4-RUNNER 3.4L 3378CC V6 DOHC, (24 VALVE), ENG CODE "5VZFE"
1995-2004 TOYOTA TACOMA 3.4L 3378CC V6 DOHC, (24 VALVE), ENG CODE "5VZFE"
1996-2004 TOYOTA TUNDRA 3.4L 3378CC V6 DOHC, (24 VALVE), ENG CODE "5VZFE"
1996-1999 TOYOTA T100 3.4L 3378CC V6 DOHC, (24 VALVE), ENG CODE "5VZFE"

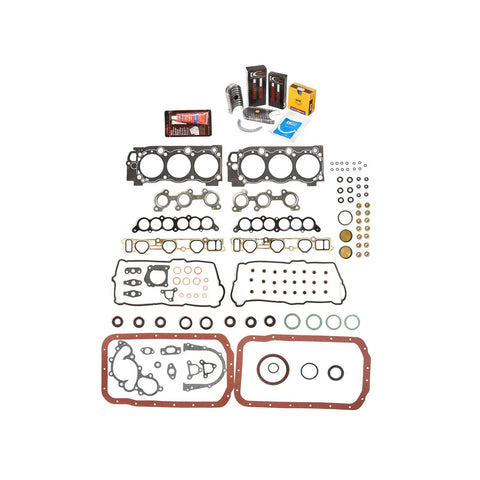

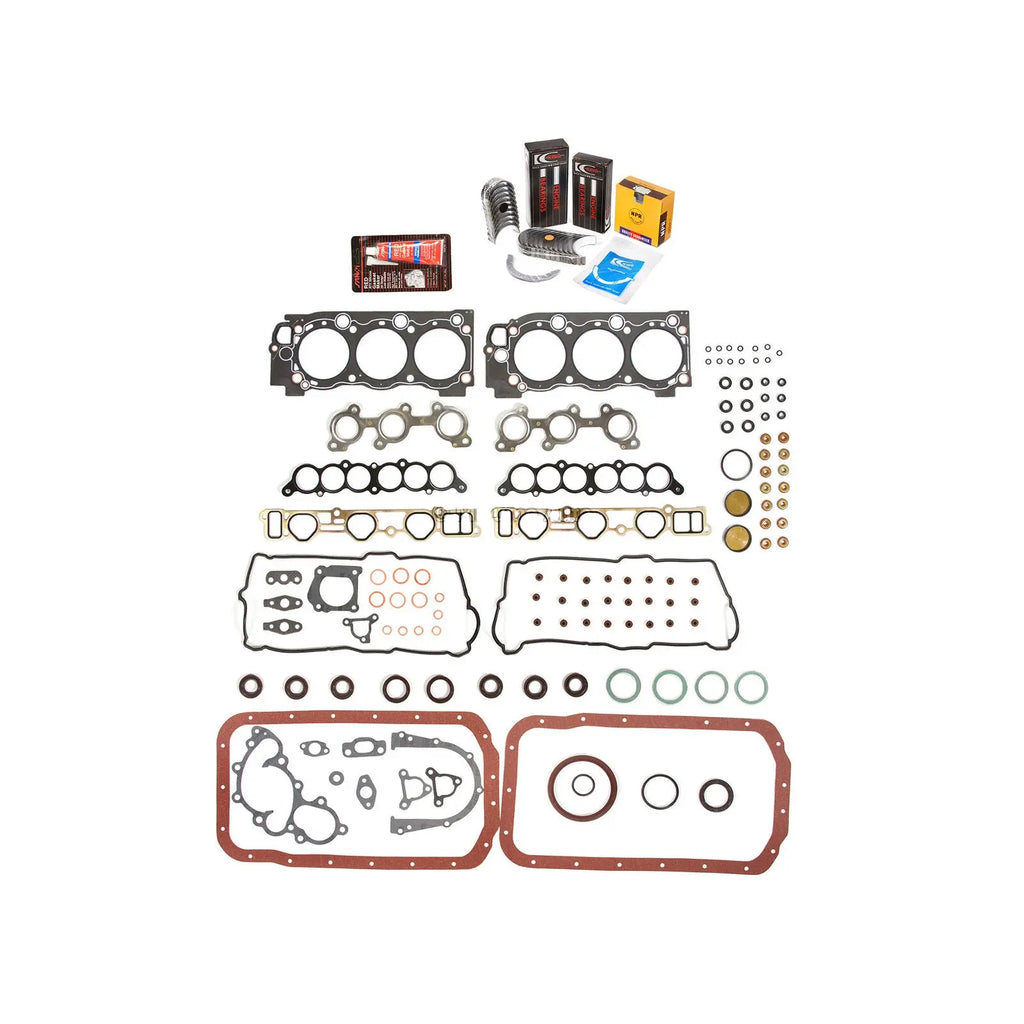

This item includes:
Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Other Small Gaskets, ..., Lower Gasket Set)
RTV Silicone
Complete NPR Piston Ring Set (Premium Steel Material Piston Rings)
Piston Rings Size available (STD - Standard Size, or oversize: 0.50mm = 0.020")
Standard Bore Diameter: 93.50mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 4.00mm
King Main Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
King Rod Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
Thrust Washer
