Full Gasket Set Bearings Rings Fit 93-97 Toyota Corolla Geo Prizm 1.6 DOHC 4AFE. The piston rings are located inside of a car’s engine. The piston ring’s main purpose is to assist in sealing the combustion chamber, manage the oil consumption of the engine, and to assist in transferring heat to the engine from the piston. The crankshaft, connecting rods and bearings are extremely important in every engine build, because they convert the reciprocating motion of the pistons into rotational torque. The longer the stroke, the greater the leverage effect and the greater the torque output of the engine. The head gasket is the key component of the engine. It is compressed between the engine block and the cylinder head. The head gasket seals in the internal combustion process to make sure maximum compression is achieved and also keeps coolant and oil from mixing together as the two fluids travel from the engine block to the cylinder head. Time will come that your engine gaskets, bearings, and piston rings will wear out. Always remember, when your engine gaskets, bearings or piston rings fail, a replacement bearings should immediately be installed. Be sure to have your engine parts replace with our aftermarket parts as soon as they start to give you trouble.
Fits Following Models:
1993-1997 GEO PRIZM 1.6L 1588CC 98CID L4 DOHC, (16 VALVE), ENG CODE "4AFE"
1993-1997 TOYOTA COROLLA 1.6L 1587CC L4 DOHC, (16 VALVE), ENG CODE "4AFE"

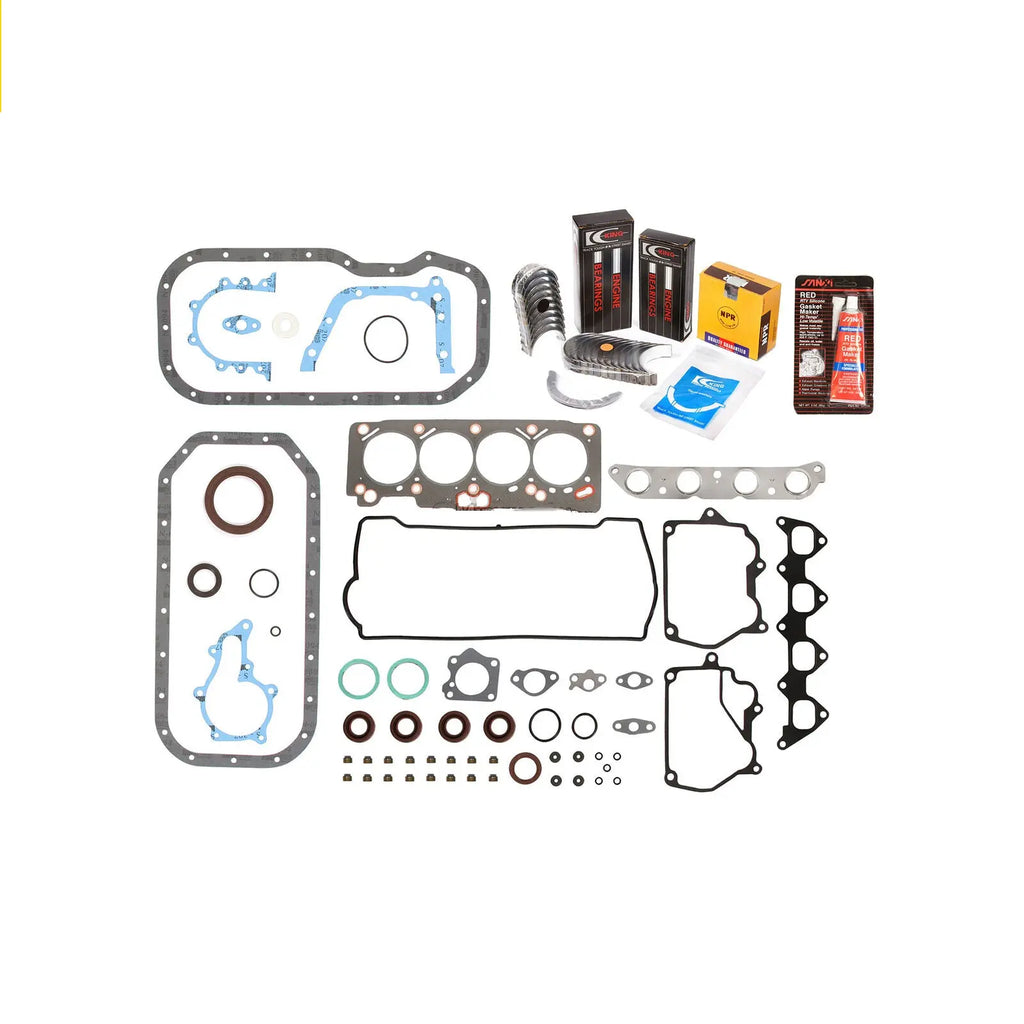

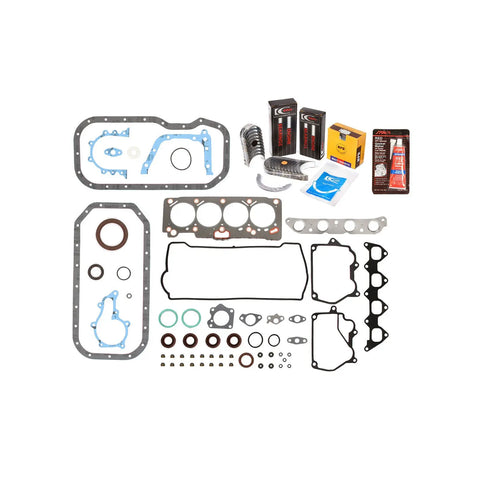

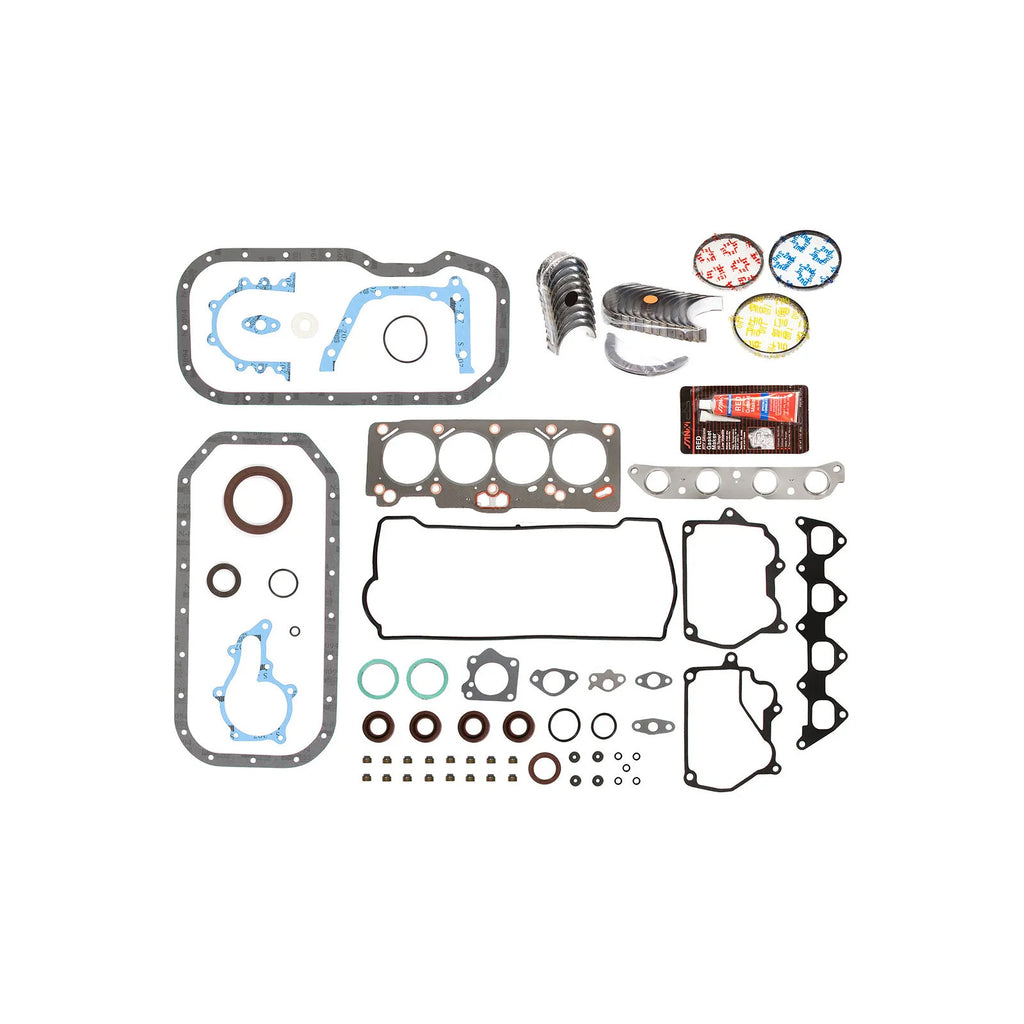

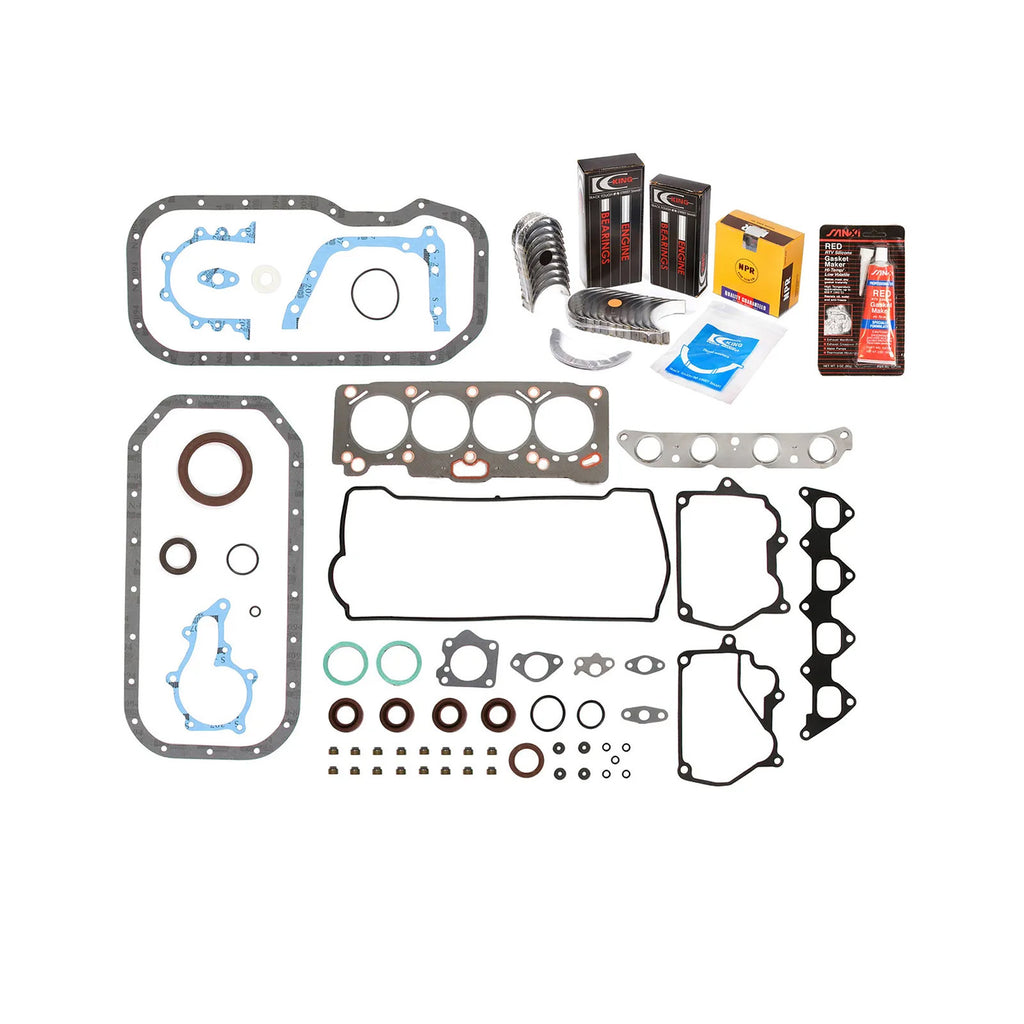

This item includes:
Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Other Small Gaskets, ..., Lower Gasket Set)
RTV Silicone
Complete NPR Piston Ring Set (Premium Steel Material Piston Rings)
Piston Rings Size available (STD - Standard Size, or oversize: 0.50mm = 0.020")
Standard Bore Diameter: 81.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm
King Main Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
King Rod Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
Thrust Washer
Remark: If you want the oversize(s), please leave us a note in the "Add Message to Seller" box that eBay provided when you go to check out. Click the SAVE button in order for your note to be saved, and double check to make sure your note is lodged with your payment. For other oversizes please contact us for special order.
NPR® (NPR of America, Inc) was established as a wholly owned subsidiary of Nippon Piston Ring Co.,Ltd. (NPR) in 1973. NPR has been supplying the Original Equipment Manufacturers (Toyota, Lexus) and the Automotive After Market with the highest quality internal combustion engine parts, since 1973. NPR continue to advance into the Twenty First Century by meeting the changing demands of the Original Equipment Manufacturers and Automotive After Market by utilizing extensive product testing techniques to deliver a consistently higher level of performance and lasting quality.
KING (King Engine Bearings) are bearing specialists. King Engine Bearings was founded in 1960 with one simple objective: to supply the highest quality bearings available in the marketplace. By specializing in engine bearings, King has built an extensive product offering that includes a wide range of engine bearings for automobiles, light duty and heavy duty trucks, marine, aviation, standby power and many other types of internal combustion engines. Every King bearing utilizes the highest quality materials and the most advanced designs to ensure complete customer satisfaction.
