Application
Compatible for BMW S38 B35 1988 M5 M6
Compatible for BMW S38: straight-6 DOHC piston engine
S38B35 1986 - 1988 , compatible for BMW E28 M5 (NA spec), compatible for BMW E24 M6 (NA spec),; Compatible for BMW E24 M635CSi with catalytic converter
S38B36 1989 - 1993 compatible for BMW E34 M5 (NA spec) and Euro spec 1989–1992
S38B38 1992 - 1996 compatible for BMW E34 M5
Feature
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
Dimensions
Center to center length: 144mm
Big end diameter: 52mm
Small end diameter: 22mm
Big end width: 24mm
Small end width: 24mm
Specification
- Performance Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing

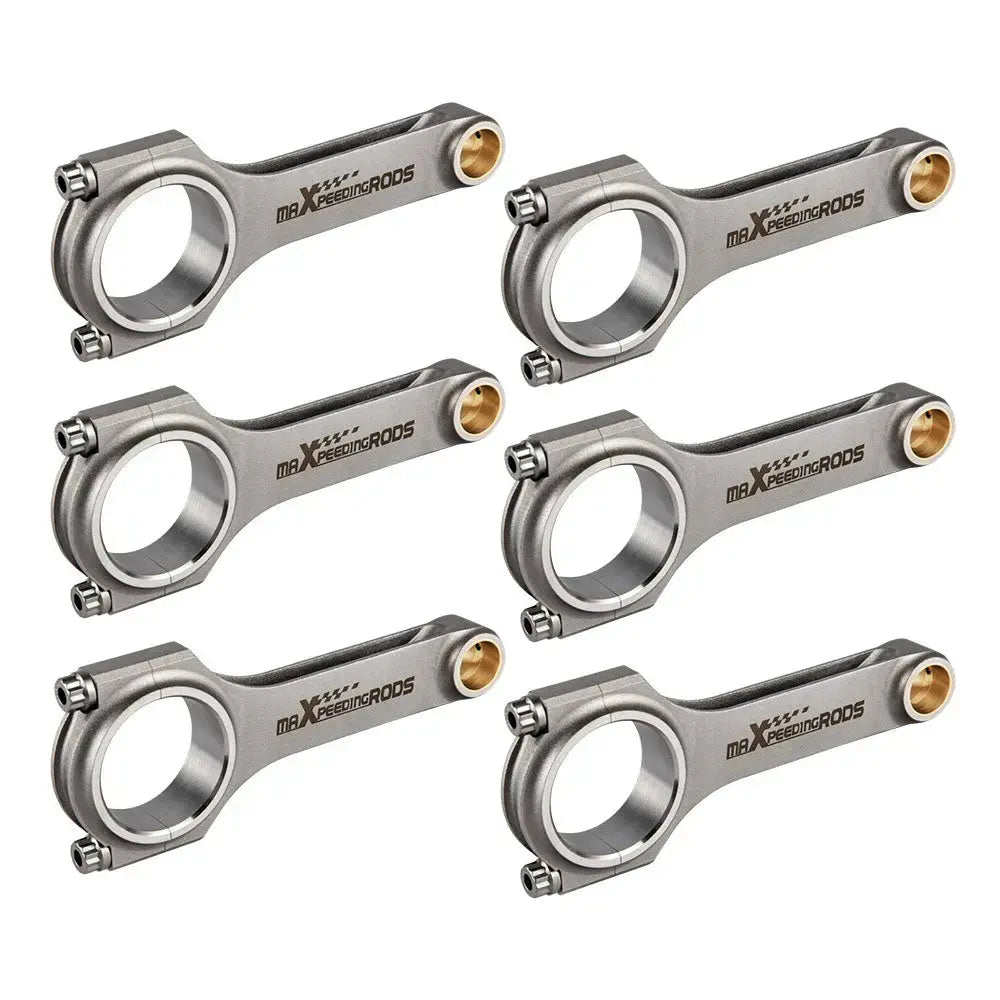

- H-beam Conrods Quantity: 6 Pieces as showing in the picture
- Bolts: Including ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: ARP 2000 3/8" bolts
- Tolerance: Balanced to +/- 1 gram inset
- Piston Bolt Hole: +-4/1000mm
- Power: 600hp ~ 800hp per set
- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ? 65 NM
- Top acceleration: 9000rpm
- Warranty: one year warranty for any manufacturing defect
Note
- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
