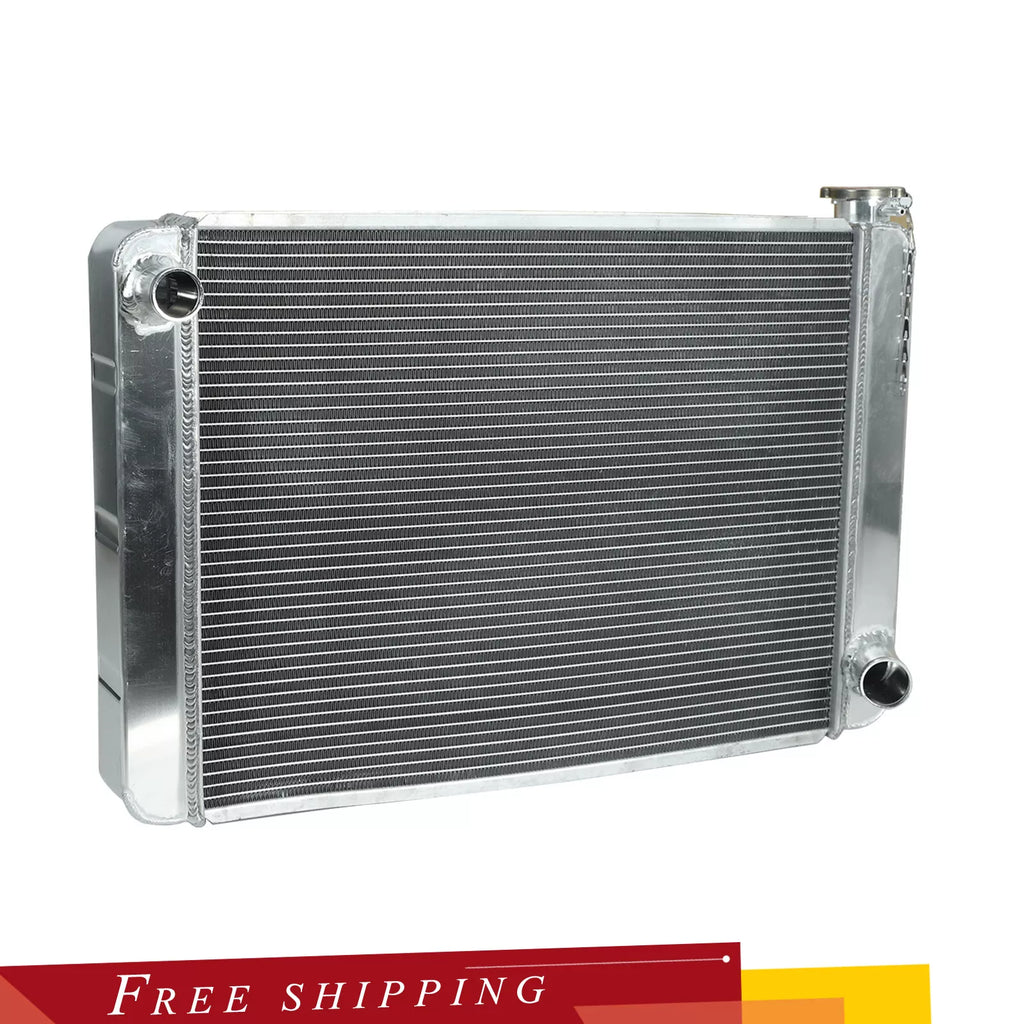

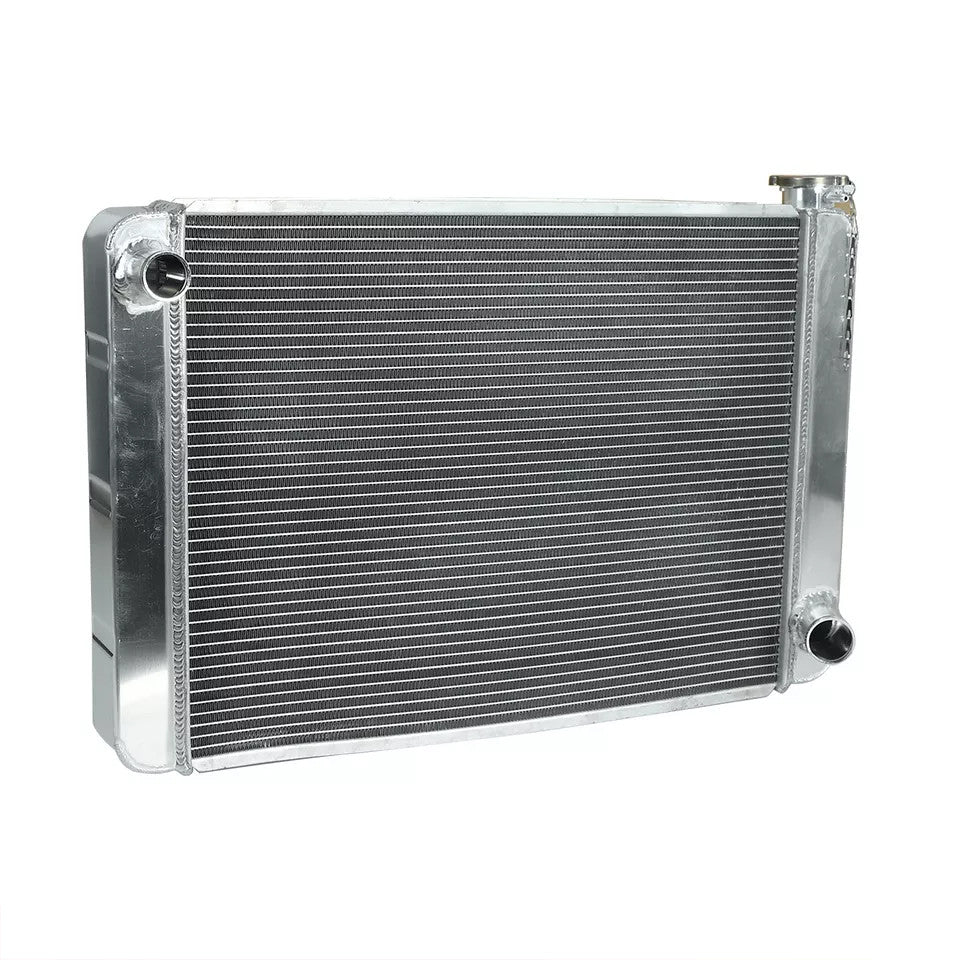

For Chevrolet Chevy GM SBC 29X19 Aluminum Racing Radiator Heavy Duty Universal

Description:

This double pass radiator works well for oval track racing applications where maximum efficiency is needed. The double pass design offers a 5 to 20 degree coolant temperature drop versus a standard, single pass radiator with equal core size.
This double pass radiator features 100% all-aluminum construction. The furnace-brazed core increases durability compared to other radiators with epoxy-glued or crimped-gasket sealing methods. Two rows of 1 inch aluminum tubes allows this radiator to out cool a similarly sized radiator with five rows of copper tubes. A rugged billet aluminum filler neck with screw-in bleed is also included.

29X19 INCH RADIATOR:

GM style Competition Row Radiator
The upper and lower outlets are set up for a Chevy engine.
100% Tig welded, No epoxy!
2 Row Radiator with 1" Tubes
Crossflow Design for better Cooling
Overall Size: 502 x 736 x 152mm (19.76" x 28.98" x 5.98")

Core Size: 458 x 606 x 56mm (18.03" x 23.86" x 2.20")

Inlet: 1-1/2"
Outlet: 1-3/4"
No Built in Transmission Cooler
No brackets included
Professional Installation is Highly Recommended
No Instruction Included

Package includes:

1X Aluminum Radiator (Includes Radiator Cap)
1X Radiator Cap
Just as pictures show

Fitment:

Universal for Chevrolet Chevy GM SBC BBC
