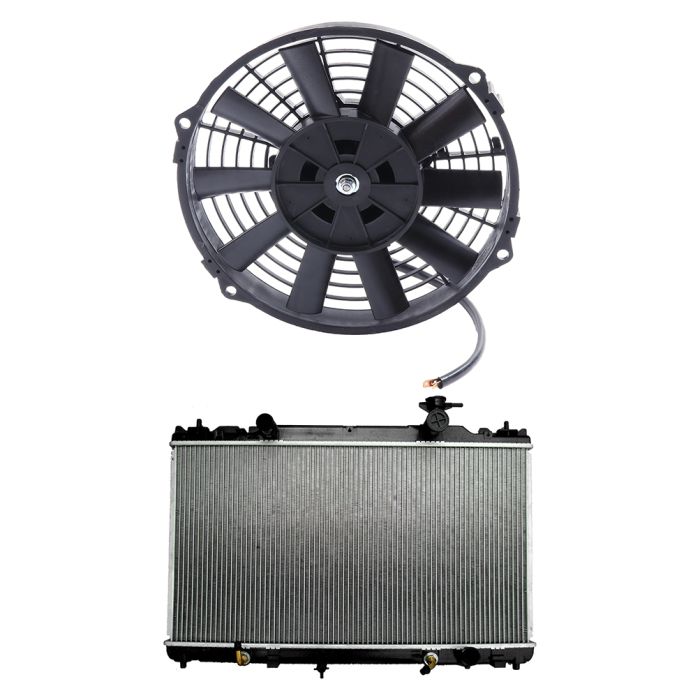

Fits 2002 2003-2006 Toyota Camry 2.4L Brand New Cooling Fan & 2437 Radiator Kit

  • Sale
  • Regular price $148.45
Shipping calculated at checkout.

*** Please Note: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Radiator Features
-OE design to ensure exact fit, form and function for an easy drop-in installation;

-Built with high density multi-lowered fins for maximum cooling efficiency;

-ISO 9001 certified manufacturing plants;

-Direct Replacement;

-Improve Cooling Efficiency;

-100% Leak Tested;

-Plastic tanks with aluminum core;

-Built to strict quality control standards;

Product Specifics
Placement on Vehicle: Front
Warranty: 1 Year
Manufacturer Part Number: E82182501CP
Product Type: Cooling Fan&Radiator
UPC: Does not apply
Brand: ECCPP
Fitment: Direct Replacement
Radiator Tank Material: Plastic
Radiator Core Material: Aluminum
Fan Height: 6.5CM
Fan Width: 25CM
Fan Length: 25CM
Fan Color: Black
Fan Blade: 10
Fan Plug Pin: 2
Radiator Height: 15-3/4 In.
Radiator Width: 29-1/16 In.
Radiator Thickness: 5/8 In.
Radiator Weight: 11.4bs
Interchange Part Number: 2437, TO3010256, 1640028270
Notes: Cooling Fan&Radiator will be shipped out separately
Notes: Cooling Fan&Radiator will be shipped out separately
How to clean radiator
1. Start the vehicle, to rise to normal temperature. Slowly open the tank cover, the fluid shake from the tank after filling the mouth, the cleaner can be mixed with any brand of coolant. Idle running not less than 15 minutes, not cleaning vehicles not less than 30 minutes for two years. And then discharge coolant, flush water tank, until out of clear water, suitable for any water cycle system.

2. After cleaning, after waiting for pipeline rehabilitation add fluid to water tank, and inject new coolant and water purification.

How to replace the radiator
1. Disconnect the battery.

2. Drain the radiator fluid into a suitable container.

3. Remove the old radiator
-Take off any plastic covers around the radiator.

-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.

-Disconnect the radiator hoses from the radiator.

-Disconnect the transmission cooling lines from the bottom of the radiator.

-Remove any clamps, brackets, or screws holding the radiator inside its frame.

-Lift the radiator up and out of the car.

4. Install the new radiator
-Slide the new radiator into place.

-Connect any clamps or brackets that hold the radiator in place.

-Connect the transmission cooling lines carefully.

-Connect the engine cooling hoses to the radiator.

-Replace the fan and fan shroud.

-Reconnect the fan electrical connection.

-Replace the plastic covers.

5. Fill the radiator with fluid.

6. Check your work to make sure that there are no leaks.

(Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)

Do please keep children and pets away when replacing the radiator)

Cooling Fan Note
The radiator cooling fan is an integral part of your car that is responsible for cooling the radiator of your car. The radiator cooling fan does this by either pulling or pushing air into the radiator keeping the radiator temperatures within the safe levels. A damaged radiator cooling fan is a determining factor in preventing your car from overheating. Below are the materials that you need along with the instructions on how to replace a radiator cooling fan.

Step 1: Locate the Radiator Cooling Fan

Locating the radiator cooling fan is the first step in replacing it. Turn off your car and allow it to cool off. Open the hood of your car and you will be able to see the radiator that is located at the back of the grill at the front portion of your engine compartment. The radiator cooling fan is attached at the back of the radiator through a mounting frame. Under the engine and the radiator is a sticking cylinder that is encased in a small casing. That is the radiator cooling fan motor that you may need to change or repair other than the radiator cooling fan itself.

Step 2: Disconnect the Power Supply

On the fan motor is an electric cable running towards the engine. Find the connector of the wires from your engine and from your radiator fan motor and disconnect it. Using two masking tapes with different colors, note the connection of the wires so that you will not have a hard time reconnecting the wires later.

Step 3: Remove the Fan Housing

Using a crescent wrench, remove the four screws located at each corner of the fan housing. Remove the fasteners at the sides of the fan housing as well. A radiator cooling fan housing is relatively large and you may need to remove all the obstructions like hoses and wirings so that you can extract the fan housing off your car hood. Hold the housing firmly and lift it off your engine compartment. Be careful in removing the fan housing to avoid damaging it. Place the fan housing on a clutter-free working table.

Step 4: Remove the Radiator Cooling Fan and the Fan Motor

The fan blade is either pinned or screwed to a shaft. With a screwdriver, loosen the fan blade and slide if off its shaft. You may need to remove a keeper that prevents the fan blades from moving up in the shaft up and down. As to the fan motor itself, remove it from the fan housing using a screwdriver.

Step 5: Attach the Replacement Radiator Cooling Fan and Fan Motor

Install the new fan motor into the fan housing. Slide your replacement radiator cooling fan into the shaft, insert the keeper and secure the new cooling fan and keeper into place. Return the fan housing back into its proper place and secure the screws and the fasteners. Reattach the hoses and wires you removed in step 3. Connect the fan motor into the car electrical system using the electrical tape guide you made in step 2. You just learned how to replace your radiator cooling fan as well as your radiator cooling fan motor.
