Engine Rebuild Kit (w/ Sensor Port) Fit 1996 Toyota Camry 2.2 DOHC 5SFE. Designed using state-of-the-art technology and with customers in mind. This product is made of high-quality materials to serve you for years to come. It will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1996-12/01/1996 TOYOTA CAMRY 2.2L 2164CC L4 DOHC, (16 VALVE), ENG CODE "5SFE"

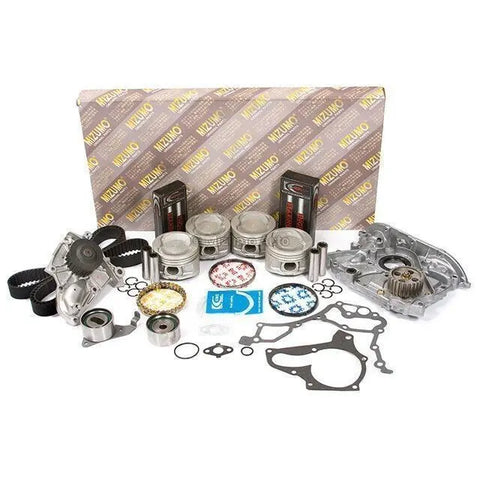

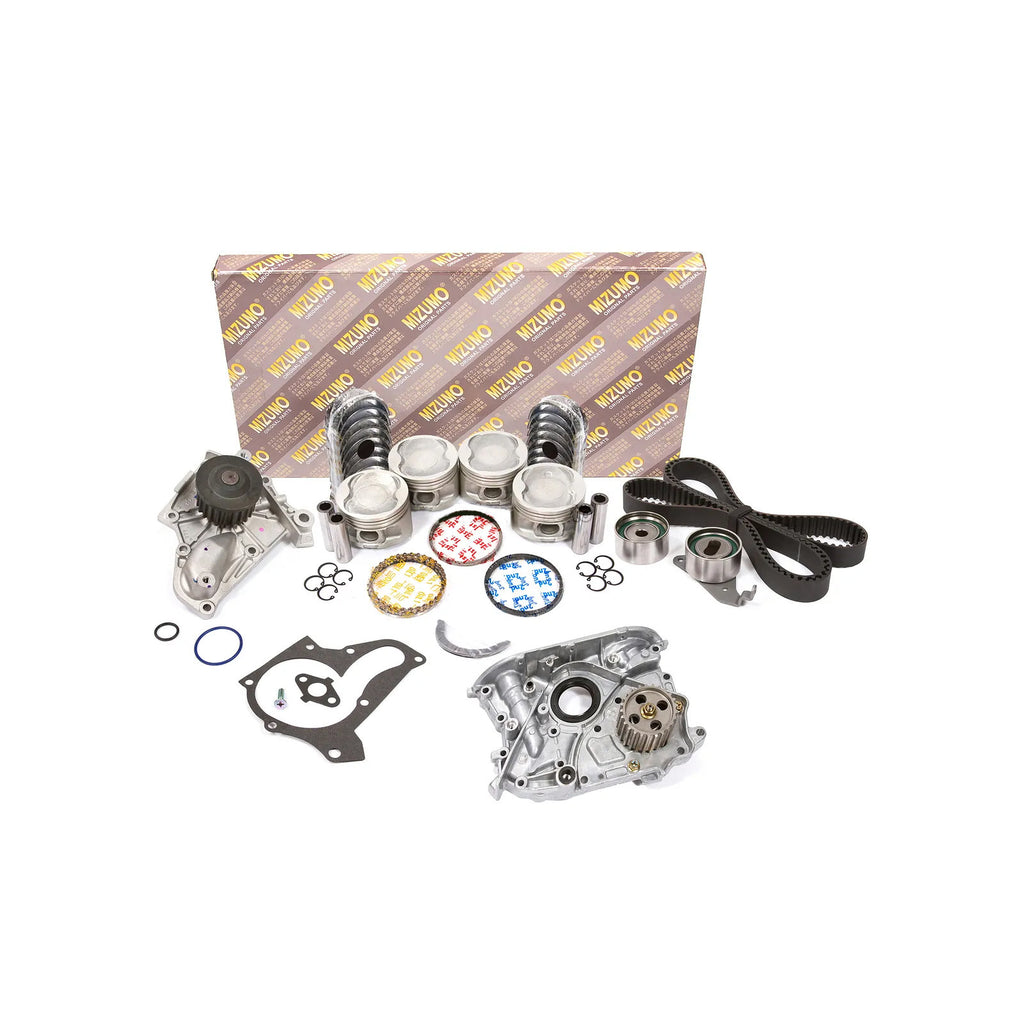

This item includes:
Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (STD - Standard Size, or Oversized 0.50mm = 0.020")
Standard Bore Diameter: 87.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 4.00mm
4 Piston Wrist Pins
8 Cir Clips
King Main Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
King Rod Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
Thrust Washer
1 Timing Belt (163 teeth)
1 GMB Roller Tensioner Bearing
1 GMB Idler Bearing
Water Pump w/ Gasket
Oil Pump (w/ Sensor Port)
