Engine Rebuild Kit Fit Suzuki XL-7 Grand Vitara 2.7L DOHC H27A

Engine Rebuild Kit Fit Suzuki XL-7 Grand Vitara 2.7L DOHC H27A. Designed using
state-of-the-art technology and with customers in mind. This product is made
of high-quality materials to serve you for years to come. It will meet your
needs and deliver great quality at an affordable cost. Replace Part :
12100-66810-0A0

Engine Rebuild Kit Fit Suzuki XL-7 Grand Vitara 2.7L DOHC H27A. Designed using
state-of-the-art technology and with customers in mind. This product is made
of high-quality materials to serve you for years to come. It will meet your
needs and deliver great quality at an affordable cost.

Fits Following Models:
2001 SUZUKI GRAND VITARA 2.7L 2737CC V6 DOHC, (24 VALVE), ENG CODE "H27A"
2002-2006 SUZUKI XL-7 2.7L 2700CC V6 DOHC, (24 VALVE), ENG CODE "H27A"

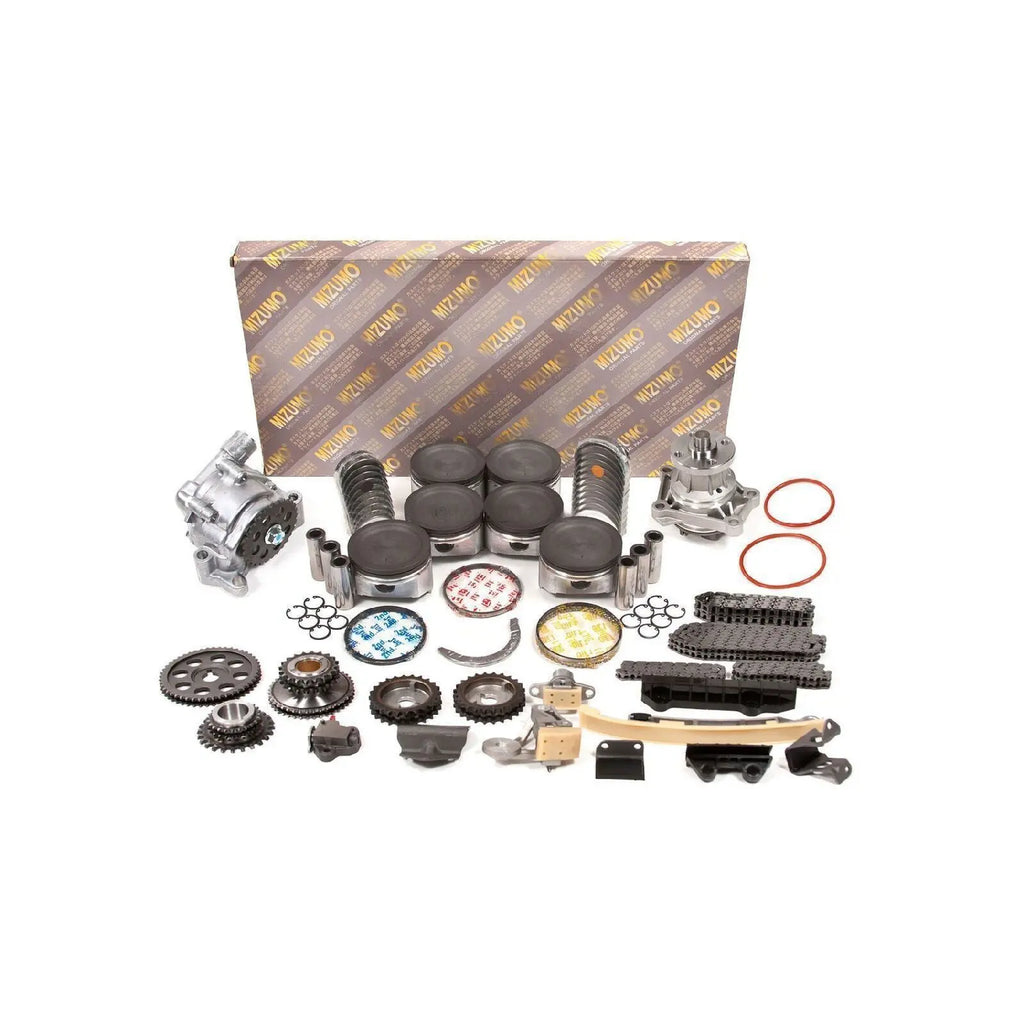

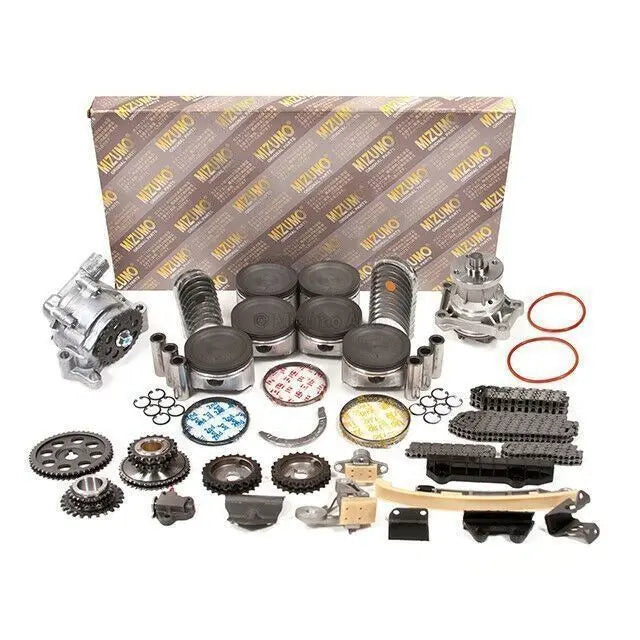

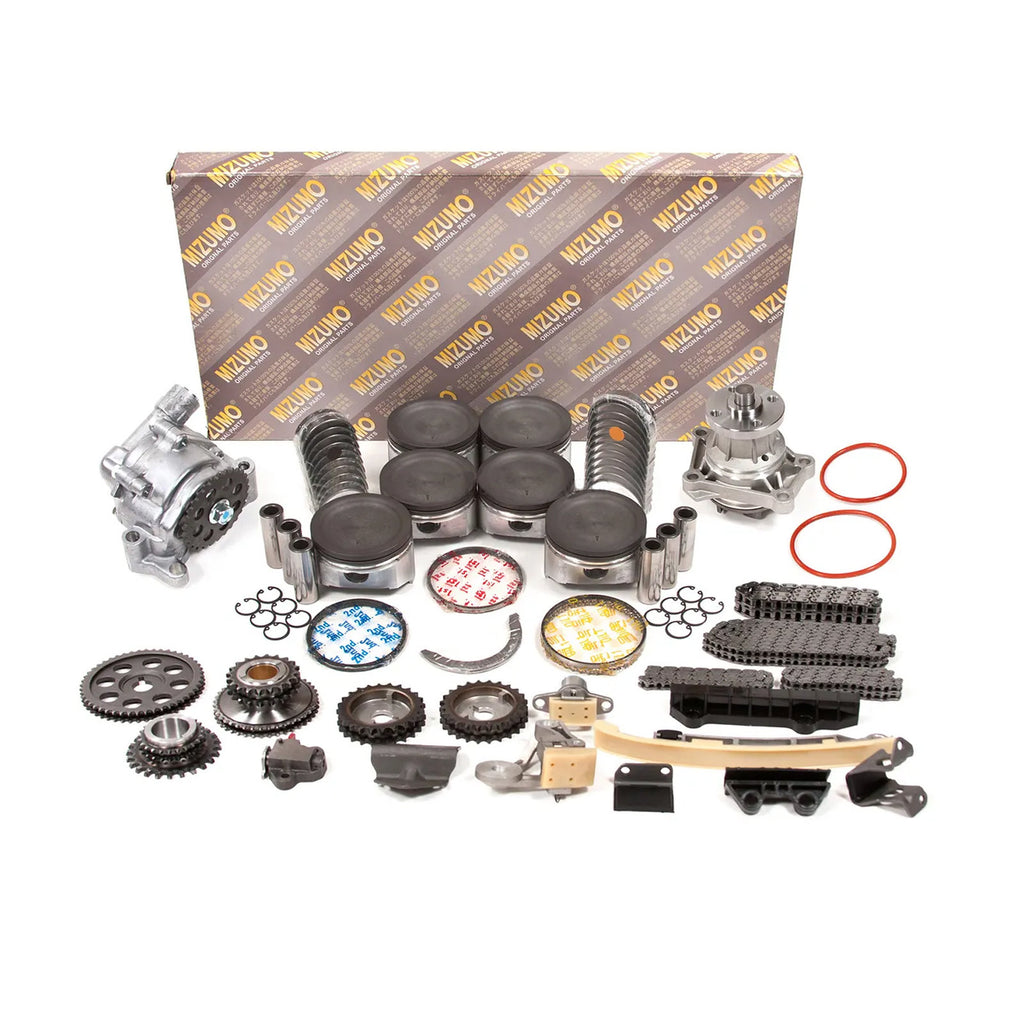

This item includes:

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
6 Pistons with Complete Ring Set (Sizes available: see option above)
Standard Bore Diameter: 88.00mm
1st Group: 1.20mm
2nd Group: 1.50mm
Oil Ring: 2.80mm
6 Piston Wrist Pins
12 Cir Clips
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)
Thrust Washer
1 Timing Chain (crankshaft to idler)
1 Timing Chain (idler to cams)
1 Timing Chain (cam to cam)
1 Tensioner Upper (left - camshaft chain)
1 Tensioner Upper (right - camshaft chain)
1 Tensioner Lower (for crank to idler chain)
1 Guide Rail (curved - right side idler chain)
1 Guide Rail (straight - left side)
4 Guide Rail
1 Cam Sprocket (48 teeth right outer)
2 Cam Sprocket (24 teeth left)
1 Idler Sprocket (20-40 teeth dual - upper left)
1 Crank Sprocket (24 teeth - cam drive)
1 Oil Pump Chain (64 link)
1 Idler Sprocket (19 teeth) - is not included in this kit
Oil Pump Guide, and Oil Pump Sprocket - are not included
Water Pump w/ Gasket
Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add
Message to Seller" box that eBay provided when you go to check out. Click the
SAVE button in order for your note to be saved, and double check to make sure
your note is lodged with your payment. For other oversizes please contact us
for special order.
