Engine Rebuild Kit Fit 98-04 Nissan Frontier Xterra KA24DE . Designed using state-of-the-art technology and with customers in mind. This product is made of high-quality materials to serve you for years to come. It will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
1998-2004 NISSAN FRONTIER 2.4L 2389CC L4 DOHC, (16 VALVE), ENG CODE "KA24DE"
2001-2004 NISSAN XTERRA 2.4L 2389CC L4 DOHC, (16 VALVE), ENG CODE "KA24DE"

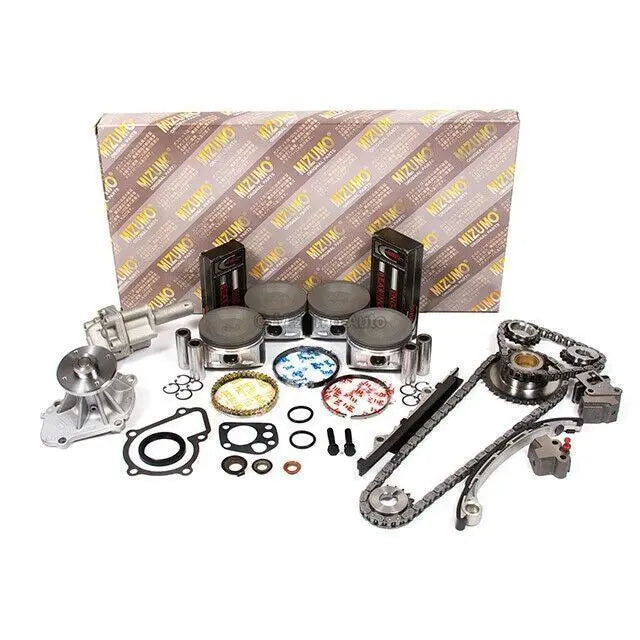

This item includes:
Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)
4 Pistons with Complete Ring Set (STD - Standard Size, or Oversized 0.50mm = 0.020")
Standard Bore Diameter: 89.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 2.80mm
4 Piston Wrist Pins
8 Cir Clips
King Main Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
King Rod Bearing Set (STD - Standard Size, or Undersize 0.25mm = 0.010", 0.50mm = 0.020")
1 Timing Chain upper (cam chain single row)
1 Timing Chain lower (crank to idler - 92 link)
1 Tensioner upper (for upper - cam chain)
1 Tensioner lower (for lower chain)
1 Guide Rail lower (left side straight)
1 Guide Rail lower (right tensioning rail)
2 Cam Sprockets (cam sprocket - 2 req)
1 Crank Sprocket (18 teeth)
1 Idler Sprocket (36 & 19 teeth sprocket)
Water Pump w/ Gasket
Oil Pump
